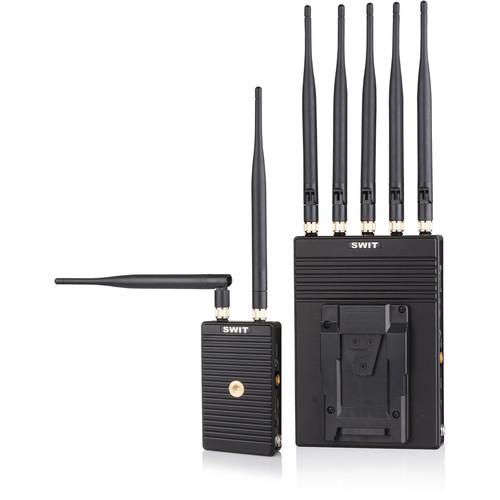

User Manual for SWIT S-4914T R SDI HDMI Wireless Transmission System with Sony BP-U Series Battery Mount Transmitter & Gold Mount Receiver Units Click to enlarge the picture
Contents of the user manual for the SWIT S-4914T R SDI HDMI Wireless
- Product category: Wireless Transmission Systems SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Wireless Transmission Systems
|
User manual for the SWIT S-4914T R SDI HDMI Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description The S-4914T/R SDI/HDMI Wireless Transmission System from SWIT includes one S-4914T transmitter unit with Sony BP-U series battery plate and one S-4914R Gold mount-type receiver unit. This system is suitable for television, sports, film, and other professional fields. It uses WHDI (MIMO/OFDM) technology and supports uncompressed 3G/HD/SD-SDI and HDMI video and audio signal transmission up to 2,296' with less than 1 ms latency. This system supports 1080p video signals up to 60 fps and operates on a license-free frequency range of 5.1 to 5.9 GHz. The frequency bands are user configurable and support up to four wireless channels in one location. The system also supports multicast function allowing you to use one transmitter with multiple receivers. Both the transmitter and receiver units can be powered via pole DC input of 6.5 to 17V. - Professional WHDI (MIMO/OFDM) technology
- Uncompressed 3G/HD/SD-SDI and HDMI wireless transmission
- 2-channel SDI/HDMI embedded audio transmission
- Transmission up to 2,296' (line-of-sight) with less than 1 ms latency
- 5.1 to 5.9 GHz license-free operation frequency
- User configurable frequency bands
- Multicast support—use one transmitter with multiple receivers
- Less than 63mW radio power
- Mini transmitter designed for HDV camcorder
- Transmitter unit comes with a Sony BP-U series battery mount
- Receiver unit comes with a Gold mount
- Durable, all-metal housing
In the Box SWIT S-4914T/R SDI/HDMI Wireless Transmission System with Sony BP-U Series Battery Mount Transmitter & Gold Mount Receiver Units (2,296') S-4914TU Transmitter with Sony BP-U Series Battery Plate S-4914RA Receiver with Gold Mount-Type Plate 7 x Antenna Articulating Arm Trestle Crab Clamp D-Tap to 5.5/2.1mm Pole Cable 5.5/2.1mm Pole Power Adapter Flat Screwdriver for Band Configuration Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4914T R SDI HDMI Wireless Transmission System with Sony BP-U Series Battery Mount Transmitter & Gold Mount Receiver Units in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4914 TU/S-4914RA Specs | Input | Transmitter:
1 x 3G / HD / SD-SDI
1 x HDMI
Note: If both SDI and HDMI are being input to transmitter, the receiver will give priority to SDI output. | | Output | Receiver:
1 x 3G / HD / SD-SDI
1 x HDMI
Note: The receiver offers simultaneous SDI and HDMI outputs. | | Signal Format | SDI:
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i / 576i | | Wireless Frequency | 5.1 to 5.9 GHz | | Radio | Radio Modules: OFDM 16QAM
Radio Power (Transmitter): 21 dBm (63 mW), maximum | | Maximum Transmission Distance | 2,296' (700 m), line-of-sight | | Latency | ≤1 ms | | Input Voltage | DC / Battery: 6.5 to 17 V for both transmitter and receiver | | Power Consumption | ≤6.5 W for both transmitter and receiver | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | Transmitter: 2.8 x 4.7 x 1.5" (71 x 120 x 37 mm)
Receiver: 5.1 x 7.4 x 1.9" (130 x 188 x 47 mm) | | Weight | Transmitter: 10.6 oz (300 g) with antenna
Receiver: 28.1 oz (797 g) with antenna | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 17.1 x 14.0 x 5.1" |
