User Manual for SWIT S-8D58 DV Battery for Panasonic AJ-PX270, AJ-PX285, and AJ-PX295 Handheld Cameras Click to enlarge the picture
Contents of the user manual for the SWIT S-8D58 DV Battery for Panasonic
- Product category: On Camera Batteries SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Batteries
 |
User manual for the SWIT S-8D58 DV Battery for Panasonic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

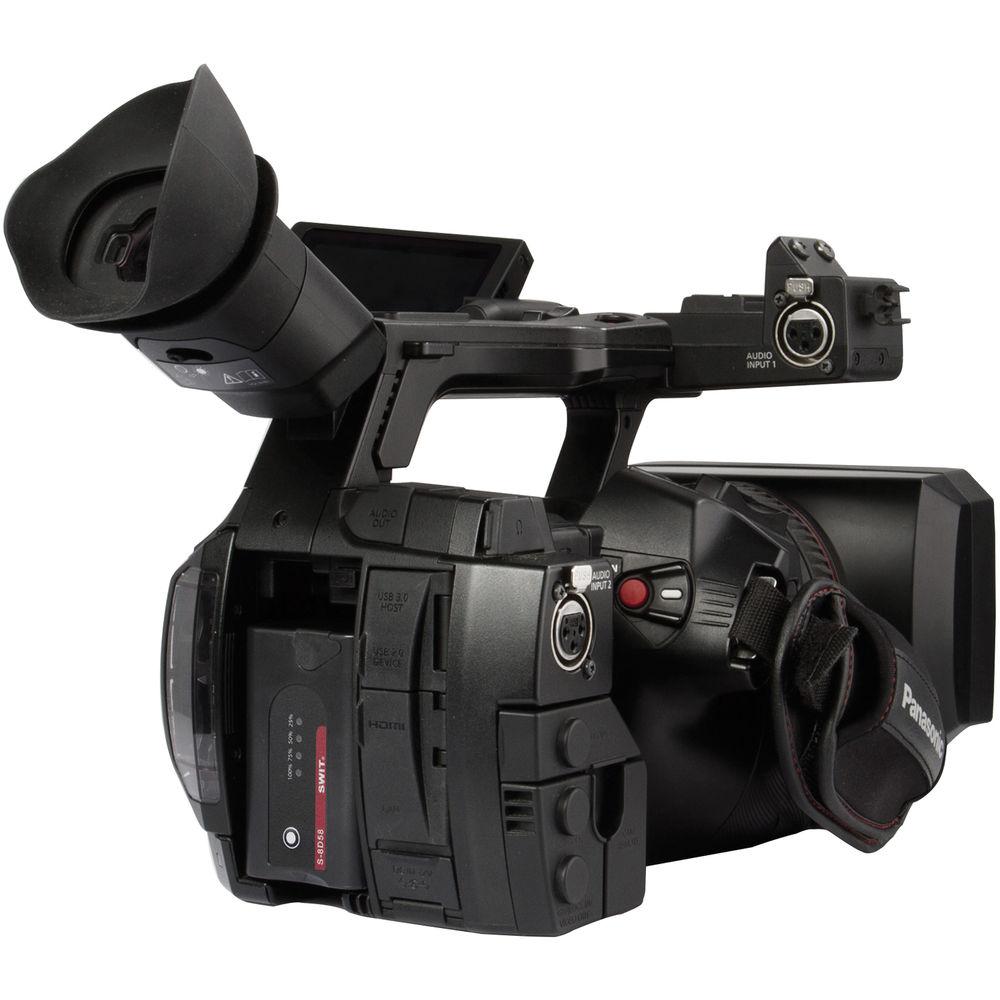

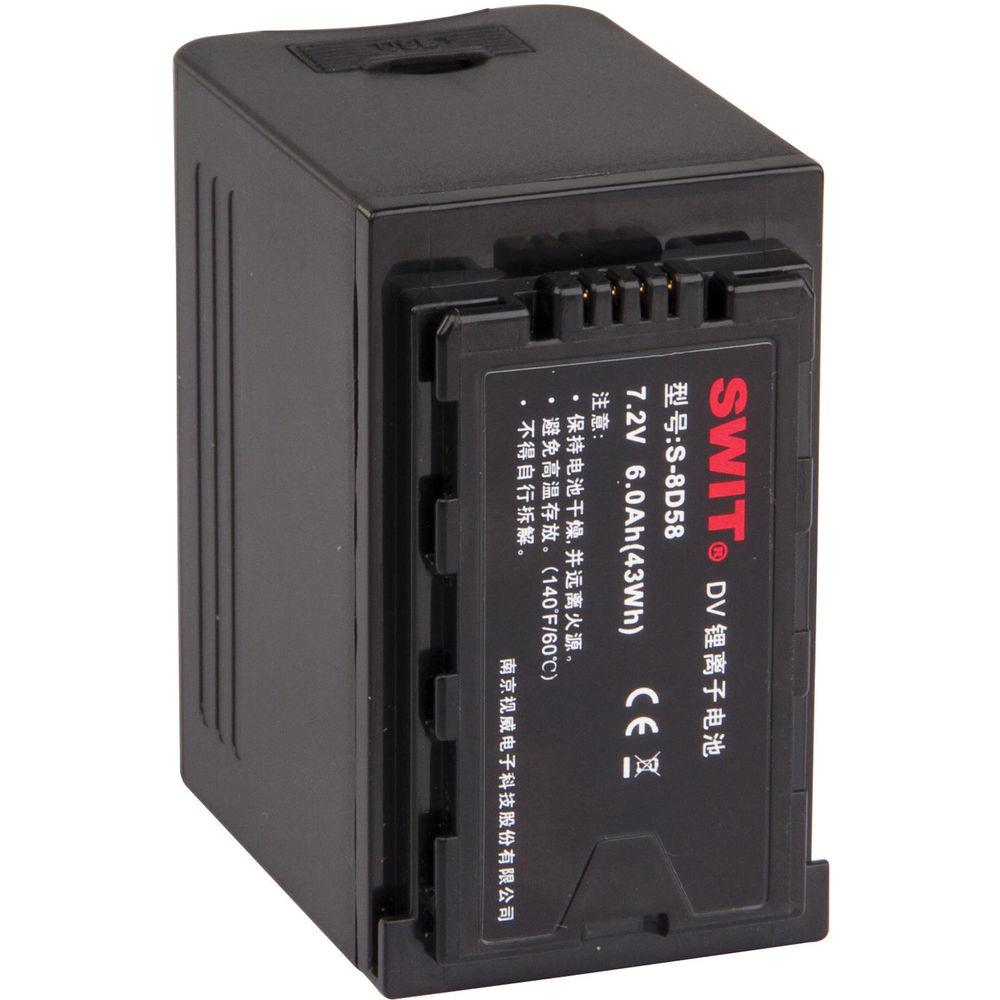

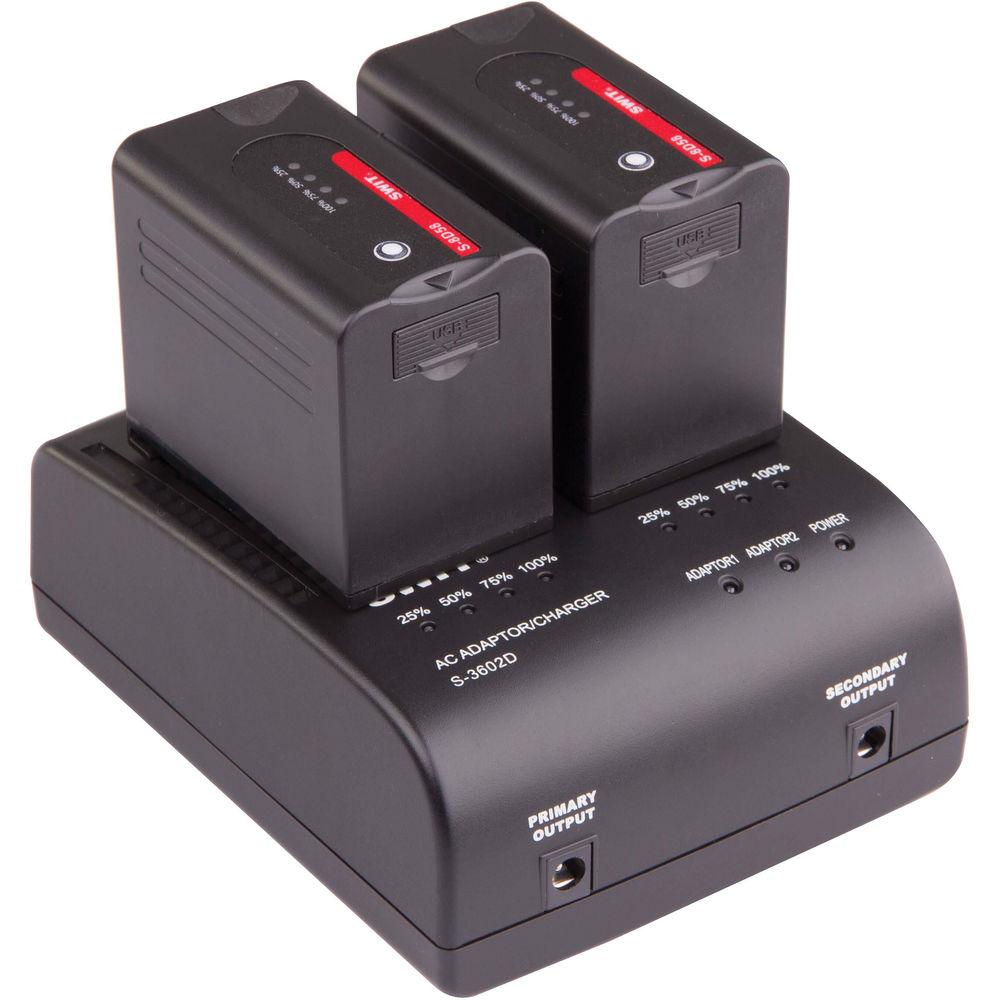

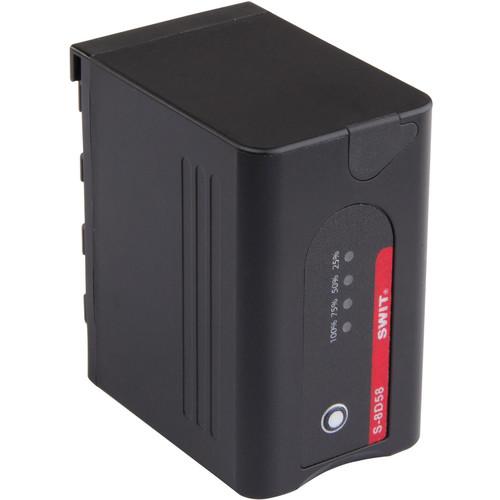

Product description The S-8D58 DV Battery from SWIT is a replacement battery for Panasonic's VW-VBD58 battery. It is compatible with Panasonic's P2 HD camcorders like AJ-PX270, AJ-PX285, and AJ-PX298. S-8D58 features a 5.5/2.1mm pole-tap DC output socket for 7.2 VDC (nominal) connection. Using this socket, you can connect an on-camera LED light, monitor, or wireless transmitter and get power from the camera. It also features a 5V/1A USB socket which can be used charging devices like a cell phone. S-8D58 can be charged using Panasonic's original DE-A88 charger. It can also be charged using SWIT's S-3602D charger. Using these, it takes around 4 hours to completely charge the battery. S-8D58 can also be charged using SWIT's S-3010D portable pole-tap charger, though it will take 7 hours to reach a full charge. - Li-ion battery of 7.2V nominal
- For use with Panasonic AJ-PX270 / 285 / 298
- Replacement for Panasonic VW-VBD58
- Can be charged by Panasonic DE-A88 or SWIT S-3602D
- 4-level LED power indicator
- 5V/1A USB charging output
- Multiple circuit protections
In the Box SWIT S-8D58 DV Battery for Panasonic AJ-PX270, AJ-PX285, and AJ-PX295 Handheld Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-8D58 DV Battery for Panasonic AJ-PX270, AJ-PX285, and AJ-PX295 Handheld Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-8D58 Specs | Mount / Series Type | Panasonic VW-VBD Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 43 Wh | | Amp-Hours | 6000 mAh | | Output Voltage | 7.2 VDC | | Accessory Port | 1 x Mini Jack | | Maximum Load (Accessory Port) | 30 W, 4 A | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 1.6 x 2.8 x 2.5" / 41.0 x 70.0 x 64.0 mm | | Weight | 8 oz / 226 g | | | | Package Weight | 0.585 lb | | Box Dimensions (LxWxH) | 3.2 x 3.15 x 1.85" |
Rating100% users recommend this product to others. And what about you?
