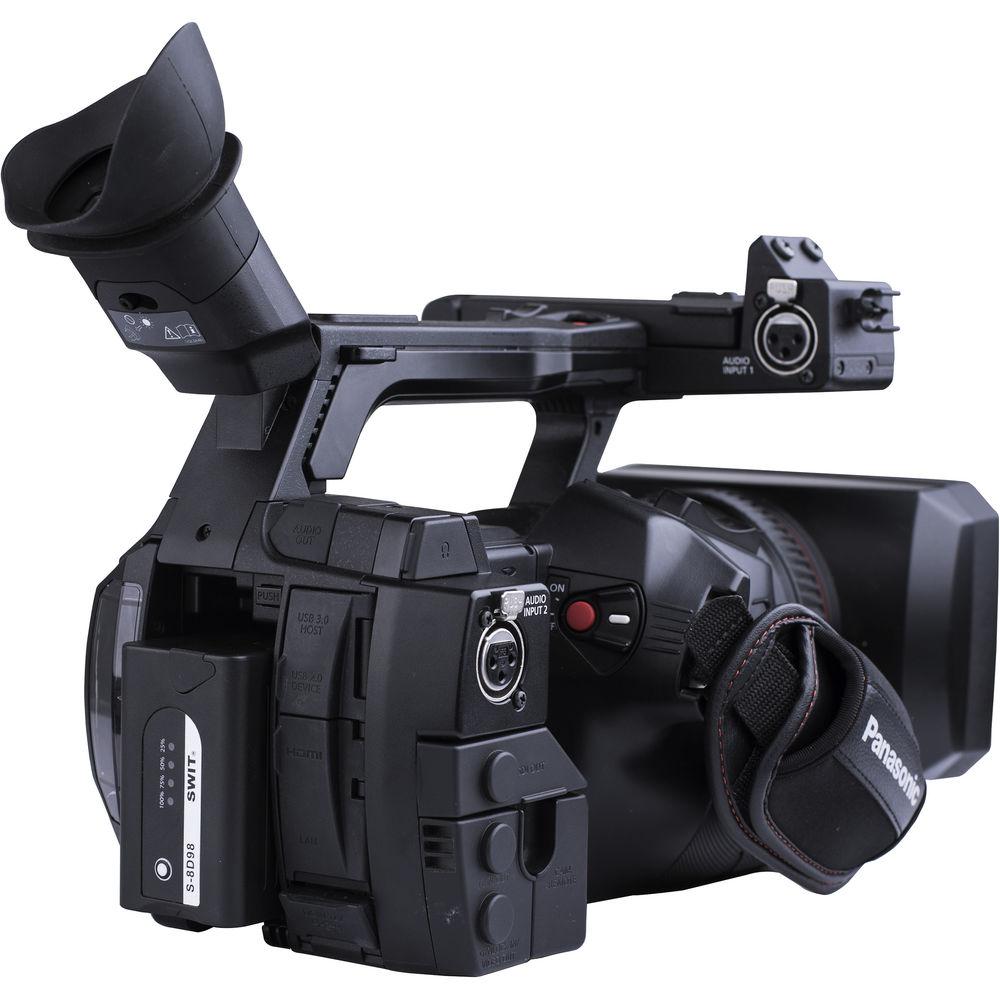

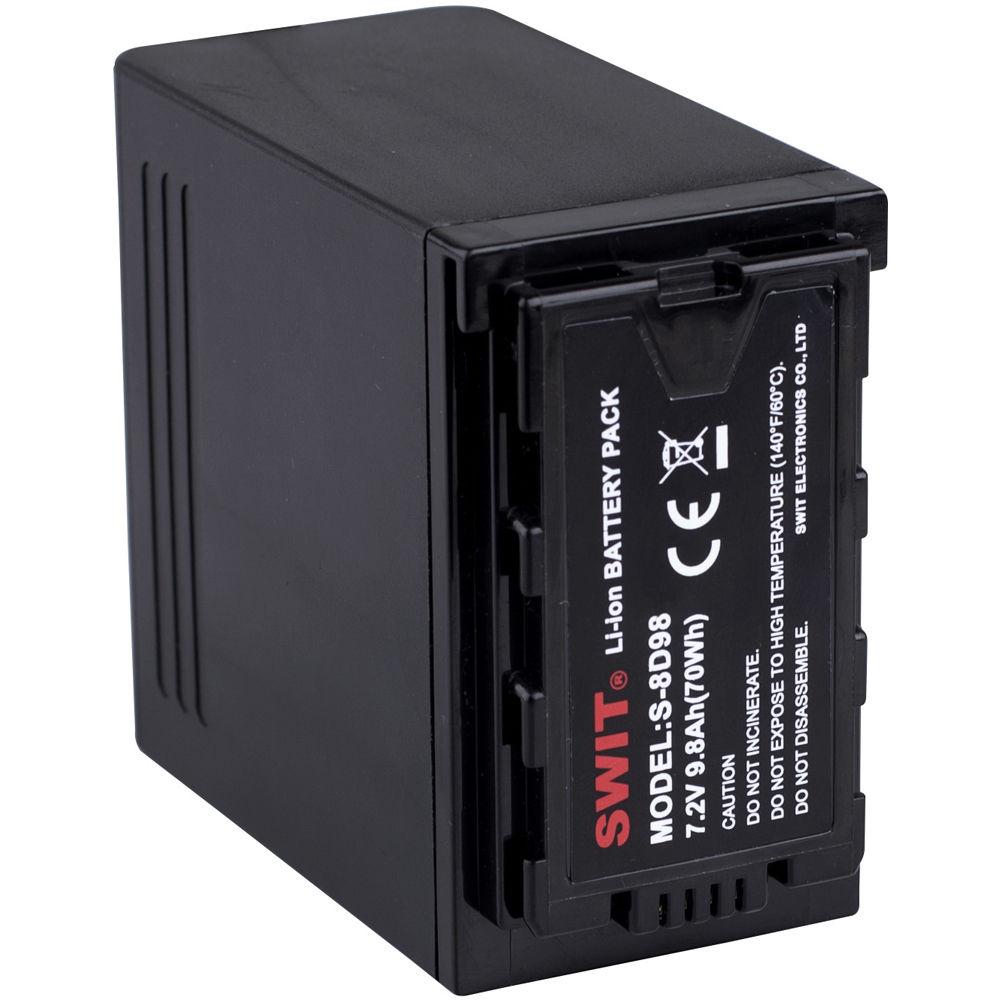

Product description The S-8D98 Li-Ion Battery from SWIT is designed for use with the Panasonic 4K Camcorder AG-DVX200 and P2HD Camcorder AJ-PX270/285. With 7.2V nominal voltage, the S-8D98 has 70Wh / 9800mAh capacity, and can run for approximately 3 hours on AJ-PX270 series camcorders with the LCD monitor on. It comes with a built-in 7.2 VDC pole-tap output to power the camera and other on-camera devices simultaneously.
The maximum power from the pole-tap is 30W 4A, and it can also be used as a charging input. The S-8D98 battery has a 4-level LED power indicator to check the battery remaining capacity, so you can get a quick view of its capacity before use. The S-8D98 can be charged on a Panasonic DE-A88 charger (sold separately), and will take about 6 hours to fully charge. - For Panasonic AG-DVX200 & AJ-PX270/285
- Li-ion battery of 7.2V nominal voltage

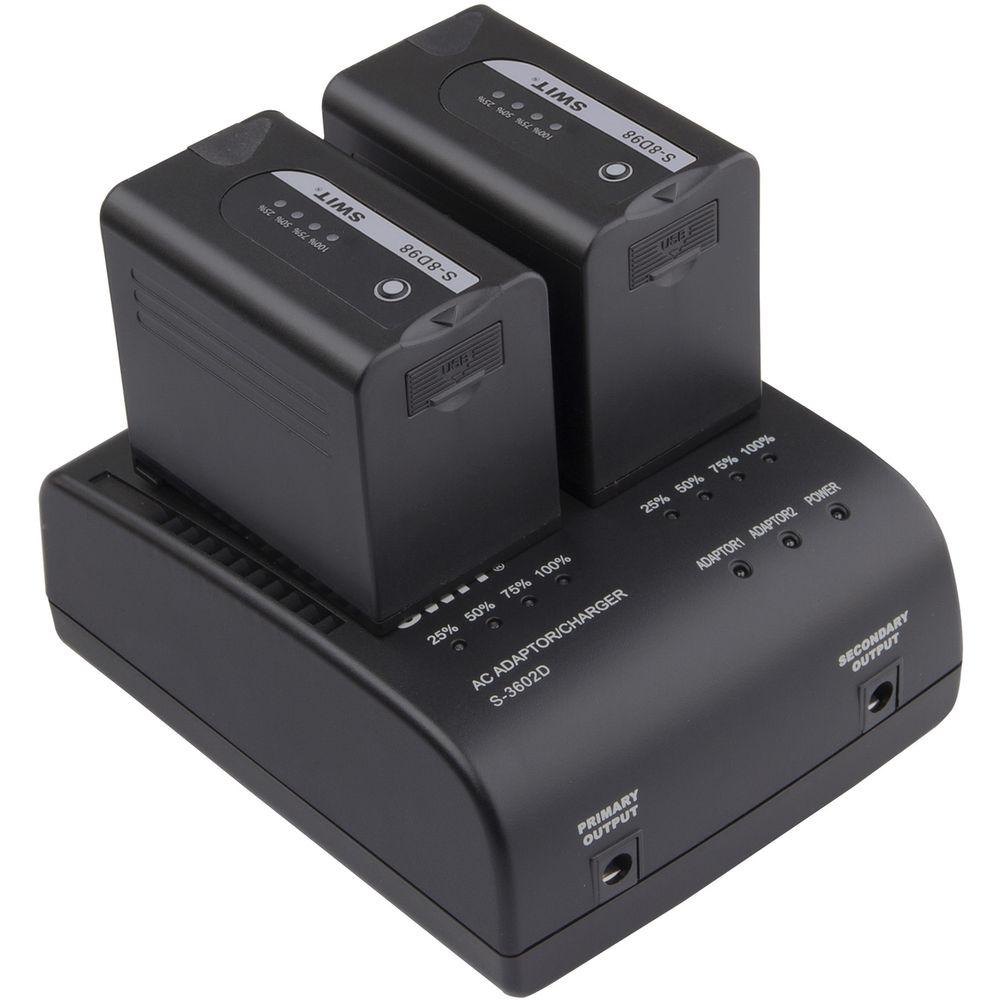

- Can be charged by Panasonic DE-A88 and SWIT S-3602D (sold separately)

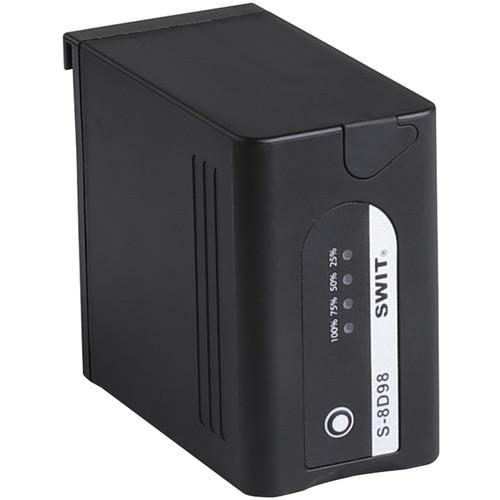

- 4-level LED power indicator
- 5V/1A USB charging output
- Multiple circuit protections
In the Box SWIT S-8D98 Li-Ion Battery for Panasonic DVX200/PX270 DV Camcorder Battery Pack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-8D98 Li-Ion Battery for Panasonic DVX200 PX270 DV Camcorder Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-8D98 Specs | Nominal Voltage | 7.2 V | | Capacity | 70 Wh, 9800 mAh | | Max Output Power | Total: 30 W, 4 A
Pins: 25 W, 3.5 A
Pole-Tap: 30 W, 4 A
USB: 5 W (5 V / 1 A) | | Camera Compatibility | Panasonic AG-DVX200
Panasonic AJ-PX270
Panasonic AJ-PX285 | | Dimensions | 1.6 x 2.8 x 3.3" (41 x 70 x 83 mm) | | Weight | Approximately 12 oz (337 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 3.6 x 3.2 x 2.0" |
