User Manual for SWIT S-8U65 Camcorder Battery for BP-U Series Click to enlarge the picture
Contents of the user manual for the SWIT S-8U65 Camcorder Battery for BP-U
- Product category: On Camera Batteries SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Batteries
 |
User manual for the SWIT S-8U65 Camcorder Battery for BP-U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

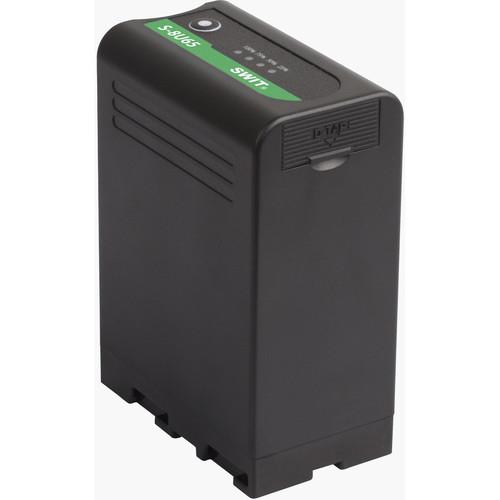

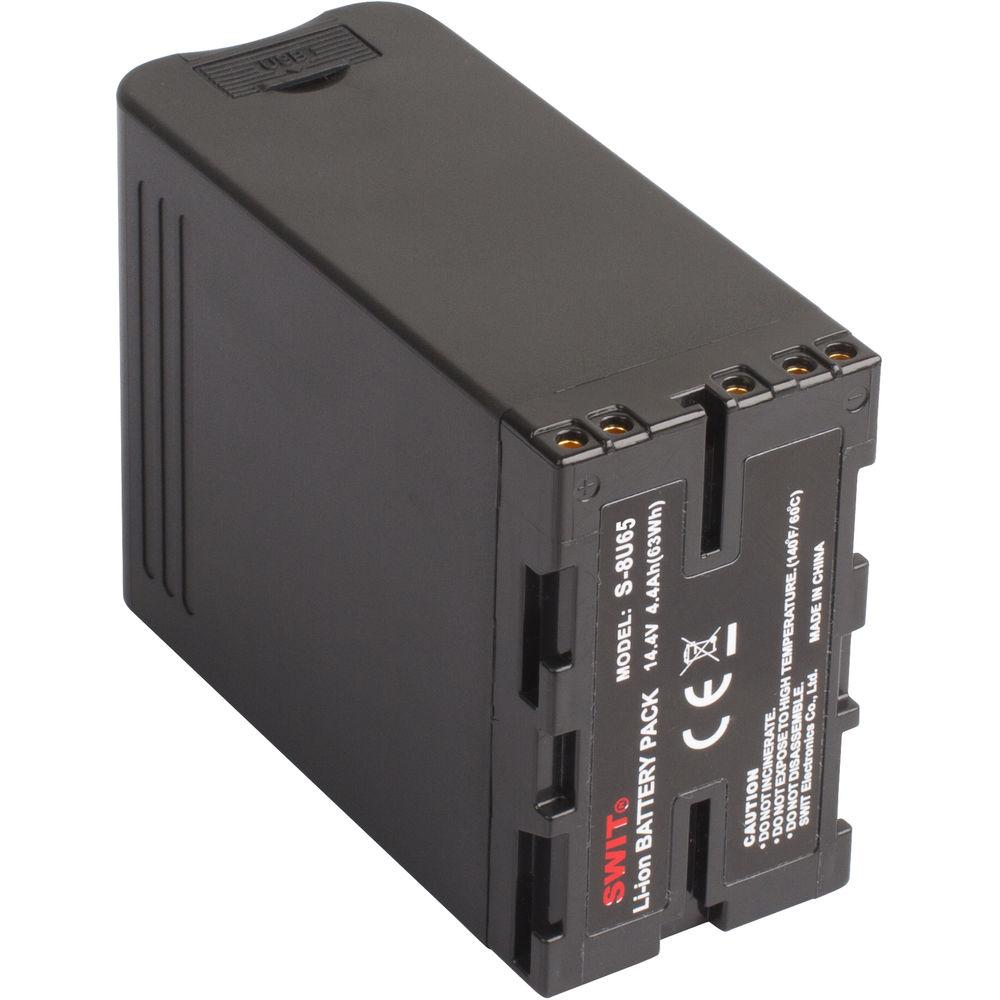

Product description The SWIT S-8U65 Camcorder Battery for BP-U Series is compatible with Sony's PMW-EX1/EX3/F3/100/200/300, PXW-X160/180/200, PXW-FS7/FS5/, and PXW-Z190/Z280 cameras. This 14.4-volt battery packs 63Wh into a compact form with a 4.4Ah capacity. It supports a total draw of 50W at 3.5A and it is capable of sustaining a 50W draw via the battery pins or D-Tap accessory port. The built-in USB port delivers 5 volts with a 5W, 1A draw suitable for charging your smartphone.

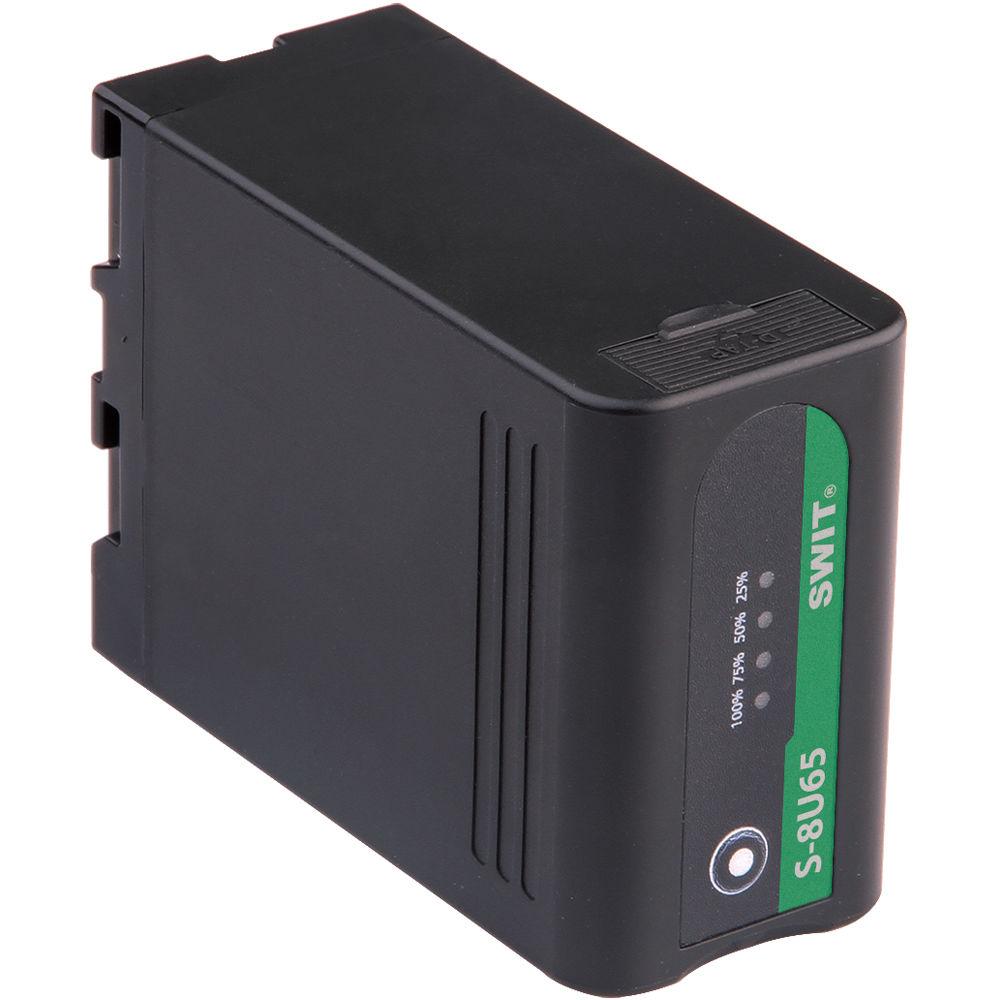

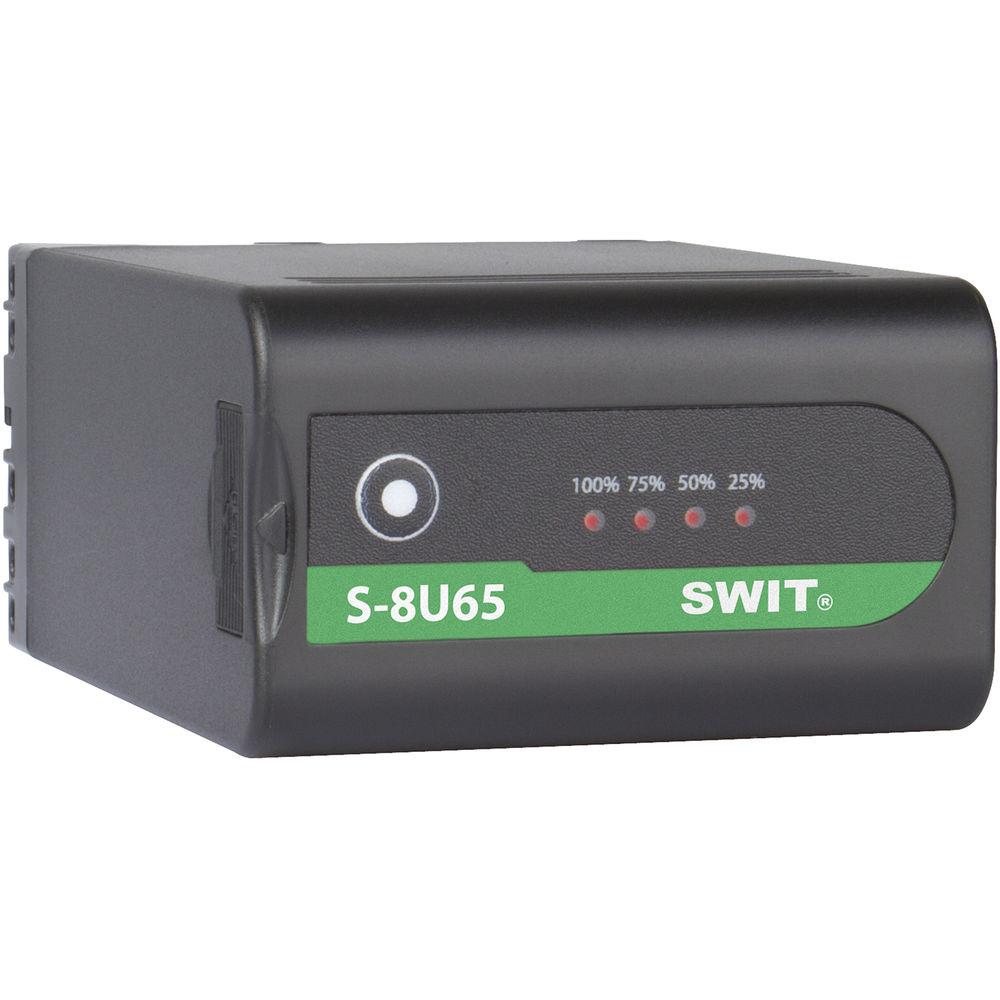

The battery communicates and exchanges data with your camera, enabling the camera to display the remaining battery life in the viewfinder. Built into the battery is a four LED battery gauge with a "Check" button that you press to display the remaining charge capacity. The battery can be charged via the D-Tap port, SWIT Dual channel charger, or Sony's BC-U1 charger. - Following the form and pin configuration of the Sony BP-U series, the S-8U65 is a suitable replacement for the Sony BPU-60.
- It features flexible charging options of D-Tap and dedicated BP-U series chargers (not included).

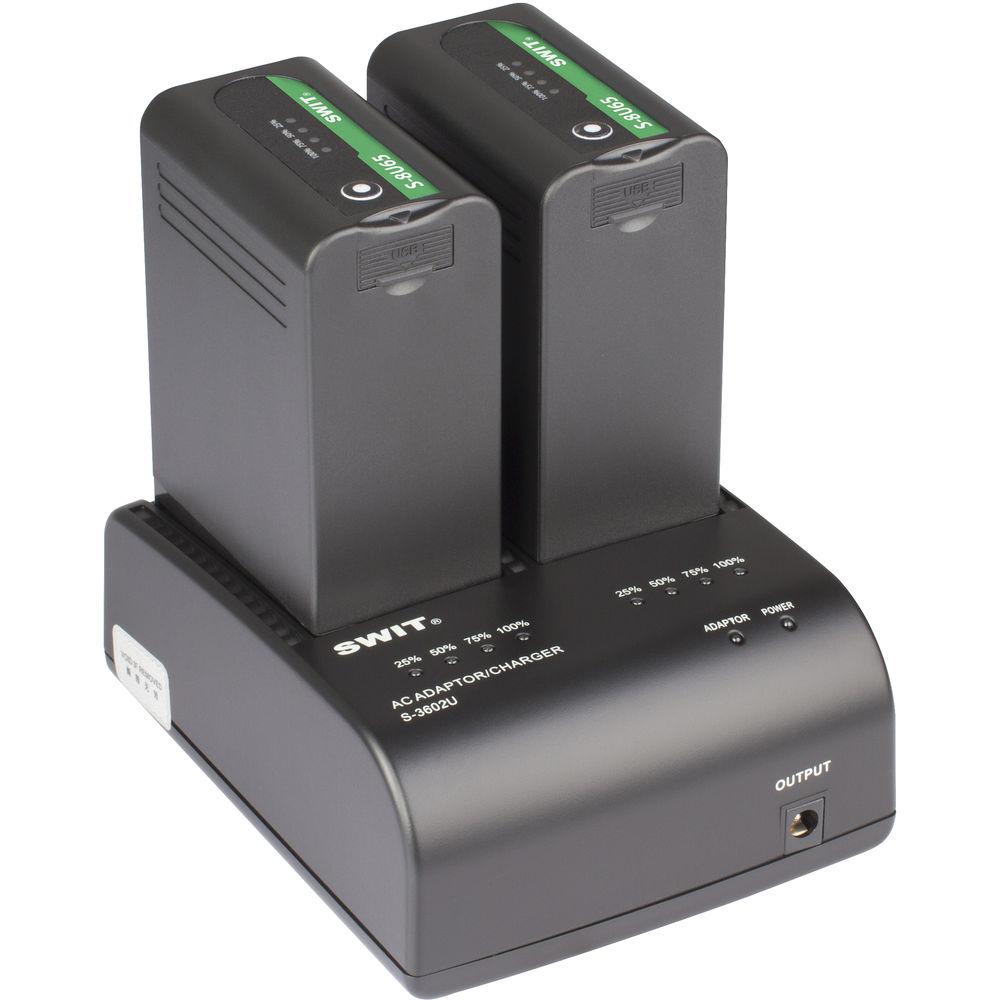

- You can charge the battery using the Sony BC-U1 single bay charger or the SWIT S-3602U, and it takes under three hours to reach full charge.

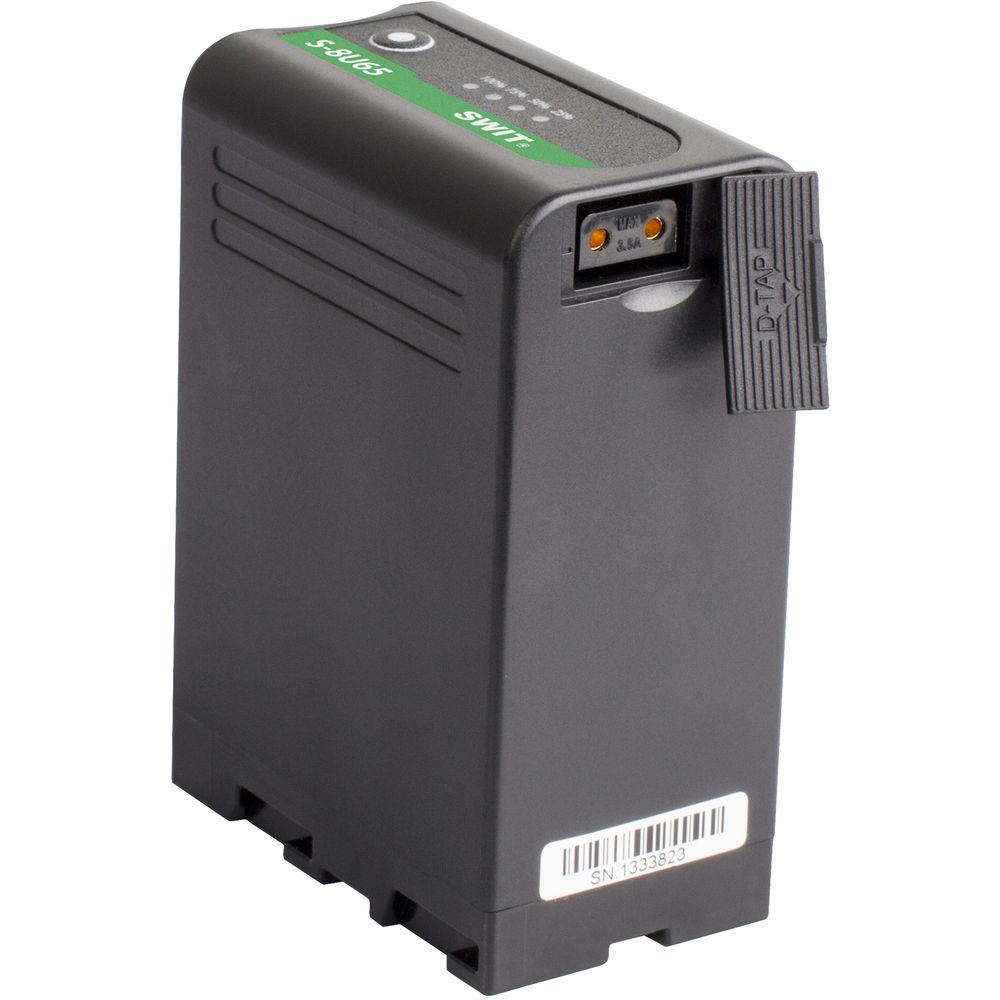

- D-Tap charging requires SWIT's S-3010B portable D-Tap charger, and it takes three hours for a complete charge.

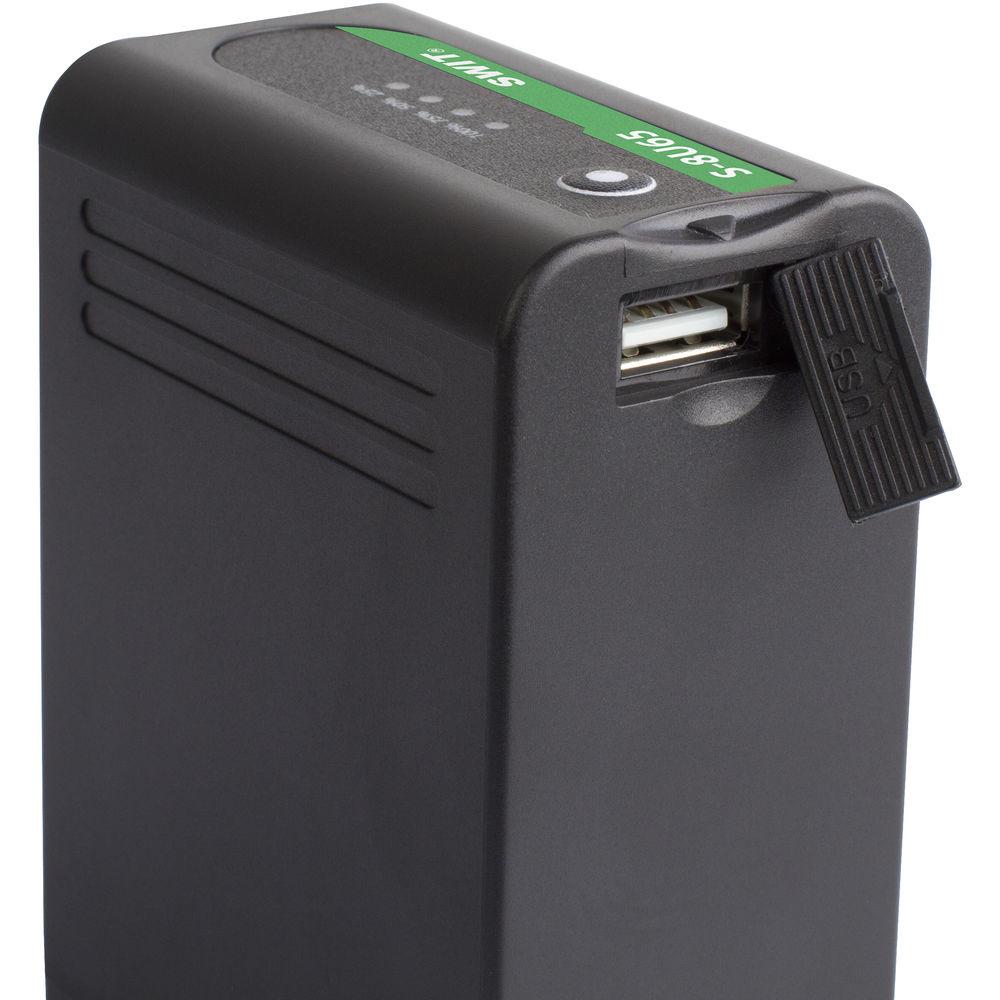

- You can charge your smartphone or other mobile device via the USB port, just connect your device the battery's USB port and press the "Check" button to start charging your device.
In the Box SWIT S-8U65 Camcorder Battery for BP-U Series (63Wh) Limited 1-Year Warranty User Manual PDF 967.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-8U65 Camcorder Battery for BP-U Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-8U65 Specs | Mount / Series Type | Sony BP-U Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 63 Wh | | Amp-Hours | 4.4 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 50 W, 3.5 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 50 W, 3.5 A ( D-Tap )
5 W, 1 A ( USB ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 2.8 x 1.7 x 3.8" / 70.0 x 42.0 x 96.0 mm | | Weight | 14.2 oz / 403 g | | | | Package Weight | 0.96 lb | | Box Dimensions (LxWxH) | 4.3 x 3.05 x 1.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
