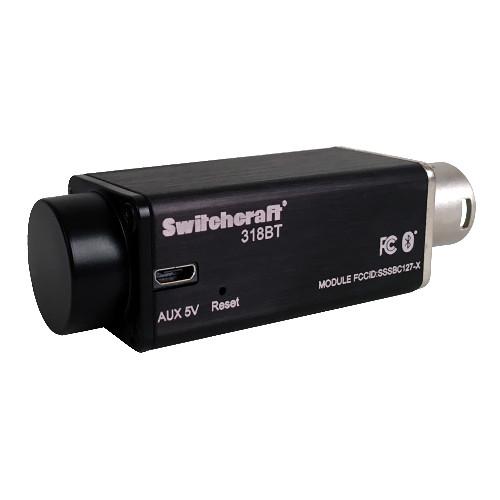

User Manual for Switchcraft 318BT Phantom-Powered Bluetooth Audio Receiver Click to enlarge the picture
Contents of the user manual for the Switchcraft 318BT Phantom-Powered Bluetooth Audio Receiver
- Product category: In-Line Mic Accessories Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft In-Line Mic Accessories
|
User manual for the Switchcraft 318BT Phantom-Powered Bluetooth Audio Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|
Product description The 318BT from Switchcraft is a small, in-line wireless audio receiver that makes it quick and simple to pair mobile devices to your audio gear. It utilizes 4.0 Bluetooth technology to stream audio from any Bluetooth-enabled device straight to your mixer or audio console with low latency, and at a distance up to 100'. The unit utilizes 48V phantom power, but can be powered from an external source via the micro-USB port when phantom power is unavailable. The 16-bit DAC delivers a high-quality audio signal with its output summed to mono (balanced). Made in the USA and featuring a durable, anodized-aluminum enclosure with a Switchcraft XLR connector, the 318BT is built to withstand the rigors of commercial and residential environments. - Simply plug, connect and play – no cable, battery or software needed
- Bluetooth V 4.0 – FCC, CE, RCM compliant
- Working distance 50' indoor, 100' without obstruction
- Powered by 48V phantom power or external power source via micro USB port
- Output is summed to mono (balanced)
- Front LED status indicator and reset button
- Rugged anodized-aluminum housing with Switchcraft's balanced XLR connector
In the Box Switchcraft 318BT Phantom-Powered Bluetooth Audio Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft 318BT Phantom-Powered Bluetooth Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft 318BT Specs | Bluetooth | Version: 4.0
Certification: FCC Class-B, CE, RCM
Frequency Band: 2402 to 2480 MHz
Working Range: Up to 100' (without obstruction), 50' (indoor) | | Frequency Response | A2DP Frequency Response: 73 Hz to 17.5 kHz (ref 1 kHz, ±3 dB with maximum device volume when working on phantom power) | | THD+N | 0.1% (at 1 kHz, with maximum device volume when working on phantom power) | | DAC Resolution | 16-bit | | Output Level | -24 dB, maximum | | Operating Power | Minimum Phantom Power Voltage: 46.5 VDC
Aux Power (Micro-USB Port): 4-6 VDC | | Connector | Switchcraft male XLR | | Housing | Anodized aluminum | | LED Indicators | Red and yellow | | Operating Temperature | -40 to 185° F / -40 to 85° C | | Dimensions | 1.23 x 1.03 x 3.65" / 3.15 x 2.62 x 9.25 cm) | | Weight | 2.7 oz / 76.5 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 2.3 x 2.3" |
