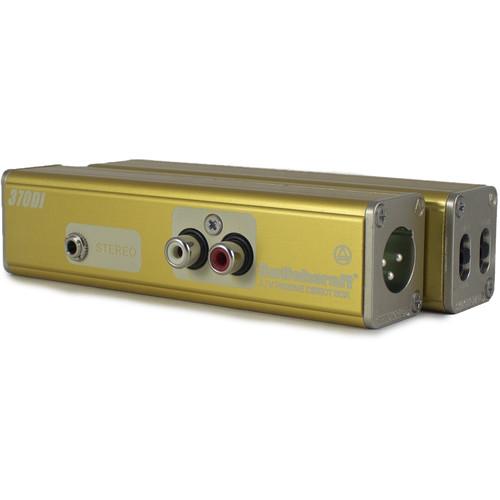

User Manual for Switchcraft 370DI AudioStix Passive A V Direct Box and Inline Audio Adapter Click to enlarge the picture
Contents of the user manual for the Switchcraft 370DI AudioStix Passive A V
- Product category: Direct Boxes Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Direct Boxes
|
User manual for the Switchcraft 370DI AudioStix Passive A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|
Product description The Switchcraft 370DI AudioStix is a passive A/V direct box well suited for concert touring, houses of worship, presentations, and broadcast facilities. The 370DI combines Switchcraft's SC700CT DI box and 318 inline audio adapters. The unit sums the signal from dual RCA inputs or an 1/8" TRS jack and converts it to a balanced mono line-level XLR for connecting to professional audio consoles and house sound systems. The Switchcraft 370DI AudioStix features a -20 dB pad to prevent loud signals from clipping. Like all Switchcraft products, the 370DI includes a limited lifetime warranty. -
- Dual RCA inputs
- 1/8" TRS input jack
- Switchcraft DE Series locking male XLR provides balanced, mono, mic level output
- Ground lift switch
- 20 dB pad to enable the device to handle stronger signals without distortion
- Limited lifetime warranty
In the Box Switchcraft 370DI AudioStix Passive A/V Direct Box and Inline Audio Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft 370DI AudioStix Passive A V Direct Box and Inline Audio Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft 370DI Specs | Frequency Response | 20 Hz to 20 kHz (±2 dB, ref 1 kHz) | | THD + N | 0.12% at 1 kHz, with pad off | | Maximum Input Level | Pad Off: 20 dBV
Pad On: 40 dBV | | Voltage Gain | -4.5 dB, pad off | | Input Impedance | >1900 Ohms at 1 kHz | | Output Impedance | <700 Ohms at 1 kHz | | Deviation from Linear Phase | 20 Hz: ≤30°
1 kHz: ≤3°
20 kHz: ≤30° | | Attenuation | Pad Attenuation: -20 dB | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.75 x 2.25 x 2.25" |
