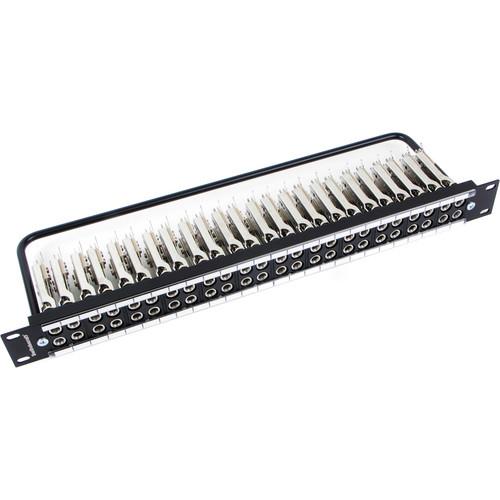

Product description The 52-Point 1/4" Long Frame Solder Bay with Cable Tie Bar from Switchcraft is a rugged and versatile patchbay designed to meet military specifications. It includes Full Normals Out configuration, pre-tinned and offset solder lugs, cable tie bar, changeable designation strips, and heavy-duty 1/4" long frame jacks. In the Box Switchcraft 52-Point 1/4" Long Frame Solder Bay with Cable Tie Bar Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft 52-Point 1 4" Long Frame Solder Bay with Cable Tie Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft MT52FNX Specs | | | Frame | Stamped nickel-plated steel | | Bushing | Nickel-plated brass | | Others | Tip, Ring, and Shunt Springs: Nickel silver with welded contacts
Assembly Screws: Nickel-plated steel
Welded Contacts: Gold alloy | | | | Front Panel | Thermoplastic | | Frame | C.R.S. black epoxy painted | | Others | Designation Strips: Black polycarbonate 94V-0
Designation Strip Covers: Clear polycarbonate | | | | Contact Resistance | 30 mΩ maximum initial | | Insulation Resistance | 10,000 MΩ maximum | | Dielectric | Withstanding Voltage: 500 V at 60 Hz AC | | Working Voltage | 140 VDC maximum | | Current | Rating: 100 mA | | | | Life | 30,000 cycles | | Insertion Force | 7.00 lb (3.20 kg) maximum | | Withdrawal Force | 1.0 lb (0.45 kg) minimum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 21.6 x 7.7 x 6.7" |
