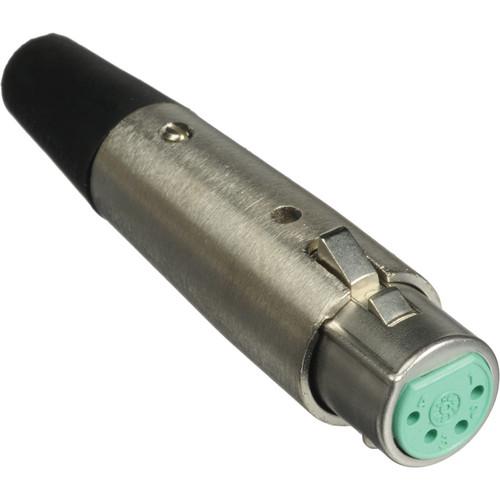

Product description Switchcraft's A Series 4 Pin XLR Female Cable Mount (Silver Pins, Nickel) has an adjustable dual pressure plate cable clamp, flexible strain relief, and removable pin insert. Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft A Series 4 Pin XLR Female Cable Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft A4FPKG Specs | Construction | Sturdy, die-cast zinc with satin nickel finish or Black-Velvet finish to withstand hard use and abuse. Vel-Tone non-reflective finish on QGP (XLR) connectors only. High-impact, molded thermoplastic provides high dielectric strength, and superior insulation resistance. | | Locking Mechanism | Latchlock on female plugs and receptacles locks into groove in mating male connector to prevent accidental disconnect. Manual release of latchlock is required to separate connectors. Q-G connectors are also available with FAS-DISCONNECT detent in place of latchlock. QGP (XLR) has die-cast latchlock. | | Contacts | Q-G female connectors are copper alloy, silver-plated, tarnish-resistant; male contacts are copper alloy, silver-plated, tarnish-resistant. Gold-plated female contacts are copper alloy. Male contacts are gold-plated. | | Wiring | Large, unique design solder cups make wiring fast and easy. Certain receptacles are also available with PC terminals for use with printed circuit boards. | | Miscellaneous | FAS-DISCONNECT: FAS-DISCONNECT detent permits immediate disconnect of locked connectors with a 4-pound (1.8 kg) force. FAS-DISCONNECT connectors are not recommended for use in situations where strong or violent pulls on cable may occur and cause accidental disconnect. Available on Q-G (XLR) connectors only.
DUAL PRESSURE PLATES: A*F and A*M Series provides secure cable lock and strain relief for all standard size cables.
FLEX RELIEF: TPR cable flex relief bushings on cord plugs are keyed to shell. Standard bushing opening accepts cables from .21 to .3 inch diameter Bushings with other openings accommodate cables from .105 to .205 inch diameter and from .3 to .328 inch diameter. | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 3.0 x 1.0 x 1.0" |
