User Manual for Switchcraft D Series 7-Pin XLR Female Click to enlarge the picture
Contents of the user manual for the Switchcraft D Series 7-Pin XLR Female
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
|
User manual for the Switchcraft D Series 7-Pin XLR Female contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|

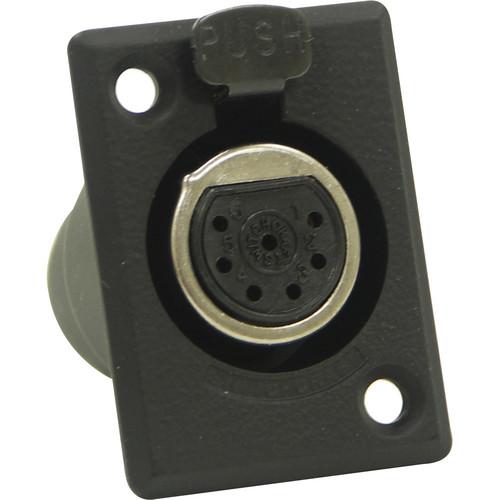

Product description Switchcraft's D Series 7-Pin XLR Female (Black Finish, Gold Pins) is a panel mounted rectangular XLR connector. The flange has two 0.136" (3.45mm) diameter countersunk holes for #5-40 flat head mounting screws (not included). This panel mounts from the front of the panel or chassis in a 0.953" (24.21mm) diameter hole. This panel mount has a standard latchlock. In the Box Switchcraft D Series 7-Pin XLR Female (Black Finish, Gold Pins) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft D Series 7-Pin XLR Female in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft D7FBAU Specs | Electrical | Contact Resistance: 50 milliohm maximum, per pole
Current Rating: 3 pole - 15A, 4 pole - 10A, 5 and 6 pole - 7.5A, 7 pole - 5A @ 125VAC
Insulation Resistance: 1,000 MO, minimum
Dielectric Withstanding Voltage: 1,000 V (rms)
Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F) | | Mechanical | Insertion/Withdrawal Forces: 7 pound maximum, 5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal
Wire Size: #12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and QGP) |
