User Manual for Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector Click to enlarge the picture
Contents of the user manual for the Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
 |
User manual for the Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|

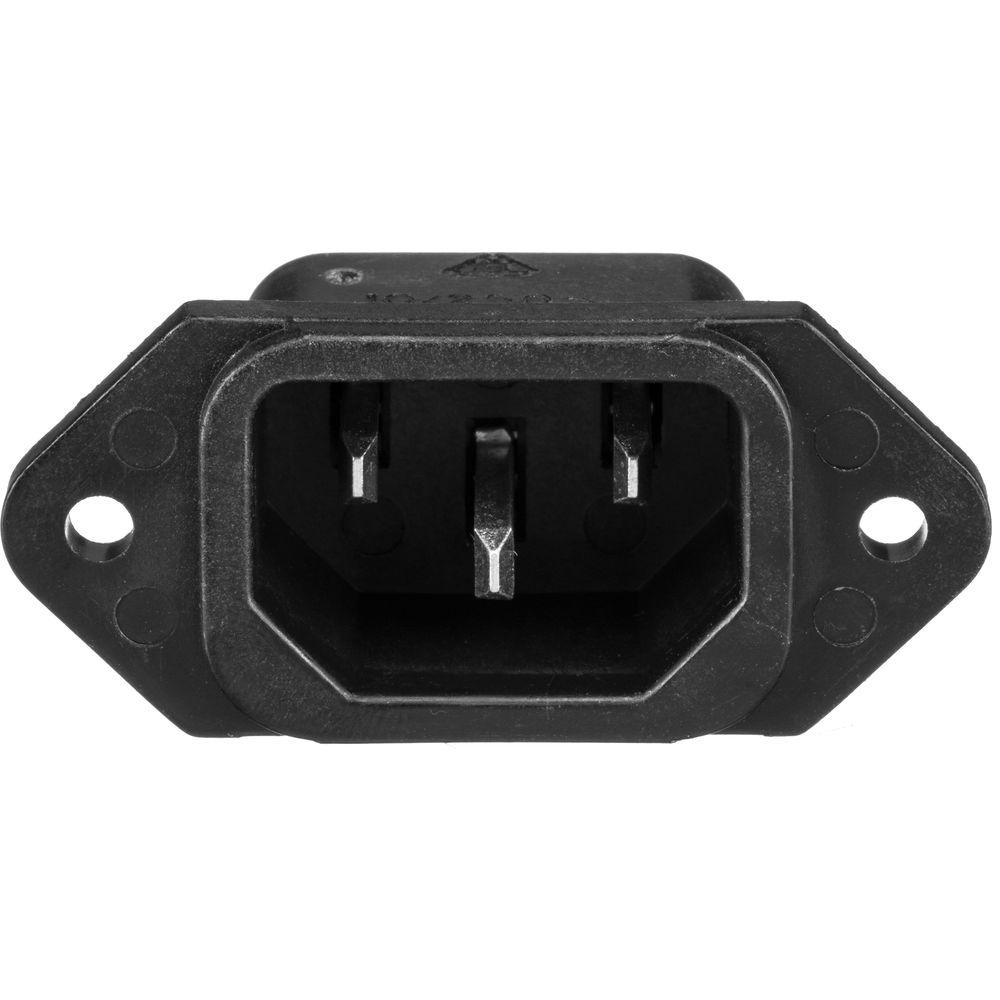

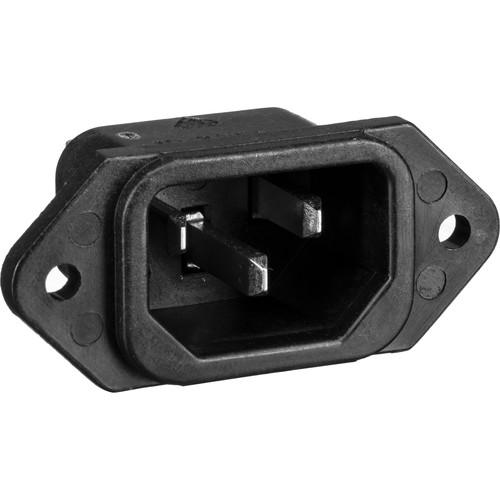

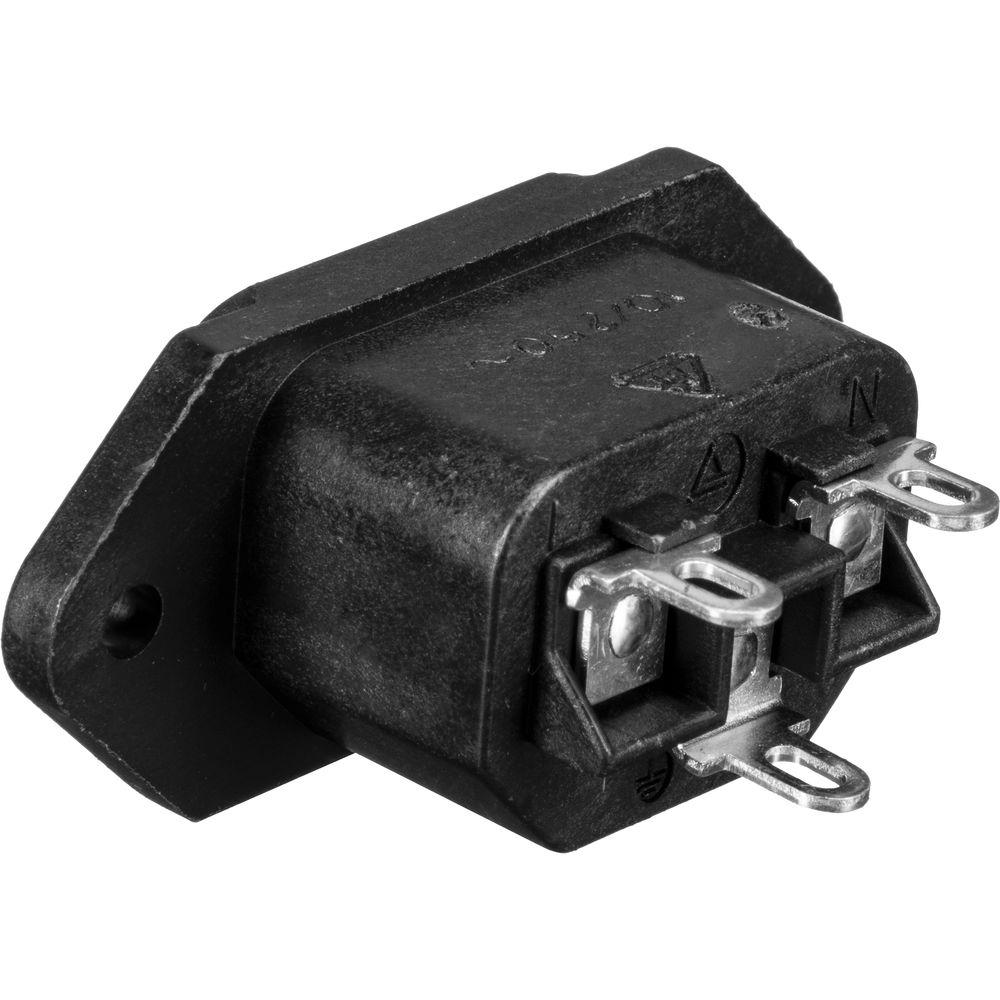

Product description The Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector is designed to meet EN 60 320, as well as applicable UL, CSA, VDE and other specifications. This 3-pin contact-grounding primary-power receptacle features a standard solder lug. The receptacle can be snapped in or screw mounted from the front or rear of the panel. It has orbital riveted lugs for superior mechanical and electrical connections. - 3-pin male receptacle with standard lug terminals
- Mounts from front or rear of panel with two #5 screws or 0.125" diameter rivets (not included)
- Features a standard solder lug
- Can be used with the P2392 IEC Power Cord (not included)
- Smeko, Demko, Nemko, SETI, and SEV approved
In the Box Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector (Male) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft EAC309X 3-Pin IEC Panel-Mount Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft EAC309X Specs | | | Insulation Resistance | 2 MOhms @ 500 VDC | | Dielectric Strength | 1500 Vrms | | Testing | Arcing Test: Meets UL 498 Standard | | | | Solderability | Solderability Standard: Meets MIL-STD-202, method 208, EIA RS-186-9E | | | | Operating Temperature | -67 to 149°F (-55 to 65°C) | | Testing | Salt Spray: Meets MIL-STD-202, method 101; EIA-RS-186-5E, method 5. | | | | Shell | Black polyester, UL flammability rating of UL94 V-0, yellow card #E45575 | | Contacts | 3-pin male receptacle with standard lug terminals | | Dimensions | 1.9 x 0.9 x 1.1" (4.8 x 2.3 x 2.8 cm) | | | | Package Weight | 0.03 lb | | Box Dimensions (LxWxH) | 2.0 x 1.05 x 1.0" |
