User Manual for Switchcraft HPC Panel Mount Receptacle Click to enlarge the picture
Contents of the user manual for the Switchcraft HPC Panel Mount Receptacle
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
|
User manual for the Switchcraft HPC Panel Mount Receptacle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|

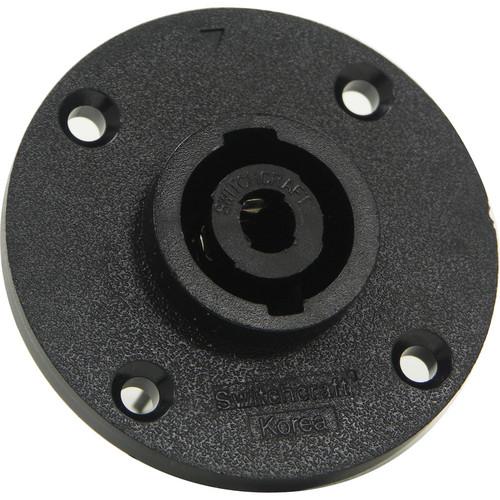

Product description Switchcraft's HPC Panel Mount Receptacle (0.2") is a round panel mount connector 0.152" diameter countersunk mounting holes, 0.2" Flange Depth and 0.250" Faston terminals. In the Box Switchcraft HPC Panel Mount Receptacle (0.2") Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft HPC Panel Mount Receptacle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft HPCPR42FPKG Specs | Mechanical | Shock: Mil-Std 202, Method 213B Cond. K
Vibration: Mil-Std 202, Method 201A
Life: 1,000 insertion/withdrawals
Cable Range: 0.560" OD max | | Electrical | PC Terminals Current Rating: 30A per UL 1977
Faston Terminals Current Rating: 50A RMS w/10AWG wire, normal ambient, per UL 1977
Voltage Rating: 1,500 AC RMS, Per Mil-Std 202, Method 301
Insulation Resistance: > 2T Ohms
Contact Resistance: 1m Ohm, 1.5m Ohm after 1,000 insertions/withdrawals | | Environmental | Salt Spray: Mil-Std 202, Method 101D Cond. B
Thermal Shock: Mil-Std 202, Method 107G
Temperature Limits: -55 C to +85 C
Moisture Resistance: Mil-Std 202, Method 106E
Life@Ambient Temperature: Mil-Std 202, Method 108A
Touch Proof: IEC 65 and 1010-1
Weather Tightness: IEC 529, IP 25 | | Construction | Housings: Thermoplastic UL94V-O rated
Seal Rings: Thermoplastic rubber
Contacts: Silver-plated over copper alloy | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 2.3" |
