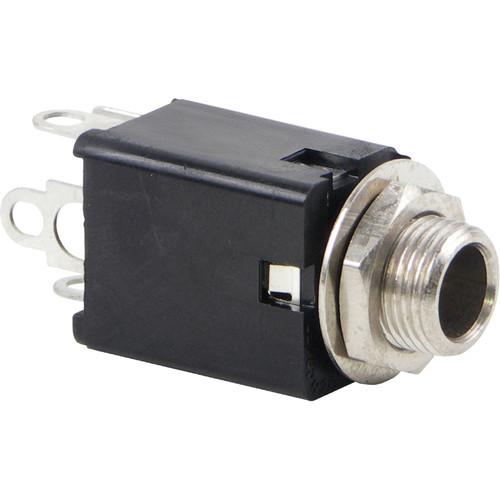

User Manual for Switchcraft L114BX Hi-D Jax 3-Conductor Enclosed Phone Jack with 0.375" Long Bushing Click to enlarge the picture
Contents of the user manual for the Switchcraft L114BX Hi-D Jax 3-Conductor Enclosed
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
|
User manual for the Switchcraft L114BX Hi-D Jax 3-Conductor Enclosed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|
Product description The black L114BX Hi-D Jax 3-Conductor Enclosed Phone Jack from Switchcraft is designed for in-circuit (insulated) mounting from mounting surface and have fully protected enclosed internal sleeve. The jack's unitized molded housing protects springs, provides mechanical and electrical reliability, minimizes leakage, and provides low capacity between springs. It mounts on 0.625" (minimum) centers in rows or arrays, and is suitable for panel/chassis and PC board mounting. In the Box Switchcraft L114BX Hi-D Jax 3-Conductor Enclosed Phone Jack with 0.375" Long Bushing (Double Closed Circuit, Solder Lug Termination, Black) Nut & Washer Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft L114BX Hi-D Jax 3-Conductor Enclosed Phone Jack with 0.375" Long Bushing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft L114BX Specs | | | Life | 10,000 insertion/withdrawal cycles, minimum | | Insertion / Withdrawal Force | Nominal Plug Retention: 2 lb (0.9 kg); 1.5 lb (0.7 kg) minimum | | | | Circuitry | Tip and ring closed | | Contact Resistance | 0.020 Ohms maximum (initial); 0.050 ohms maximum (after humidity, durability exposure); per MIL-STD-202E | | Insulation Resistance | 10,000 MOhms minimum (initial); 1,000 MOhms minimum (after humidity) | | Voltage | Dielectric Withstanding Voltage: 500 VAC, 60 Hz (RMS) | | Contact Ratings | 0.25, 48 VDC make and break, 3 A carry only | | | | Mounting | Mounts in panels up to 0.25" (0.6 cm) thick | | Bushing | 0.375" (1 cm) long | | | | Housing | Polyester glass filled | | Bushing | Nickel-plated brass | | Terminal | Sleeve Terminal: Brass (lead-free electro-tin plated) | | Springs | Nickel silver (lead-free electro-tin plated) | | Others | Nut: Nickel-plated brass
Washer: Nickel-plated steel | | | | Temperature Range | Operating: -4 to 149°F (-20 to 65°C)
Non-Operating: -67 to 185° (-55 to 85°C) | | Shock | Thermal Shock: Per MIL-STD 202, method 107 | | Humidity | Per MIL-STD 202, method 106 | | Salt Spray | Per MIL-STD 202, method 101 | | | | Compliance | RoHS | | Dimensions (Ø x L) | 0.62 x 1.46" (1.57 x 3.71 cm) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 1.3 x 0.9 x 0.6" |
