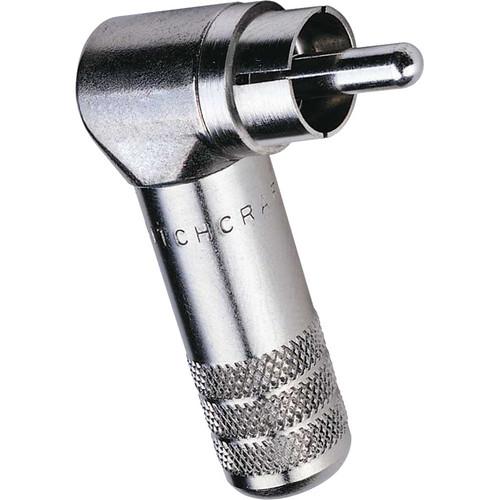

User Manual for Switchcraft Right Angle Cable Mount RCA Plug Click to enlarge the picture
Contents of the user manual for the Switchcraft Right Angle Cable Mount RCA
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
|
User manual for the Switchcraft Right Angle Cable Mount RCA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|
Product description The Right Angle Cable Mount RCA Plug from Switchcraft with nickel pin and nickel body features an easy-to-assemble three-piece construction that includes a handle, insulator, and plug. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The reduced profile makes it perfect for use behind equipment where space is at a premium. The larger cable clamp and handle will accommodate a variety of cable sizes. This RCA plug will save time and space in any application. - Nickel-plated plug finger and handle
- Larger cable clamp provides better strain relief for large cables
- Longer cable clamp for easier plug assembly and more room for solder connection
- Knurl on the back of handle provides ergonomic gripping surface to tighten plug
- Longer handle for improved gripping surface and easy plug withdrawal from jack
Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft Right Angle Cable Mount RCA Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft 3502RAPKG Specs | Electrical | Contact Resistance (typical D.O.M.J.): <0.20Ω
Dielectric Withstand Voltage: 500 VAC (minimum)
Insulation Resistance @ 500 VDC: 2,000 MΩ (minimum)
Insulation Resistance (after MIL-STD-202 Salt Spray): 1000 MΩ (minimum)
Working Voltage: 250 VAC, 140 VDC
Current Carry @ Working Voltage (typical D.O.M.J.): 6 A | | Mechanical | Insert/Withdrawal Force: Dependent on mating jack
Temperature Range: -40 to 185°F (-40 to 85°C)
U.L. Component Recognition File Number.: E118169
Life: Dependent on mating jack
Maximum Cable Size: 0.2" (0.7 cm) diameter | | Material | Pin: Nickel-plated
Sleeve: Nickel-plated
Handle: Nickel-plated
Cable Clamp: C.R.S., electrotin-plated
Insulator: Rigid plastic | | Dimensions | 1.3 x 0.4" (3.3 x 1.0 cm) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 1.5 x 1.0 x 0.04" |
