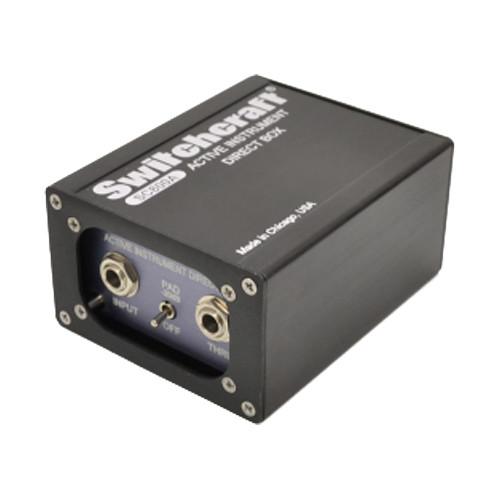

Product description The Switchcraft SC800A is a precision engineered active direct box, which provides extended reach and high-quality audio fidelity for professional audio engineers and musicians. the SC800A derives its power from 48V phantom power and is designed to quietly preserve the tone of the world finest musical instruments. The unit is ideal for converting the unbalanced outputs of a passive musical instrument, such as an acoustic guitar and bass, to mic level signals that can be connected to a professional audio console and mic preamp. In the Box Switchcraft SC800A Active Instrument Direct Box Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft SC800A Active Instrument Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft SC800A Specs | Connectors | Input: 1/4" / 6.35 mm mono (TS)
Thruput: 1/4" / 6.35 mm mono (TS)
Output: XLR 3-pin | | Controls | Pad: 20 dB input pad
Ground Lift: XLR Pin-1 lift | | Frequency Response | 30 Hz to 30 kHz ±0.3 dB, ref 1 kHz | | THD + N | <0.008% at 1 kHz, +4 dBu input, 22 kHz bandwidth
<0.04% at 20 Hz, +4 dBu input, 22 kHz bandwidth | | Maximum Input Level | +12 dBu at 20 Hz with 1% THD+N
+32 dBu with 20 dB pad engaged | | Input Impedance | >1 MOhms at 1 kHz | | Output Impedance | <600 Ohms at 1 kHz | | CMRR | Input: >86 dB at 60 Hz
Output: >65 dB at 60 Hz | | Deviation from Linear Phase | <16° at 20 Hz
<1° at 1 kHz
<-12° at 20 kHz | | Voltage Gain | +3 dB ±1 dB
-17 dB ±1 dB with 20 dB pad engaged | | Attenuation | Pad Attenuation: 20 dB ±1 dB | | Dimensions (H x W x D) | 3.4 x 4.2 x 2.1" / 85.1 x 105.7 x 53.3 mm | | Weight | Not specified by manufacturer |
