User Manual for Switchcraft Tini-QG Mini XLR 3-Pin Female Cable Mount Click to enlarge the picture
Contents of the user manual for the Switchcraft Tini-QG Mini XLR 3-Pin Female
- Product category: Audio Connectors Switchcraft
- Brand: Switchcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Switchcraft Audio Connectors
|
User manual for the Switchcraft Tini-QG Mini XLR 3-Pin Female contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Switchcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Switchcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Switchcraft product will considerably shorten its lifespan!
|

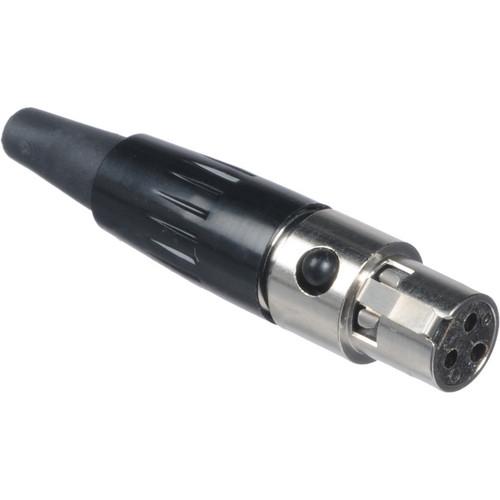

Product description The nickel, silver Tini-QG Mini XLR 3-Pin Female Cable Mount from Switchcraft is a TA Series Tini QG (Mini XLR) female cable mount connector. This cable connector can be used for pro audio and broadcast applications and offers secure connections for wireless systems and more. In the Box Switchcraft Tini-QG Mini XLR 3-Pin Female Cable Mount (Nickel, Silver) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Switchcraft Tini-QG Mini XLR 3-Pin Female Cable Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwitchcraft TA3FXPKG Specs | Mechanical | Life: 5,000 operations minimum
Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal
Solderability Standard: Meets EIA RS-186-9E
Mechanical Shock: Meets MIL-STD-202, method 213B
Vibration: Meets MIL-STD-202, method 201A
Wire Size: #22 wire gauge solid; #24 wire gauge stranded | | Electrical | Contact Resistance: .010 ohms maximum after life (and after salt spray)
Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum
Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test)
Dielectric Strength: 1,000 V (rms) | | Environmental | Thermal Range: -67 to 185° F / -55 to 85° C
Humidity: Meets MIL-STD-202, method 106D
Thermal Shock: Meets MIL-STD-202, method 107D
Salt Spray: Meets MlL-STD-202, method 101 | | Construction | Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle-Die-cast zinc, nickel-plated
Black Tini Q-G Housing: Copper alloy, black chrome-plated
Pin and Socket Contacts: Copper alloy, silver-plated
Flex Relief: Molded black thermoplastic elastomer
Latch Button: Molded black thermoplastic
Release Lever and Mounting Washer: Steel, nickel-plated
Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned
Inserts and Insulating Spacer: Molded, high strength thermoplastic
Latch (Female): Copper alloy, nickel-plated
Mounting Nut: Copper alloy, nickel-plated | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 3.0 x 2.0 x 0.5" |
