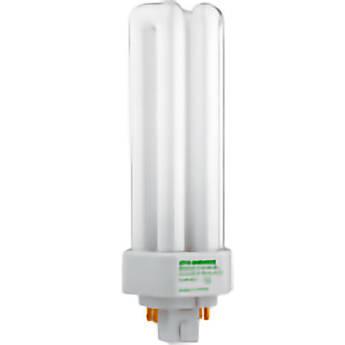

User Manual for Sylvania Osram CF42 DT E IN 841 Dulux 42W Triple Compact Fluorescent Amalgam Lamp Click to enlarge the picture
Contents of the user manual for the Sylvania Osram CF42 DT E IN
- Product category: Fluorescent Lamps Sylvania / Osram
- Brand: Sylvania / Osram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sylvania / Osram Fluorescent Lamps
|
User manual for the Sylvania Osram CF42 DT E IN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sylvania / Osram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sylvania / Osram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sylvania / Osram product will considerably shorten its lifespan!
|
Product description The Osram Sylvania CF42 DT/E/IN/841 Dulux 42W Triple Compact Fluorescent Amalgam Lamp features a 4-pin base, integral EOL, 4100K color temperature, and 82 CRI, and comes with Ecologic technology.
The CF42 DT/E/IN/841 Compact Fluorescent Lamp is suitable for use in a wide range of commercial and residential applications. It is designed to be operated on energy efficient electronic and dimming ballasts. The lamp serves as a long-life, energy-saving device. Amalgam technology provides higher lumens over a much wider temperature range. Furthermore, the triple tube configuration of the lamp allows for single-lamp luminaire designs with improved efficacy and photometric performance. Note: Operation on high-frequency ballasts may result in an abnormal end-of-life phenomenon. Minimum starting temperature is a function of the ballast. Please consult the ballast manufacturer. - Improved Lumen Output: Maintains 90% lumens at 40 to 140°F (4.4 to 60°C) ambient temperatures
- Optimum light output at approximately 95°F (35°C) ambient temperature when the lamp is operated in the base up position 1
Please Note: The lumen value refers to the optimum light output. close - Long 12,000 to 16,000 hour average rated life 2
Please Note: The life rating is based on 3-hour burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life. close - Fast run-up to full brightness
- Ecologic fluorescent lamp designed to pass the Federal TCLP (Toxic Characteristic Leaching Procedure) criteria for classification as non-hazardous waste in most states 3
Please Note: - Ecologic is a comprehensive program focused on addressing environmental issues at all stages of lamp life.
- Lamp disposal regulations may vary. Please check your local & state regulations.
close - RoHS compliant 4
Please Note: The light source meets restrictions on hazardous substances. close - Operates electronic ballasts systems for flicker-free starting and dimming 5
Please Note: - Lamp is designed for use with programmed rapid start ballasts. It is not recommended for use with IS ballasts.
- Minimum starting temperature depends on ballast.
close - Compatible with Quicktronic PROStart CF 6
Please Note: Quicktronic PROStart CF electronic ballasts are UCSA certified & FCC 47CFR Part 18 consumer rated. They feature Quicksense circuitry for end-of-life protection required by NEMA. close - Rare earth tri-phosphor with 82 CRI
- Can be installed with etch facing down for horizontal operation
- Applications: Recessed down lights, surface-mounted luminaries, & wall sconces
UPC: 046135208904 In the Box Sylvania / Osram CF42 DT/E/IN/841 Dulux 42W Triple Compact Fluorescent Amalgam Lamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sylvania Osram CF42 DT E IN 841 Dulux 42W Triple Compact Fluorescent Amalgam Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSylvania / Osram 20890 Specs | Bulb Type | T4X3 | | Base Type | GX24q-4 | | Lumens | 3200 | | Wattage | 42 W | | Color Temperature | 4100K | | Bulb Color | None | | Color Accuracy Standard | CRI 82 | | Average Life | 16,000 Hours | | Maximum Overall Length (MOL) | 6.5" / 16.5 cm | | Maximum Overall Diameter (MOD) | 0.5" / 1.3 cm | | AC Input Power | 135 VAC, 60 Hz | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.9 x 2.0 x 1.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
