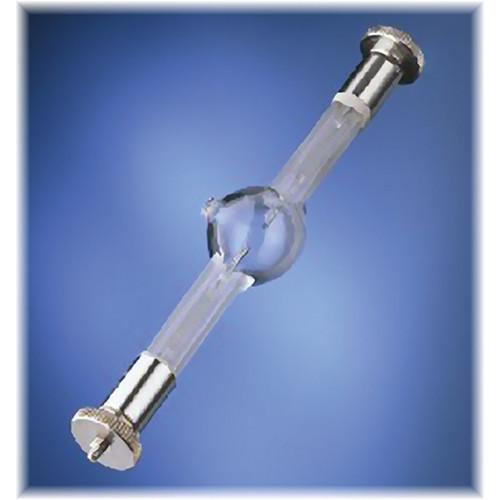

User Manual for Sylvania Osram SharXS HTI 700W D4 75 Compact Metal Halide Double-Ended Lamp Click to enlarge the picture
Contents of the user manual for the Sylvania Osram SharXS HTI 700W D4
- Product category: Metal Halide & HMI Lamps Sylvania / Osram
- Brand: Sylvania / Osram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sylvania / Osram Metal Halide & HMI Lamps
|
User manual for the Sylvania Osram SharXS HTI 700W D4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sylvania / Osram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sylvania / Osram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sylvania / Osram product will considerably shorten its lifespan!
|
Product description The Osram Sylvania SharXS HTI 700 W/D4/75 Lamp is a compact, double-ended 700W short-arc lamp that acts as a powerful effect light with a color temperature of 7500K. The SharXS HTI 700W / D4 / 75 lamp features a short arc and eXtreme-Seal technology (XS technology). The 4mm short arc produces high luminance and efficiency, and ensures low energy consumption. Additionally, the XS technology makes the lamp robust, especially when dealing with thermal stress. The thermally sensitive area of the power leads is enclosed by a protective coating that withstands temperatures up to 842°F (450°C). The cooling system can be downsized, which means it takes less space and is quiet. It supports the modular luminaire design enabling the luminaires to be made more compact. A special pre-alignment base ensures that the lamp can be quickly and easily fitted in its holders, with the lock-and-key principle between the lamp and the holder, making it impossible to install incorrectly. This double-ended metal halide lamp is suitable for effect lighting of the stage and finds application in film and television. - Optimized lamp XS (eXtreme Seal) technology to withstand interior base temperatures of up to 842°F (450°C)
- Base has notch for pre-alignment
- Double-ended lamp will allow for key-lock socket feature
- Application: Entertainment, effects, and architectural lighting
In the Box Sylvania / Osram SharXS HTI 700W / D4 / 75 Compact Metal Halide Double-Ended Lamp Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sylvania Osram SharXS HTI 700W D4 75 Compact Metal Halide Double-Ended Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSylvania / Osram 54242 Specs | Luminance | Average: 60,000 cd/cm2 | | Average Life | 750 hours | | Base | SFc10-4 | | Bulb | T18 | | Class | C (gas) | | Color Rendering Index | 80 | | Color Temperature | 7500 K | | Cooling | Forced | | Current | 10 / 11 A | | Distance | 2.2" (57.5 mm) | | Electrode Gap | 0.1" (4.0 mm, cold) | | Lamp | Clear finish | | Luminous Flux | 59,000 lumens | | Temperature | Maximum Base Temperature: 842°F (450°C) | | Nominal Voltage | 70 V | | Wattage | Nominal: 700 W | | Operating Position | Any | | Reflector | 18 (coating) | | Current | Type: VAC | | Diameter | 0.70" (17.78 mm) | | Length | Maximum Overall Length: 5.3" (136.0 mm) | | Light Center Length | 2.2" (57.5 mm) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 9.9 x 3.9 x 2.2" |
