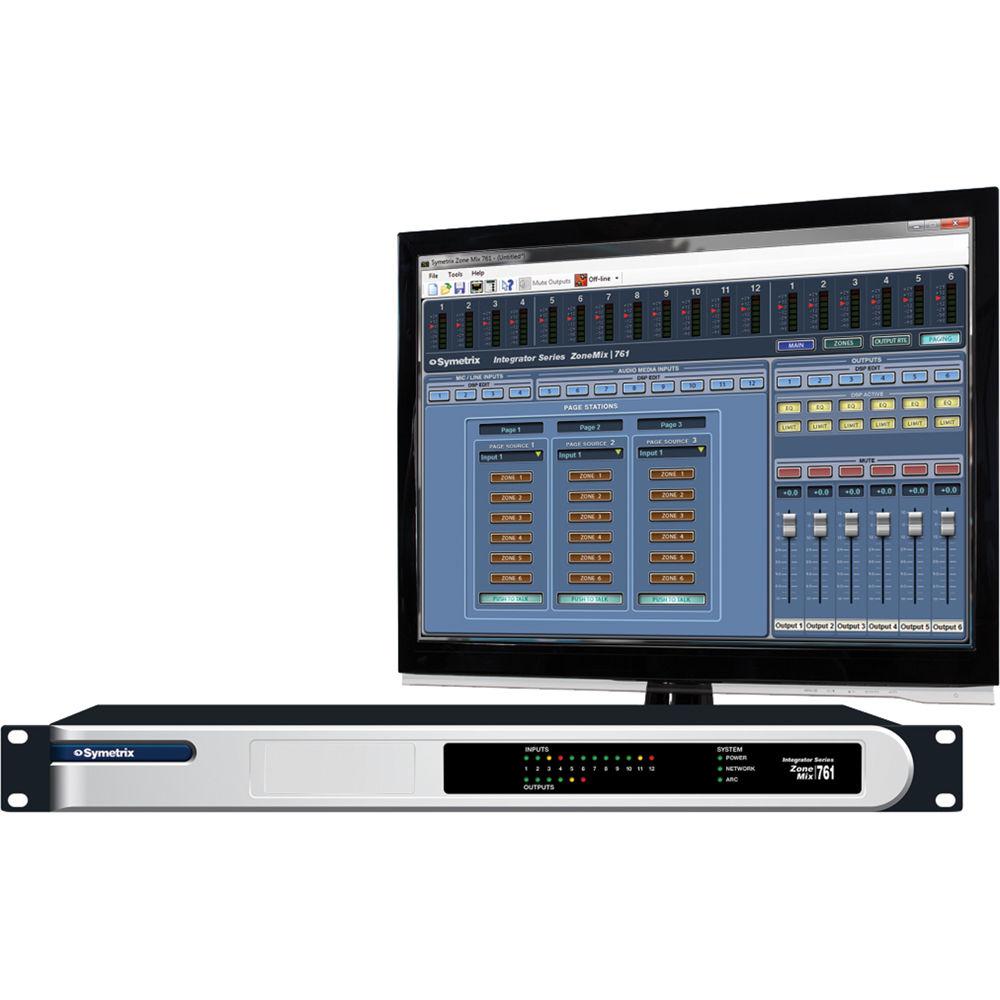

Product description The Integrator Series Zone Mix 761 from Symetrix is a complete zone mixing, paging, and music management solution well suited for restaurants, sports bars, fitness clubs, night clubs, hotels, casinos, retail locations, museums, office buildings, theme parks, and more. The Zone Mix 761 features a familiar hardware-like layout, which provides a low learning curve and quick assessment with a software connection wizard that provides fast and easy IP linking to the DSP hardware. The external control wizard guides effortless programming of multiple user control devices such as ARC wall panels and the ARC web browser. Additionally, the system is equipped with a life safety system for emergency announcement routing and system muting. The Zone Mix 761 ships with a power adapter. -
- A cost effective DSP devoted to paging and background music control. Paging into six zones from three microphone locations, plus emergency page, with automatic ducking and priority arbitration
- Turn-key with plenty of inputs and outputs and a pre-designed GUI make for fast installations
- All twelve input and six output channels feature a full complement of processing including: dynamics, feedback elimination, ambient noise sensing, EQ, and loudspeaker management resulting in a world class audio experience
- Multiple control options include zero cost ARC-WEB browser interface and low-cost Symetrix ARC wall panels. A stable, human readable protocol is used to program third-party touch screens
- The software connection wizard provides fast and easy IP linking to the DSP hardware. The external control wizard guides effortless programming of multiple user control devices
In the Box Symetrix Integrator Series Zone Mix 761 - Zone Mixing, Paging, and Music Management Power Adapter 16 x Euroblock Connectors CD - Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Symetrix Integrator Series Zone Mix 761 - Zone Mixing, Paging, and Music Management in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

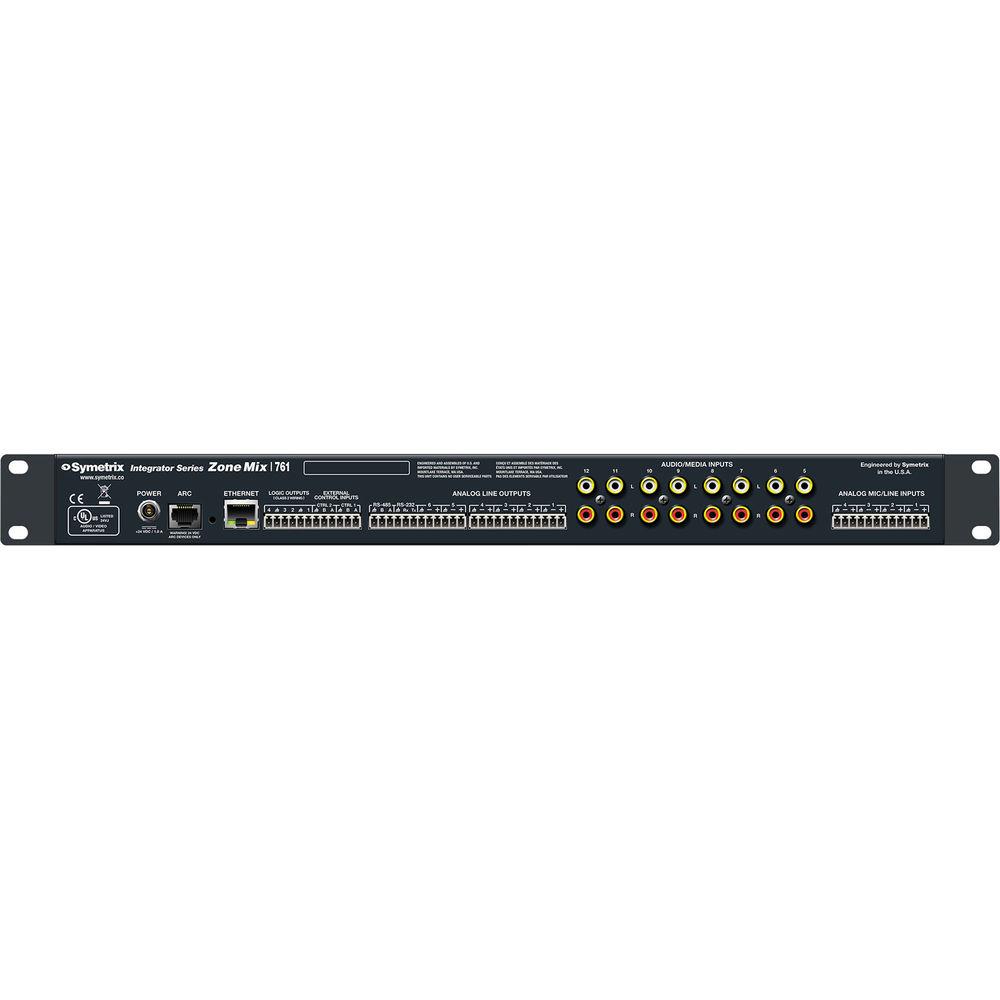

Technical parametersSymetrix Zone Mix 761 Specs | | | Number of Inputs | Number of Inputs: 12 total
Switchable Mic/Line: 4 terminal blocks
Line: 8 RCA mono-summed stereo (-10 dBV) | | Connectors | Mic/Line: 0.15" / 3.81 mm terminal blocks (mic/line)
Audio Media Source: RCA | | Nominal Input Level | +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom | | Maximum Input Level | Mic/Line: +23 dBu
RCA: +8 dBV | | Input Impedance | Balanced: > 18 kOhms balanced
Unbalanced: > 9 kOhms unbalanced
Euroblock (with Phantom Power Engaged): > 2 kOhms
Unbalanced RCA: > 2 0 kOhms unbalanced (RCA)
CMRR: > 50 dB @ 1 kHz, unity gain | | EIN | Mic Pre-amp EIN: -125 dBu, 22 Hz - 22 kHz, (100 Ohms source impedance) | | Phantom Power | +20 VDC, 20 mA maximum per input | | | | Number of Outputs | Balanced Line Level Connectors: 6x 0.15" / 3.81 mm terminal blocks | | Nominal Output Level | +4 dBu line level with 20 dB of headroom
For unbalanced analog output, do not connect the minus output terminal
Unbalanced configuration results in 6 dB lower output level | | Maximum Output Level | +24 dBu | | Output Impedance | Balanced: 200 Ohms
Unbalanced: 100 Ohms | | | | Sample Rate | 48 kHz | | Frequency Response | 20 Hz - 20 kHz, +/- 0.5 dB | | Dynamic Range | Input to Output: > 110 dB (A-Weighted) | | THD + N | 1 kHz @ +22 dBu with 0 dB Gain: < -85 dB (un-weighted) | | Inter-Channel Crosstalk | Input to Output with All DSP Inactive: < -90 dB @ 1 kHz, typical
Latency: < 1.6 ms | | | | Power | Universal Input: 100-240 VAC, 50/60 Hz, 25 W maximum | | Certification and Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS | | Operating Temperature | 86°F / 30°C (maximum) | | Dimensions (W x D x H) | 18.9 x 8.7 x 1.7" / 48.0 x 22.1 x 4.4 cm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 26.0 x 17.0 x 4.0" |
