User Manual for Symetrix Jupiter 4 App Configurable 4 x 4 DSP Click to enlarge the picture
Contents of the user manual for the Symetrix Jupiter 4 App Configurable 4
- Product category: System Processors Symetrix
- Brand: Symetrix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Symetrix System Processors
 |
User manual for the Symetrix Jupiter 4 App Configurable 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Symetrix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Symetrix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Symetrix product will considerably shorten its lifespan!
|

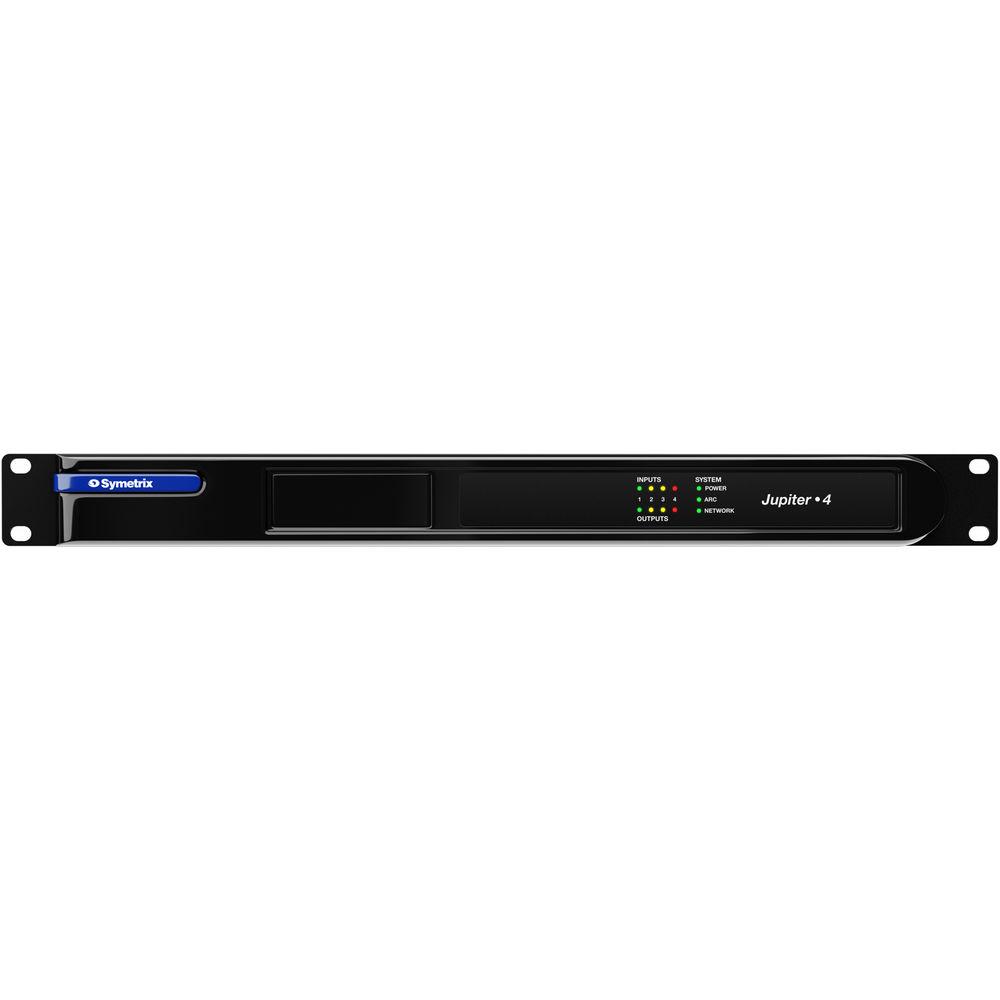

Product description The Symetrix Jupiter 4 App Configurable 4 x 4 DSP features a turn-key audio processing solution with a zero learning curve. It uses "apps" the same way a smartphone does. There are applications for mixing and routing, public address and distribution, sound reinforcement, and special purpose signal processing. By using pre-designed apps, users greatly reduce setup and installation time. Each app does a specific audio job and the library of downloadable Jupiter apps is ever-growing, which ensures your hardware is future-proof. Key Features - A turn-key audio processing solution utilizing downloadable 'apps' optimized for specific venues and systems
- App categories include mixing and routing, public address and distribution, sound reinforcement, and special purpose signal processing
- Pre-designed apps greatly reduce setup and installation time
- Features 4 mic/line inputs with phantom power and 4 line outputs
- Ethernet, dual ARC ports, dual external control inputs and four logic outputs
- Jupiter brings you controllable and simple to use audio DSP. Engineered and built in the US by Symetrix
Hardware & Software - Each Jupiter hardware offering uses the same software and DSP processes
- Just like using productivity apps on your smartphone, you use Jupiter apps to do specific audio jobs with a simple download to Jupiter hardware. Tap into one of the multiple personalities of Jupiter - no design time, zero learning curve. Jupiter handles every task, from automixing to loudspeaker management. Plus, the ever-growing library of downloadable Jupiter apps future-proofs your hardware investment
In the Box Symetrix Jupiter 4 App Configurable 4 x 4 DSP AC Power Cord 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Symetrix Jupiter 4 App Configurable 4 x 4 DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

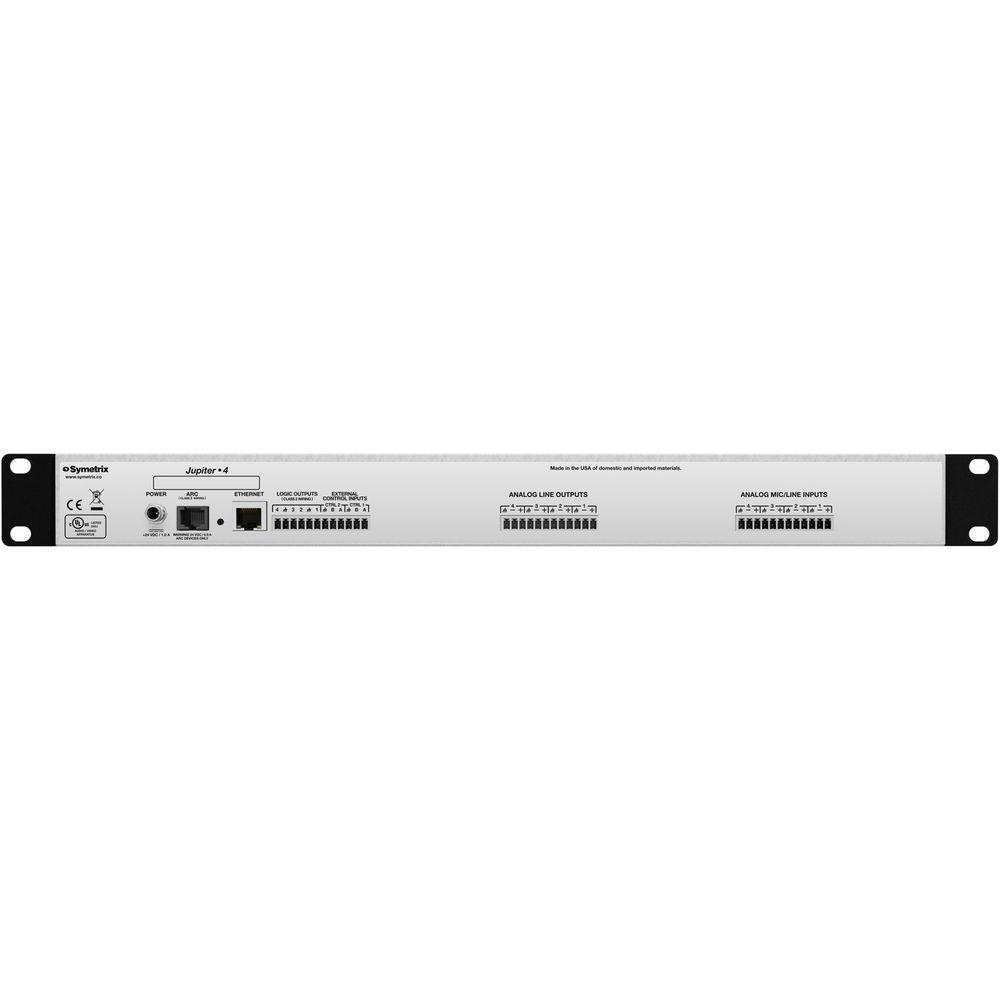

Technical parametersSymetrix 4 Specs | | | Inputs | 4 switchable balanced mic or line level | | Connectors | 0.15" (3.81mm) terminal blocks | | Nominal Input Level | Software Selectable: +4dBu mic level / -36dBu mic level (20dB headroom) | | Gain | +40dB (mic preamp gain) | | Trim | ±24dB (input) | | Maximum Input Level | +23dBu | | Input Impedance | >18K Ohms (balanced) >9K Ohms (unbalanced) >2K Ohms (phantom power engaged) | | CMRR | >50dB at 1kHz (unity gain) | | EIN | Mic Preamp EIN: <-125dBu / 22Hz - 22kHz (100 Ohms source impedance) | | Phantom Power | +20V DC (20mA max per input) | | | | Outputs | 4 line level | | Connectors | 0.15" (3.81mm) terminal blocks | | Nominal Output Level | +4dBu line level (20dB headroom) For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6dB lower output level | | Maximum Output Level | +24dBu | | Output Impedance | 200 Ohms (balanced) 100 Ohms (unbalanced) | | | | Sample Rate | 48kHz | | Frequency Response | 20Hz - 20kHz (±0.5dB) | | Dynamic Range | >110dB A-weighted (input to output) | | THD + Noise | <-85dB unweighted (1kHz at +22dBu with 0dB gain) | | Crosstalk | Interchannel Crosstalk: <-90dB at 1kHz (typical) | | Latency | <1.6ms (input to output with all DSP inactive) | | | | Power Supply | AC 100 - 240V (50/60Hz) | | Power Consumption | 25W (max) | | Dimensions (WxHxD) | 18.91 x 1.72 x 7.5" (48.02 x 4.37 x 19.05cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 25.1 x 16.3 x 3.3" |
