Product description

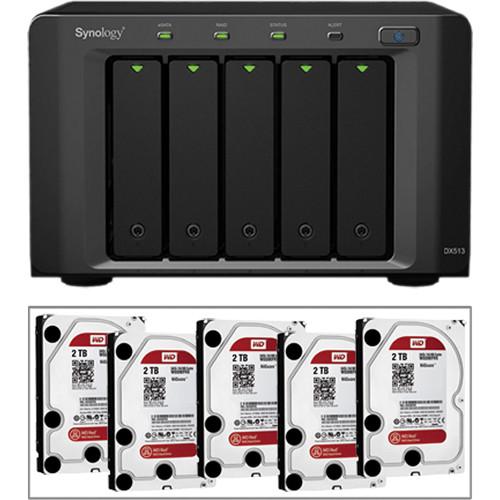

• Synology DiskStation DX513 5-Bay Expansion Unit The DiskStation DX513 5-Bay Expansion Unit from Synology delivers an effortless solution for volume expansion and data backup for selected Synology DiskStation models. It seamlessly scales up the storage capacity of your DiskStation by adding 5 hard drives on the fly when connected directly to an expansion cable.
  Volume Expansion & Backup
  • The DiskStation DX513 provides you an easy way to immediately scale capacity by adding 5 hard drives on your Synology DiskStation when you are running out of hard drive capacity. You can expand the RAID volume on your Synology DiskStation directly without having to reformat the existing hard drives and ensure that your DiskStation continues its service during the capacity expansion. It can also be used as a dedicated local backup solution for your Synology DiskStation. When created as a separate volume, it provides a great backup solution to the local hard disks in case of system failure
  Reliable Plug-and-Use Design
  • You can connect it to your Synology DiskStation using an expansion cable with custom-designed connectors on both ends, ensuring a reliable connection and maximum throughput. The 3.0 Gb/s connection speed allows the hard drives connected in it to operate as the internal ones of Synology DiskStation
  Green & Easy to Manage
  • Its deep sleep mode can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the hard disk. Furthermore, the DiskStation DX513 can automatically power on/off when paired with selected DiskStation models, so the system runs intelligently and efficiently without your intervention
  Compatibility
  • It supports Synology DiskStation DS1815+, DS1813+, DS1812+, DS1515+, DS1515, DS1513+, DS1512+, DS1511+, DS1010+, DS715, DS713+, DS712+, and DS710+
  UPC: 846504001309
• 5 x WD 2TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit Designed with home and small office/business customers in mind, the 2TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit from WD is well-suited for NAS environments with up to eight 3.5" drive bays. Engineered to handle increased workloads, this 2TB drive operates using a SATA III 6 Gb/s interface, a 64MB cache, and a rotational speed of 5400 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 147 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <10 in 10¹⁴ non-recoverable read errors per bits read, error recovery controls, and 1,000,000 hours MTBF for 1-8 bay NAS systems. Also built into this drive are noise and vibration protection and WD's NASware 3.0 helps increase system compatibility, allowing WD Red drives to be more easily integrated with your existing network infrastructure.

  General Features

  Fill Your NAS with WD Red
  • Built for 1 to 8-bay NAS systems, WD Red lets users store their data in one unit
  NASware 3.0 Technology
  • Built into every WD Red hard drive, NASware 3.0's technology helps improves your system's storage performance by increasing compatibility, integration, upgradeability, and reliability
  Built for NAS Compatibility
  • Desktop drives aren't purpose-built for NAS, but WD Red drives with NASware are. WD's technology helps takes the guesswork out of selecting a drive. WD Red is for small NAS systems and WD's algorithm balances performance and reliability in NAS and RAID environments
  Desktop Drives vs. WD Red
  • Desktop hard drives are not designed for NAS environments. Do right by your NAS and choose a drive with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:

  • Compatibility: Without being tested for compatibility with your NAS system, improved performance is not guaranteed
  • Reliability: The always-on environment of a NAS or RAID is a hot one and desktop drives aren't typically tested in those conditions. WD Red is
  • Error Recovery Controls: WD Red NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system. Desktop drives are not typically designed for RAID environments where this can be an issue
  • Noise and Vibration Protection: Designed to operate solo, desktop drives offer little or no protection from the noise and vibration faced in a multi-drive system. WD Red drives are designed for multi-bay NAS systems
  WD Red for Home
  • Stream, backup, share, and organize your digital content at home with a NAS and WD Red drives designed to share content to the devices in your home. Red NASware helps increase your drives' compatibility with your devices, TV, stereo, and more
  WD Red for Small Business
  • WD Red is a good hard drive choice for 1 to 8 bay systems. NASware 3.0 allows for integration with your existing network so WD Red can share and backup files at the speed of your business. For larger businesses with up to 16 bays, use WD Red Pro
  3D Active Balance Plus
  • This helps ensure your data is protected from excessive vibration and noise in a NAS or RAID environment. This dual-plane balance control helps reduce the degradation of your drive over time
  Reliability
  • Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red drive with NASware 3.0 is designed for 24x7 environments
  Cooler Operations
  • By reducing power consumption, the operating temperature of your NAS stays cooler. With a lower temperature in your system, you can create a more reliable solution for your NAS
  UPC: 718037815442

• DiskStation DX513 5-Bay Expansion Unit uxusdqzywttbyvxfctbtazcr
• AC Power Cord
• Assembling Kit (24 x Screws for 3.5" and 2.5" Hard Drives and 2 x Hard Drive Tray Keys)
• Expansion Cable
• Limited 3-Year Warranty

• 5 x WD - 2TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology DiskStation DX513 5-Bay Expansion Unit

  Number of Bays	5 x 2.5"/3.5"
  Compatible Drive Interface	SATA III
  Hot-Swap Support	Yes

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Consumption	45.1 W

  Security Features	Lockable Bay Door

  Operating Temperature	40 to 95°F / 5 to 35°C
  Operating Humidity	5 to 95%
  Storage Temperature	15 to 155°F / -10 to 70°C
  Certifications	RoHS, as per Manufacturer

  Cooling	2 x 80 mm Fans
  Noise Level	30 dBA
  Status Monitoring	LED Indicator
  Dimensions (W x H x D)	9.8 x 6.2 x 9.2" / 248.0 x 157.0 x 233.0 mm
  Weight	8.6 lb / 3.9 kg

  Box Dimensions (LxWxH)	14.7 x 13.6 x 12.7"

• 5 x WD 2TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit

  Drive Capacity	2.0 TB
  Cache Memory	64 MB

  Interface	SATA III (6 Gb/s)
  Sequential Read Speed	147 MB/s
  Sequential Write Speed	147 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	24.0 dB (Active) 23.0 dB (Idle)

  Spindle Speed (RPM)	5400 RPM

  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	< 1 in 1014

  Power Draw	4.1 W (Active) 2.7 W (Idle) 0.4 W (Standby)
  Current	1.73 A at 12 VDC

  Operating Shock	30 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	32 to 140°F / 0 to 60°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Certifications	RoHS, as per Manufacturer
  Dimensions (W x H x D)	1.0 x 5.7 x 4.0" / 26.1 x 144.8 x 101.6 mm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	7.5 x 5.1 x 2.6"
