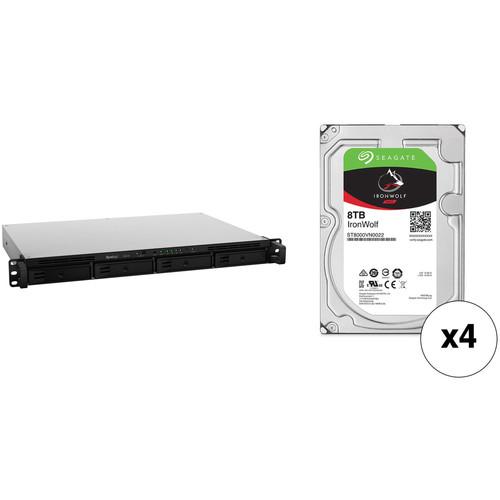

Product description This Kit combines the Synology RX418 4-Bay Expansion Unit with four Seagate 8TB IronWolf 7200 rpm SATA III 3.5" hard drives for a total storage capacity of 32TB. - Synology RX418 4-Bay Expansion Unit The RX418 4-Bay Expansion Unit from Synology is designed to provide storage expansion for their RS818+ RS818RP+, RS815+, RS815RP+, RS816, and RS815 NAS arrays. It can also be used as a dedicated local backup destination for Synology 1 RU RackStation arrays for comprehensive data protection.
The four drive bays of the RX418 natively support 3.5" and 2.5" SATA hard drives and SSDs. The drives are hot-swappable and there is also RAID management through Synology Disk Station Manager. The RX418 is equipped an eSATA port, which allows for connectivity with your host NAS, and operates using a 100W power supply that run using 100-240 VAC at 50/60 Hz. Included is an accessory pack, an AC power cord, and an eSATA cable. General Features - Storage Capacity Expansion
- When the storage capacity on a Synology 1 RU RackStation reaches its limit, Synology's RX418 expansion unit provides easy capacity expansion by adding four 3.5"/2.5" SATA drives to the system. The Synology RX418 can also be used as a dedicated local backup destination of a Synology 1 RU RackStation for comprehensive data protection.
- Plug-and-Play Design
- Simply connect the Synology RX418 to a corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
- Green and Easy to Manage
- Synology's DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.
UPC: 846504002986 - 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117552 In the Box - RX418 4-Bay Expansion Unit yabruwwwfs
- Accessory Pack
- AC Power Cord
- eSATA Cable
- Limited 3-Year Warranty
- 4 x Seagate - 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology 32TB RX418 NAS Expansion Unit Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology RX418 4-Bay Expansion Unit
| | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 48 TB | | Connections | 1 x eSATA | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Power Consumption | 23.26 W (Typical)
6.39 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 100 VDC | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | | | Cooling | 3 x 40 mm Fans | | Noise Level | 25.1 dBA | | Dimensions | 1.7 x 18.9 x 12.8" / 44.0 x 480.0 x 325.0 mm | | Weight | 9.4 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 20.7 x 15.7 x 5.6" | - 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 8.0 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 210 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.7 dB (Idle)
2.8 dB (Active) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 9.0 W (Active)
7.2 W (Idle)
0.6 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.7 lb / 780.2 g | | | | Box Dimensions (LxWxH) | 7.8 x 6.0 x 2.3" |
