User Manual for Synology 48TB RX418 NAS Expansion Unit Kit with Seagate NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology 48TB RX418 NAS Expansion Unit
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology 48TB RX418 NAS Expansion Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

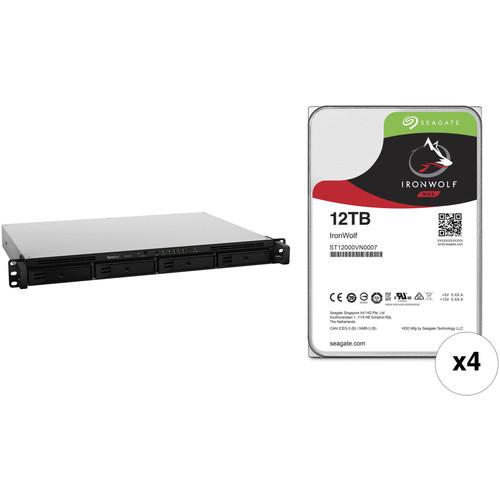

Product description This Kit combines the Synology RX418 4-Bay Expansion Unit with four Seagate 12TB IronWolf 7200 rpm SATA III 3.5" hard drives for a total storage capacity of 48TB. - Synology RX418 4-Bay Expansion Unit The RX418 4-Bay Expansion Unit from Synology is designed to provide storage expansion for their RS818+ RS818RP+, RS815+, RS815RP+, RS816, and RS815 NAS arrays. It can also be used as a dedicated local backup destination for Synology 1 RU RackStation arrays for comprehensive data protection.
The four drive bays of the RX418 natively support 3.5" and 2.5" SATA hard drives and SSDs. The drives are hot-swappable and there is also RAID management through Synology Disk Station Manager. The RX418 is equipped an eSATA port, which allows for connectivity with your host NAS, and operates using a 100W power supply that run using 100-240 VAC at 50/60 Hz. Included is an accessory pack, an AC power cord, and an eSATA cable. General Features - Storage Capacity Expansion
- When the storage capacity on a Synology 1 RU RackStation reaches its limit, Synology's RX418 expansion unit provides easy capacity expansion by adding four 3.5"/2.5" SATA drives to the system. The Synology RX418 can also be used as a dedicated local backup destination of a Synology 1 RU RackStation for comprehensive data protection.
- Plug-and-Play Design
- Simply connect the Synology RX418 to a corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
- Green and Easy to Manage
- Synology's DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.
UPC: 846504002986 - 4 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
- Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
- IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
- Enables user workload rate of 180TB/year
- Designed for always-on, always-accessible 24×7 performance
UPC: 763649123386 In the Box - RX418 4-Bay Expansion Unit duudrwqqwefdaczyywaawuyvutez
- Accessory Pack
- AC Power Cord
- eSATA Cable
- Limited 3-Year Warranty
- 4 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology 48TB RX418 NAS Expansion Unit Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology RX418 4-Bay Expansion Unit
| | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 48 TB | | Connections | 1 x eSATA | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Power Consumption | 23.26 W (Typical)
6.39 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 100 VDC | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | | | Cooling | 3 x 40 mm Fans | | Noise Level | 25.1 dBA | | Dimensions | 1.7 x 18.9 x 12.8" / 44.0 x 480.0 x 325.0 mm | | Weight | 9.4 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 20.7 x 15.7 x 5.6" | - 4 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 12.00 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 210 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | | | Spindle Speed (RPM) | 7200 RPM | | | | Mean Time Between Failures (MTBF) | 1000000.00 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 0.8 W (Standby)
0.8 W (Idle) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 1.8 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 7.8 x 6.0 x 2.4" |
