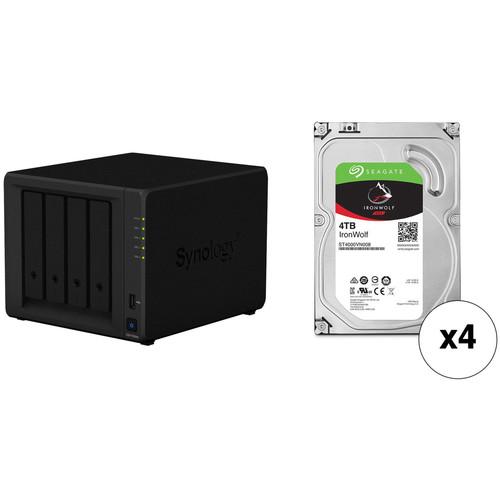

User Manual for Synology DiskStation 16TB DS418play NAS Enclosure Kit with Seagate NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DiskStation 16TB DS418play NAS Enclosure
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation 16TB DS418play NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology DiskStation DS418play 4-Bay NAS Enclosure with four Seagate 4TB IronWolf 5900 rpm SATA III 3.5" hard drives for a total storage capacity of 16TB. - Synology DiskStation DS418play 4-Bay NAS Enclosure Built with a dual-core processor, an AES-NI hardware encryption engine, Btrfs file system support, and Cinema 4K video transcoding, the DiskStation DS418play 4-Bay NAS Enclosure from Synology is designed as a multimedia-enhanced personal cloud station that can act as a centralized multimedia hub for those who need an all-around storage solution that has been optimized to not only safeguard data, but also transcode up to two channels of H.265/H.264 4K videos simultaneously. It is equipped with four drive bays that are capable of natively support 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its four drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts and 200 maximum concurrent connections.
The DS418play runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J3355 Dual-Core with a burst frequency of up to 2.5 GHz, and its 2GB of DDR3L RAM, which can be upgraded to 6GB, allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving encrypted sequential read speeds of up to 226 MB/s and encrypted sequential write speeds of up to 185 MB/s, while a dedicated hardware transcoding engine can transcode H.264 (AVC), H.265 (HEVC), MPEG-2, and VC-1 video at resolutions up to 4096 x 2160 at up to 30 fps via Video Station and DS video. This allows 4K videos to be converted and played on-the-fly on devices that do not natively support Ultra HD formats.
Also featured are two USB 3.0 Type-A ports which allow it to be connected to your Windows or Mac system, and network connectivity is achieved via the dual Gigabit Ethernet ports, which support link aggregation and failover and allow your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS418play supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS418play is engineered to be energy efficient. Not only does it offer two 92 x 92mm fans to help keep the system running cool at all times, its noise dampening design of 20.5 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS418play 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 90W AC power adapter, a power cord, and two RJ45 LAN cables. It is protected by a limited 2-year warranty. General Features - Massive Storage Capacity with 4K Ultra HD Capabilities
- Synology's DS418play is designed to be a centralized multimedia hub with large storage capacities, allowing users to transcode two channels of H.265/H.264 4K videos simultaneously. With a powerful built-in AES-NI hardware encryption engine, the DS418play also provides encrypted file transmission with sequential reads of up to 226 MB/s and sequential writes of up to 185 MB/s. It also features a 2.0 GHz Intel Celeron J3355 Dual-Core processor, 2GB of DDR3L RAM, dual Gigabit Ethernet ports with link aggregation and failover, and eco-friendly power usage, with 5.57W during HDD hibernation and 29.01W during HDD access.
- 4K Multimedia Server
- Access and stream your 4K media content virtually anytime and anywhere. The DS418play supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on-the-fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.
- Next-Generation File System for Improved Data Protection
- The Btrfs file system introduces advanced storage technologies and optimized snapshots to help prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder / User Quota System
Provides comprehensive quota control on user accounts and shared folders.
Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File- or Folder-Level Data Restoration
Accelerates data recovery, providing more flexibility for businesses.
Automatic File Self-Healing
Detects and recovers corrupted files without user intervention. - Synology Hybrid RAID (SHR)
- Storage management is easy with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system allowing you to create and expand storage volumes and migrate RAID types without requiring details on RAID. SHR provides 1- to 2-disk redundancy to safeguard your data during drive failures.
Cost Effective
SHR maximizes the data capacity of your RAID when different sizes of HDDs are used.
User-Friendly Management
For novice users who have no technical background and still want to protect their data using RAID technology, a convenient installation wizard will guide you through all the steps during your first installation.
Scalability
You can add new disks on-the-fly in Storage Manager with a simple click.
Flexibility
While creating a volume, you can plan ahead and leave empty and unallocated space for future usage. - User-Friendly File Access with QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
- Powered by Synology DSM
- Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices.
Collaboration Suite
Synology Office, Calendar, and Chat guarantee a secure and high-performance private communication and user-friendly content organization.
File Server/Management
Powerful built-in file management and sharing services.
DSM UI
Synology's DSM operating system has an intuitive user interface and powerful capabilities.
Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices. UPC: 846504002801 - 4 x Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 4TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 5900 rpm, a 3.5" form factor, and a 64MB cache, providing users with an ample storage capacity and data transfer speeds of up to 180 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1014 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 64MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117538 In the Box - DiskStation DS418play 4-Bay NAS Enclosure ycetsbbvewcwdyyb
- Accessory Pack
- 90W AC Power Adapter
- AC Power Cord
- 2 x RJ45 LAN Cables
- Limited 2-Year Warranty
- 4 x Seagate - 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation 16TB DS418play NAS Enclosure Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DiskStation DS418play 4-Bay NAS Enclosure
| | | Number of Bays | 4 x 3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 48 TB | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | Link Aggregation and Failover Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron J3355 Dual-Core | | Clock Speed | Base: 2.0GHz / Maximum Boost: 2.5 GHz | | Total Installed Memory | 2 GB DDR3L | | User-Replaceable Memory | 1 x 2 GB | | Total Memory Slots | 2 | | Maximum Memory Capacity | 6 GB | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 29.01 W (Typical)
5.57 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 90 VDC | | | | VPN Server Connections | 20 | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, as per Manufacturer | | | | Cooling | 2 x 92 mm Fans | | Noise Level | 20.5 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.5 x 7.8 x 8.8" / 166.0 x 199.0 x 223.0 mm | | Weight | 4.9 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 11.339 x 10.315 x 9.606" | - 4 x Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 4.0 TB | | Cache Memory | 64 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 180 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.3 dB (Idle)
2.5 dB (Active) | | | | Spindle Speed (RPM) | 5900 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 4.8 W (Active)
3.95 W (Idle)
0.5 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 80 G / 2.0 ms | | Storage Shock | 300 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.3 lb / 610.1 g | | | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.5" |
