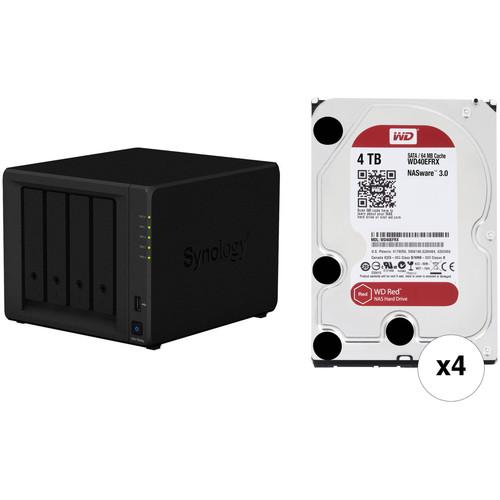

Synology DiskStation 16TB DS418play NAS Enclosure

User Manual for Synology DiskStation 16TB DS418play NAS Enclosure Kit with WD NAS Drives

• Product category: Network Attached Storage Drives Synology
• Brand: Synology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Synology Network Attached Storage Drives

Product description

• Synology DiskStation DS418play 4-Bay NAS Enclosure Built with a dual-core processor, an AES-NI hardware encryption engine, Btrfs file system support, and Cinema 4K video transcoding, the DiskStation DS418play 4-Bay NAS Enclosure from Synology is designed as a multimedia-enhanced personal cloud station that can act as a centralized multimedia hub for those who need an all-around storage solution that has been optimized to not only safeguard data, but also transcode up to two channels of H.265/H.264 4K videos simultaneously. It is equipped with four drive bays that are capable of natively support 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its four drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts and 200 maximum concurrent connections.

  The DS418play runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J3355 Dual-Core with a burst frequency of up to 2.5 GHz, and its 2GB of DDR3L RAM, which can be upgraded to 6GB, allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving encrypted sequential read speeds of up to 226 MB/s and encrypted sequential write speeds of up to 185 MB/s, while a dedicated hardware transcoding engine can transcode H.264 (AVC), H.265 (HEVC), MPEG-2, and VC-1 video at resolutions up to 4096 x 2160 at up to 30 fps via Video Station and DS video. This allows 4K videos to be converted and played on-the-fly on devices that do not natively support Ultra HD formats.

  Also featured are two USB 3.0 Type-A ports which allow it to be connected to your Windows or Mac system, and network connectivity is achieved via the dual Gigabit Ethernet ports, which support link aggregation and failover and allow your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS418play supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

  The DS418play is engineered to be energy efficient. Not only does it offer two 92 x 92mm fans to help keep the system running cool at all times, its noise dampening design of 20.5 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.

  The Synology DiskStation DS418play 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 90W AC power adapter, a power cord, and two RJ45 LAN cables. It is protected by a limited 2-year warranty.

  General Features

  Massive Storage Capacity with 4K Ultra HD Capabilities
  • Synology's DS418play is designed to be a centralized multimedia hub with large storage capacities, allowing users to transcode two channels of H.265/H.264 4K videos simultaneously. With a powerful built-in AES-NI hardware encryption engine, the DS418play also provides encrypted file transmission with sequential reads of up to 226 MB/s and sequential writes of up to 185 MB/s. It also features a 2.0 GHz Intel Celeron J3355 Dual-Core processor, 2GB of DDR3L RAM, dual Gigabit Ethernet ports with link aggregation and failover, and eco-friendly power usage, with 5.57W during HDD hibernation and 29.01W during HDD access.
  4K Multimedia Server
  • Access and stream your 4K media content virtually anytime and anywhere. The DS418play supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on-the-fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.
  Next-Generation File System for Improved Data Protection
  • The Btrfs file system introduces advanced storage technologies and optimized snapshots to help prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

    Flexible Shared Folder / User Quota System
    Provides comprehensive quota control on user accounts and shared folders.

    Snapshot Replication
    Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.

    File- or Folder-Level Data Restoration
    Accelerates data recovery, providing more flexibility for businesses.

    Automatic File Self-Healing
    Detects and recovers corrupted files without user intervention.
  Synology Hybrid RAID (SHR)
  • Storage management is easy with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system allowing you to create and expand storage volumes and migrate RAID types without requiring details on RAID. SHR provides 1- to 2-disk redundancy to safeguard your data during drive failures.

    Cost Effective
    SHR maximizes the data capacity of your RAID when different sizes of HDDs are used.

    User-Friendly Management
    For novice users who have no technical background and still want to protect their data using RAID technology, a convenient installation wizard will guide you through all the steps during your first installation.

    Scalability
    You can add new disks on-the-fly in Storage Manager with a simple click.

    Flexibility
    While creating a volume, you can plan ahead and leave empty and unallocated space for future usage.
  User-Friendly File Access with QuickConnect
  • Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
  Powered by Synology DSM
  • Cloud Station Suite
    Synchronize cross-platform data automatically with file version control on all your devices.

    Collaboration Suite
    Synology Office, Calendar, and Chat guarantee a secure and high-performance private communication and user-friendly content organization.

    File Server/Management
    Powerful built-in file management and sharing services.

    DSM UI
    Synology's DSM operating system has an intuitive user interface and powerful capabilities.

    Desktop Backup
    Simplified backup solution for your Windows, Mac, and mobile devices.

    Security
    Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
  UPC: 846504002801
• 4 x WD 4TB Red 5400 rpm SATA III 3.5" Internal NAS HDD (OEM) Designed with home and small office/business customers in mind, the 4TB Red 5400 rpm SATA III 3.5" Internal NAS HDD from WD is well-suited for NAS environments with up to eight 3.5" drive bays. Engineered to handle increased workloads, this 4TB drive operates using a SATA III 6 Gb/s interface, a 64MB cache, and a rotational speed of 5400 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 150 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <10 in 10¹⁴ non-recoverable read errors per bits read, error recovery controls, and 1,000,000 hours MTBF for 1-8 bay NAS systems. Also built into this drive are noise and vibration protection and WD's NASware 3.0 helps increase system compatibility, allowing WD Red drives to be more easily integrated with your existing network infrastructure.

  General Features

  Fill Your NAS with WD Red
  • Built for 1 to 8-bay NAS systems, WD Red lets users store their data in one unit
  NASware 3.0 Technology
  • Built into every WD Red hard drive, NASware 3.0's technology helps improves your system's storage performance by increasing compatibility, integration, upgradeability, and reliability
  Built for NAS Compatibility
  • Desktop drives aren't purpose-built for NAS, but WD Red drives with NASware are. WD's technology helps takes the guesswork out of selecting a drive. WD Red is for small NAS systems and WD's algorithm balances performance and reliability in NAS and RAID environments
  Desktop Drives vs. WD Red
  • Desktop hard drives are not designed for NAS environments. Do right by your NAS and choose a drive with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:

  • Compatibility: Without being tested for compatibility with your NAS system, improved performance is not guaranteed
  • Reliability: The always-on environment of a NAS or RAID is a hot one and desktop drives aren't typically tested in those conditions. WD Red is
  • Error Recovery Controls: WD Red NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system. Desktop drives are not typically designed for RAID environments where this can be an issue
  • Noise and Vibration Protection: Designed to operate solo, desktop drives offer little or no protection from the noise and vibration faced in a multi-drive system. WD Red drives are designed for multi-bay NAS systems
  WD Red for Home
  • Stream, backup, share, and organize your digital content at home with a NAS and WD Red drives designed to share content to the devices in your home. Red NASware helps increase your drives' compatibility with your devices, TV, stereo, and more
  WD Red for Small Business
  • WD Red is a good hard drive choice for 1 to 8 bay systems. NASware 3.0 allows for integration with your existing network so WD Red can share and backup files at the speed of your business. For larger businesses with up to 16 bays, use WD Red Pro
  3D Active Balance Plus
  • This helps ensure your data is protected from excessive vibration and noise in a NAS or RAID environment. This dual-plane balance control helps reduce the degradation of your drive over time
  Reliability
  • Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red drive with NASware 3.0 is designed for 24x7 environments
  Cooler Operations
  • By reducing power consumption, the operating temperature of your NAS stays cooler. With a lower temperature in your system, you can create a more reliable solution for your NAS
  UPC: 718037810058

• DiskStation DS418play 4-Bay NAS Enclosure rdvavyeufybzdbarva
• Accessory Pack
• 90W AC Power Adapter
• AC Power Cord
• 2 x RJ45 LAN Cables
• Limited 2-Year Warranty

• 4 x WD - 4TB Red 5400 rpm SATA III 3.5" Internal NAS HDD (OEM)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology DiskStation DS418play 4-Bay NAS Enclosure

  Number of Bays	4 x 3.5"
  Media Card Slots	None
  Maximum Filled Capacity	48 TB
  Connections	2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) 2 x RJ45 (Gigabit Ethernet)
  Compatible Drive Interface	SATA
  Hot-Swap Support	Yes
  Link Aggregation and Failover Support	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Processor	Intel Celeron J3355 Dual-Core
  Clock Speed	Base: 2.0GHz / Maximum Boost: 2.5 GHz
  Total Installed Memory	2 GB DDR3L
  User-Replaceable Memory	1 x 2 GB
  Total Memory Slots	2
  Maximum Memory Capacity	6 GB

  Supported Protocols	AFP CIFS/SMB CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI

  OS Compatibility	Windows 7 Windows 8.1 Windows 10 macOS 10.11 or Later
  File System Formats Supported	External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: Btrfs, EXT4
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Brazilian Portuguese Czech Danish Dutch English French Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish

  Power Consumption	29.01 W (Typical) 5.57 W (Standby)
  Power Source	AC Adapter
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	90 VDC

  VPN Server Connections	20

  Operating Temperature	40 to 104°F / 4 to 40°C
  Operating Humidity	5 to 95%
  Storage Temperature	-5 to 140°F / -21 to 60°C
  Certifications	BSMI, CE, EAC, FCC, RCM, as per Manufacturer

  Cooling	2 x 92 mm Fans
  Noise Level	20.5 dBA
  Status Monitoring	LED Indicator
  Dimensions	6.5 x 7.8 x 8.8" / 166.0 x 199.0 x 223.0 mm
  Weight	4.9 lb / 2.2 kg

  Box Dimensions (LxWxH)	11.339 x 10.315 x 9.606"

• 4 x WD 4TB Red 5400 rpm SATA III 3.5" Internal NAS HDD (OEM)

  Drive Capacity	4.0 TB
  Cache Memory	64 MB

  Interface	SATA III (6 Gb/s)
  Sequential Read Speed	150 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	28.0 dB (Active) 25.0 dB (Idle)

  Spindle Speed (RPM)	5400 RPM

  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	< 1 in 1014

  Power Draw	4.5 W (Active) 3.3 W (Idle) 0.4 W (Standby)
  Supported Voltage	12 VDC
  Current	1.75 A at 12 VDC

  Operating Shock	30 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	32 to 149°F / 0 to 65°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Certifications	RoHS, as per Manufacturer
  Dimensions (W x H x D)	4.0 x 5.8 x 1.0" / 101.6 x 147.3 x 25.4 mm
  Weight	1.5 lb / 0.7 kg

  Box Dimensions (LxWxH)	8.5 x 6.1 x 2.9"
