User Manual for Synology DiskStation 20TB DS218play 2-Bay NAS Enclosure Kit with WD NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DiskStation 20TB DS218play 2-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation 20TB DS218play 2-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

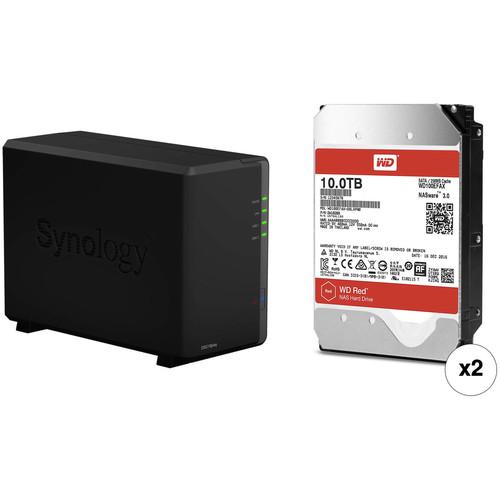

Product description This Kit combines the Synology DiskStation DS218play 2-Bay NAS Enclosure with two WD 10TB Red 5400 rpm SATA III 3.5" hard drives for a total storage capacity of 20TB. - Synology DiskStation DS218play 2-Bay NAS Enclosure Built with a Quad-Core processor, an AES-NI hardware encryption engine, Btrfs file system support, and Cinema 4K video transcoding, the DiskStation DS218play 2-Bay NAS Enclosure from Synology is designed for those who need an all-around storage solution that has been optimized to not only safeguard data, but also deliver fast file transfer speeds, real-time 4K video streaming, and the storage of Ultra HD content. It is equipped with two drive bays that are capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its two drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts and 200 maximum concurrent connections.
The DS218play runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.4 GHz Realtek RTD1296 Quad-Core and its 1GB of DDR4 RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read and write speeds of up to 112 MB/s, while a dedicated hardware transcoding engine can transcode H.264 (AVC), H.265 (HEVC), MPEG-2, and VC-1 video at resolutions up to 4096 x 2160 at up to 60 fps via Video Station and DS video. This allows 4K videos to be converted and played on-the-fly on devices that do not natively support Ultra HD formats.
Also featured are two USB 3.0 Type-A ports and one eSATA port, which allow it to be connected to your Windows or Mac system, and network connectivity is achieved via the integrated Gigabit Ethernet port, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS218play supports RAID 0 and 1, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS218play is engineered to be energy efficient. Not only does it offer a 92 x 92mm fan to help keep the system running cool at all times, its noise dampening design of 19.9 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS218play 2-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 60W AC power adapter, a power cord, and an RJ45 LAN cable. It is protected by a limited 2-year warranty. General Features - Entertainment with 4K Ultra HD Capabilities
- Designed for multimedia enthusiasts, the DS218play supports the real-time transcoding of 4K Ultra HD source content. With the availability of centralized management, the DS218play is well-suited for fast file sharing and reliable backups for all types of devices. It also features a 1.4 GHz Quad-Core processor, 112 MB/s read and write speeds, and eco-friendly power usage, with 5.16W during HDD hibernation and 16.79W during HDD access.
- Enjoy 4K Videos On-the-Go
- Access and stream your 4K media content virtually anytime and anywhere. The DS218play supports 4K live transcoding via Video Station and DS video, allowing 4K videos to be converted and played on TVs, smartphones, and other media players that do not natively support Ultra HD formats.
- Multimedia Powerhouse
- Access your multimedia content with an intuitive web-based interface.
Video Interface
Video Station lets you manage and organize movies, TV shows, and home video, and stream to other computers, smartphones, and media players.
Photo Station
Photo Station allows you to effectively organize and share photos and albums, while easily communicating with others using labels, comments, and more.
Audio Station
Audio Station is your personal music center, designed to intelligently sort and organize your audio files, and stream to Google Cast-enabled devices. Audio Station also supports lossless formats, helping to ensure pristine audio quality. - Integration with Your Mobile Devices
- Synology mobile applications, such as DS audio, DS Photo, and DS video, are designed to allow quick and secure access to your data.
- User-Friendly File Access with QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
- Powered by Synology DSM
- Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Public Cloud Integration
Back up and synchronize easily between your public and cloud accounts and your NAS
File Server/Management
Powerful built-in file management and sharing services.
DSM UI
Synology's DSM operating system has an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices. UPC: 846504002887 In the Box - DiskStation DS218play 2-Bay NAS Enclosure uryqezqrycbwxytscvrctvrbycbau
- Accessory Pack
- 60W AC Power Adapter
- AC Power Cord
- RJ45 LAN Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation 20TB DS218play 2-Bay NAS Enclosure Kit with WD NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DiskStation DS218play 2-Bay NAS Enclosure
| | | Number of Bays | 2 x 3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 24 TB | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Realtek RTD1296 Quad-Core | | Clock Speed | Base: 1.4GHz | | Total Installed Memory | 1 GB DDR4 | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 16.79 W (Typical)
5.16 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 60 VDC | | | | VPN Server Connections | 15 | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, as per Manufacturer | | | | Cooling | 1 x 92 mm Fan | | Noise Level | 19.9 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.5 x 3.9 x 8.9" / 165.0 x 100.0 x 225.5 mm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 11.4 x 10.7 x 4.8" |
