User Manual for Synology DiskStation 40TB DS418j NAS Enclosure Kit with WD NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DiskStation 40TB DS418j NAS Enclosure
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation 40TB DS418j NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

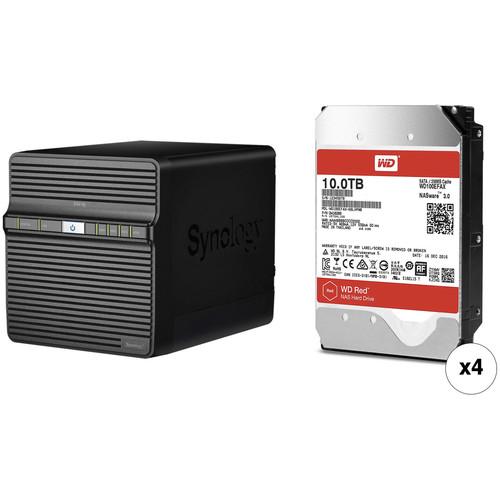

Product description This Kit combines the Synology DiskStation DS418j 4-Bay NAS Enclosure with four WD 10TB Red 5400 rpm SATA III 3.5" hard drives for a total storage capacity of 40TB. - Synology DiskStation DS418j 4-Bay NAS Enclosure Designed for home and personal users, the DiskStation DS418j 4-Bay NAS Enclosure from Synology allows users to effectively manage, protect, and share data. It comes equipped with four drive bays that can support both 3.5" and 2.5" SATA III (6 Gb/s) and SATA II (3 Gb/s) hard drives and solid-state drives. Using its four drive bays and hardware encryption, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 1024 users.
The DS418j runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.4 GHz Realtek RTD1293 Dual-Core that runs in 64-bit mode and its 1GB of DDR4 RAM allows frequently-used files and applications to be quickly accessed. The NAS can achieve encrypted read speeds of over 112 MB/s, encrypted write speeds of over 87 MB/s, and features two USB 3.0 Type-A ports, both of which allow it to be connected to your Windows, Mac, or Linux system. Internet connectivity is achieved via the included Gigabit Ethernet port, allowing your stored data to be shared with users throughout the network, including mobile devices, via QuickConnect.
Using the integrated media server on the DS418j, you can stream digital multimedia content from the DiskStation to media devices for local or remote playback. You may also stream movies and music to computers, mobile devices, Samsung TVs, Roku players, Apple TVs, Google Chromecasts, and DLNA devices to enjoy your favorite movies or shows stored on the DiskStation.
The DS418j also serves as a centralized backup target for all the computers in your home, whether it's a Windows, Mac, or other device. Synology's multi-version backup solution can help protect your PC and NAS against malicious attacks, including encryption-based ransomware threats. The DS418j supports a variety of RAID modes, including RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid, each of which provides performance, data redundancy, or a combination of both. For those who do not require RAID support, JBOD is also supported.
The DS418j is engineered to be energy efficient. Not only does it offer dual 80mm fans to help keep the system running cool at all times, its noise dampening design of 20.6 dBA makes for quiet operation. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS418j 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power adapter, an AC power cord, and an Ethernet cable. General Features - Stream Content to Your TV
- Turn your Synology NAS into a home media hub and stream your digital contents to your favorite devices such as computers, mobile devices, Samsung TVs, Roku players, Apple TVs, Google Chromecasts, and DLNA devices.
- Centralized Backup Storage for Your Computers
- Back up virtually any device, whether it is a Windows computer, Mac, or other. Synology's comprehensive multi-version backup solution can protect your PC and NAS against malicious attacks including the rising encryption-based ransomware threats.
- Synology Hybrid RAID (SHR) Technology
- Storage management has been made user-friendly with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system allowing users to create and expand storage volumes and migrate RAID types without requiring details on RAID. SHR provides 1- to 2-disk redundancy to help safeguard your data during drive failures.
- Cost-Effective
- SHR maximizes the data capacity of your RAID when different sizes of HDDs are used.
- Easy Management
- For novice users who have no technical background and still want to protect their data using RAID technology, a convenient installation wizard will help guide you through all the steps during your first installation.
- Scalability
- You can add new disks on the fly in Storage Manager with a simple click.
- Flexibility
- While creating a volume, you can plan ahead and leave empty and unallocated space for future usage.
- QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a simple customizable address, so that you can quickly access media and work files on Windows/Mac/Linux computers, laptops, or mobile devices without additional charges.
- Seamless Device Integration
- Synology mobile applications are designed to allow quick and secure access to your data wherever you are.
- Powered by Synology DSM
- Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Mac, PC, and mobile devices.
File Server/Management
Built-in file management and sharing services.
DSM UI
The operating system has an intuitive user interface with powerful capabilities.
Security
Built-in security tools are updated often to help tackle evolving threats and protect your devices.
Multimedia
Complete multimedia solution for management, streaming, and playback. UPC: 846504002740 In the Box - DiskStation DS418j 4-Bay NAS Enclosure cauvwwbfwwszdcvvzfeuuxufyfaqrxrtzs
- Accessory Pack
- AC Adapter
- AC Power Cord
- RJ45 Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation 40TB DS418j NAS Enclosure Kit with WD NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DiskStation DS418j 4-Bay NAS Enclosure
| | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 1 x RJ45 (Gigabit Ethernet)
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Clock Speed | Base: 1.4GHz | | Total Installed Memory | 1 GB DDR4 | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | iSCSI LUN | 10 | | iSCSI Target | 10 | | | | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 21.22 W (Typical)
8.97 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 90 VDC | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, FCC, as per Manufacturer | | | | Cooling | 2 x 80 mm Fans | | Noise Level | 20.6 dBA | | Status Monitoring | LED Indicator | | Dimensions | 7.2 x 6.6 x 9.1" / 184.0 x 168.0 x 230.0 mm | | Weight | 4.9 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 11.4 x 9.8 x 9.4" |
