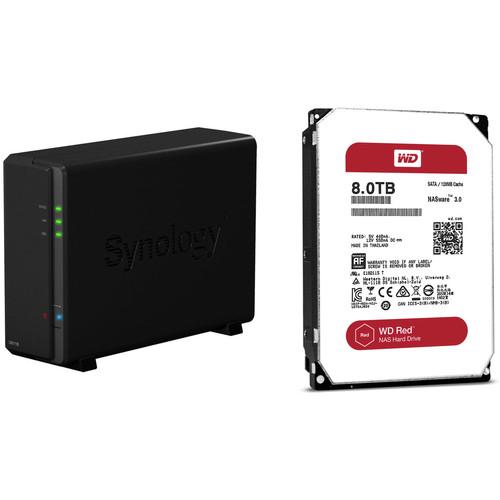

User Manual for Synology DiskStation 8TB DS118 1-Bay NAS Enclosure Kit with WD NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DiskStation 8TB DS118 1-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation 8TB DS118 1-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology DiskStation DS118 1-Bay NAS Enclosure with one WD 8TB Red 5400 rpm SATA III 3.5" hard drive for a total storage capacity of 8TB. - Synology DiskStation DS118 1-Bay NAS Enclosure Designed for small offices and home users, the DiskStation DS118 1-Bay NAS Enclosure from Synology allows users to share and synchronize files across multiple devices and public cloud storage services from virtually anywhere, while also helping to boost work productivity, enhance team collaboration, and transcode 10-bit 4K H.265 video on the fly. It is equipped with one drive bay that is capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs with a drive bay adapter. Using its single drive bay, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts.
The DS118 runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.4 GHz Realtek RTD1296 Quad-Core and its 1GB of DDR4 RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 113 MB/s and sequential write speeds up to 112 MB/s, while a dedicated hardware transcoding engine can transcode 10-bit 4K H.265 video on-the-fly. Also featured are two USB 3.0 Type-A ports which allows it to be connected to your Windows or Mac system, and network connectivity is achieved via the integrated Gigabit Ethernet port, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. Using the integrated 4K multimedia server on the DS118, Video Station and DS video can be used to convert and play 4K videos from most computers, mobile devices and other media players that don't support Ultra HD formats.
The DS118 is engineered to be energy efficient. Not only does it offer a 60 x 60mm fan to help keep the system running cool at all times, its noise dampening design of 16.7 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS118 1-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 36W AC power adapter, and an RJ45 LAN cable. It is protected by a limited 2-year warranty. General Features - Versatile, Powerful, and Compact Storage Server
- The Synology DS118 comes with a 1.4 GHz Quad-Core 64-bit processor and 1GB of DDR4 RAM, delivering data transfer speeds of up to 113 MB/s, 10-bit 4K H.265 video transcoding on the fly, and eco-friendly power stats of 9.4W during access and 4.22W during hibernation.
- Ultimate File Management and Sharing
- File Station is a web-based, fast, and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Windows or Mac. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. It supports SMB, FTP, AFP, NFS, and WebDAV, and is compatible with most environments.
- Synchronize Files Across Your Devices
- Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.
- User-Friendly File Access with QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
- 4K Multimedia Server
- Access and stream your favorite 4K content anywhere, anytime. The DS118 supports 10-bit 4K H.265 online transcoding. With Video Station and DS video, you can convert and play 4K videos from almost any computer, mobile device, or other media players that don't support Ultra HD formats.
- Powered by Synology DSM
- Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Public Cloud Integration
Back up and synchronize data easily between your public cloud accounts and your NAS.
DSM UI
Synology's DSM operating system has an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools and constantly updated to tackle evolving threats and protect your devices.
Multimedia
Complete multimedia solution for management, streaming, and playback. UPC: 846504002955 In the Box - DiskStation DS118 1-Bay NAS Enclosure
- Accessory Pack
- 36W AC Power Adapter
- RJ45 LAN Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation 8TB DS118 1-Bay NAS Enclosure Kit with WD NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DiskStation DS118 1-Bay NAS Enclosure
| | | Number of Bays | 1 x 3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 12 TB | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Realtek RTD1296 Quad-Core | | Clock Speed | Base: 1.4GHz | | Total Installed Memory | 1 GB DDR4 | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 9.4 W (Typical)
4.22 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 36 VDC | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, as per Manufacturer | | | | Cooling | 1 x 60 mm Fan | | Noise Level | 16.7 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.5 x 2.8 x 8.8" / 166.0 x 71.0 x 224.0 mm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 11.2 x 9.9 x 3.7" |
