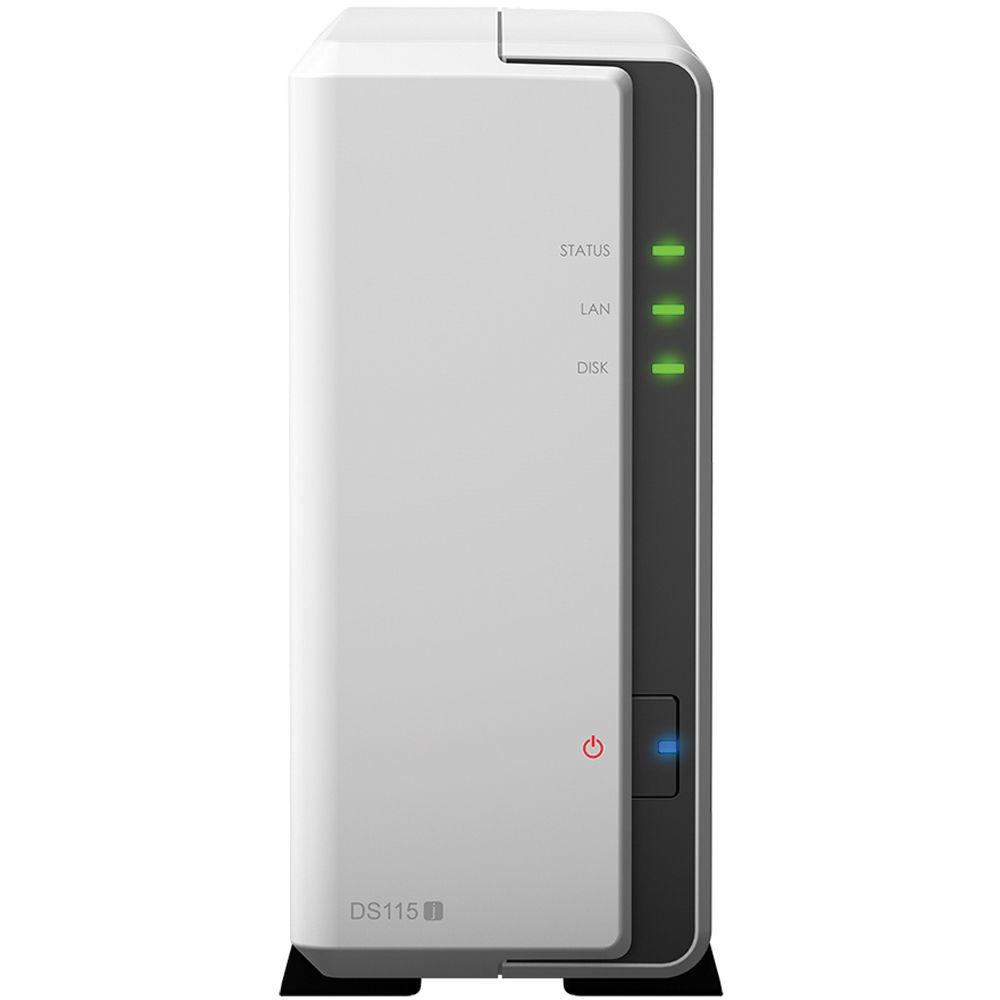

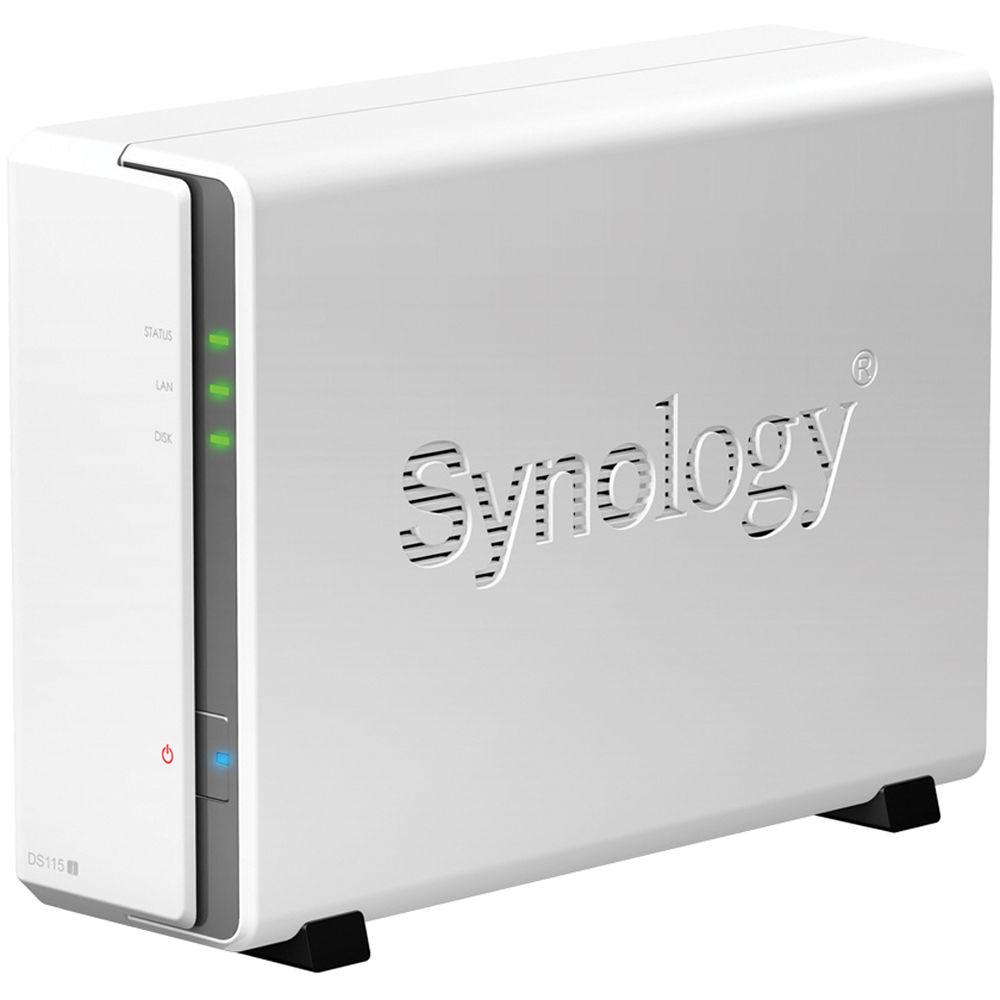

Product description The DiskStation DS115j Single Bay NAS Server from Synology is a file backup, storage, and sharing solution that comes equipped with one drive bay that is capable of natively supporting 3.5" SATA III and SATA II hard drives. When using a separately sold adapter, the DS115j supports 2.5" hard drives and solid state drives. Using its single drive bay, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 512 users.
The DS115j runs the Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. The NAS server is powered by an 800 MHz Marvell Armada 370 processor and 256MB of DDR3 RAM. The NAS is capable of achieving read speeds of 103 MB/s and features two USB 2.0 ports which allow it to be connected to your Windows, Mac, or Linux system. Internet connectivity is achieved via the included Gigabit Ethernet port, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android apps.
Using the integrated media server on the DS115j, you have the ability to stream digital multimedia content from the DiskStation to media devices for local or remote playback. You may also stream movies and music to a DLNA/UPnP compatible device to enjoy your favorite movies or shows stored on the DiskStation.
The DS115j also serves as a centralized backup target for all the computers in your home. Windows users can back up data to the DS115j via Windows Backup, while Mac OS X users will be able to take advantage of native Apple Time Machine integration. You have the ability to set the backup destination to not only be local hard disks, but also connected USB drives.
The DS115j is also engineered to be energy efficient. Not only does it offer a larger fan and smart airflow to keep the system running cool at all times, its noise dampening design of 18.1 dB(A) makes for quiet operation. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The DS115j operates on 100-240VAC at 50/60 Hz and includes an accessory pack, an AC Adapter, and an Ethernet cable. - DiskStation Manager (DSM) OS
- Synology DiskStation Manager (DSM) is a browser-based operating system which makes managing your Synology NAS simple. Featuring a user-friendly interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work
- Home Surveillance
- With the Surveillance Station add-on package and two free IP camera licenses, DS115j serves as your home surveillance hub. Simply connect multiple IP cameras to the home network, pair them with DS115j, and then easily view live surveillance feeds, record videos, or enjoy other advanced features like motion detection or push notifications. Support for thousands of IP cameras makes it easy to find compatible models and brands. Safeguard your home, without breaking the bank
- Data Backup
- The DS115j is good backup destination for your data, as it supports Windows Backup for Windows users, whereas Mac users enjoy native Time Machine support. You can choose your backup destination to not only be local hard disks, but also connected USB storage devices. Additionally, Backup & Replication allows you to schedule backup tasks and restore the server to any particular point in time, while still minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions
- File Station
- File Station is a feature to share and manage files stored on DS115j. Just drag-and-drop and you can upload data from Mac or PC. Advanced filters make it easy to search for documents, photos, or videos. You can reach your files on mobile devices via DS file - a dedicated mobile app for file access, management, and sharing. HTTPS, SSL/TSL encryption, and link expiry dates also ensure file sharing over the Internet at a high security level
- File Sharing
- Enjoy file sharing across Windows, Mac, and Linux platforms as DS115j offers network protocol support including FTP, SMB2, AFP, NFS, and WebDAV. With Windows AD and LDAP integration, the DS115j can fit into any existing network environment without any need for IT administrators to maintain two sets of credentials. You also won't worry about missing files with the Recycle Bin feature which is supported on AFP, CIFS, File Station, and WebDAV. All files deleted in a shared folder will be automatically moved into the Recycle Bin
- Cloud Service
- Cloud Station lets you sync files among DiskStations and multiple devices, including Windows PC, Mac, Linux, iOS, Android, and Windows mobile devices, while 2-way sync allows file synchronization among different DiskStations. You can even sync files between Google Drive, Dropbox, Baidu, and DiskStation
- Connect Your Data Quickly and Easily
- With Synology QuickConnect, you don't have to deal with a difficult DDNS setup. QuickConnect frees you from complicated router configuration and port-forwarding, so your entertainment and work files can be accessed on any computer, laptop, or mobile devices instantly without extra charge
- Multimedia Libraries
- The DS115j provides a central platform to organize, backup, and share photos, music, and video collections. Featuring a user-friendly interface, the Synology packages - Photo Station, Audio Station, and Video Station - let you build an entertainment hub. Since everything is saved on the DS115j, you can enjoy a more customizable content arrangement and sharing privileges, without having to worry about extra monthly fees for storage capacity
- DLNA Certified Media Server
- As a DLNA Certified DMS (Digital Media Server), DS115j can serve as a primary media server, with the capability to host digital multimedia content for local or remote playback. Once connected to a router, DS115j streams music, photos, and videos to DLNA-compliant devices, such as DLNA TVs or gaming consoles without any pre-configuration. You can even browse and select content on DS115j using DS audio and designate a DLNA player within the same local network to play it
- Stream Content to Your TV
- The DS115j is compatible with other devices, letting you manage and enjoy digital content with the devices you already have: computers, mobile devices, TVs, DLNA devices, and stereos. Synology offers the latest support for TV streaming, including Samsung TV, Roku players, Apple TV, and Google Chromecast. This let you stream digital content stored on DS115j to your widescreen TV effortlessly
- Apps
- Synology offers mobile apps, including DS audio, DS video, DS photo+, DS cloud, DS file, DS download, and DS cam. These apps allow you to access and manage the contents of your DS115j with smartphones and tablets. QuickConnect helps eliminate complicated router configurations or port forwarding, meaning that with Synology mobile apps, your multimedia collection and work files are always on the go.
The full list of available apps includes:
- Antivirus Essential
- Audio Station
- Cloud Station (128 max concurrent file transfers)
- Cloud Sync, Directory Server
- DNS Server
- Download Station (20 max concurrent download tasks)
- Glacier Backup, HiDrive Backup
- iTunes Server, Java Manager
- Mail Server
- Mail Station
- Media Server (DLNA Certification)
- Photo Station
- RADIUS Server
- Time Backup (Maximum Task Number = 1)
- Video Station (Video Transcoding = Group 2)
- VPN Server (Maximum Connections = 5)
The surveillance station is also available as a downloadable app and has the following specs: - Max IP Cam (Licenses required): 8 (including 2 free licenses)
- Total FPS (H.264): 300 FPS @ 720p (1280x800), 80 FPS @ 1080p (1920x1080), 50 FPS @ 3M (2048x1536), 20 FPS @ 5M (2591x1944)
- Total FPS (MJPEG): 120 FPS @ 720p (1280x800), 40 FPS @ 1080p (1920x1080), 30 FPS @ 3M (2048x1536), 20 FPS @ 5M (2591x1944)
- Eco-Friendly NAS Server
- The DS115j is designed with energy efficiency in mind. DS115j only consumes 3.85W in HDD Hibernation and 12.6W in access. With special fan and the smart airflow design, the DS115j keeps the system running cool 24/7, while its noise dampening design makes it quieter than PC counterparts
- Optional Accessories
- Optional available accessories include:
- Remote
- Camera License Pack
- Disk Holder: Type C
- VS240HD
UPC: 846504001774 In the Box Synology DiskStation DS115j Single Bay NAS Server Accessory Pack AC Power Adapter RJ-45 LAN Cable Limited 2-Year Warranty Brochure PDF 919.6kbucaevedubrytrubqavyy Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS115j Single Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

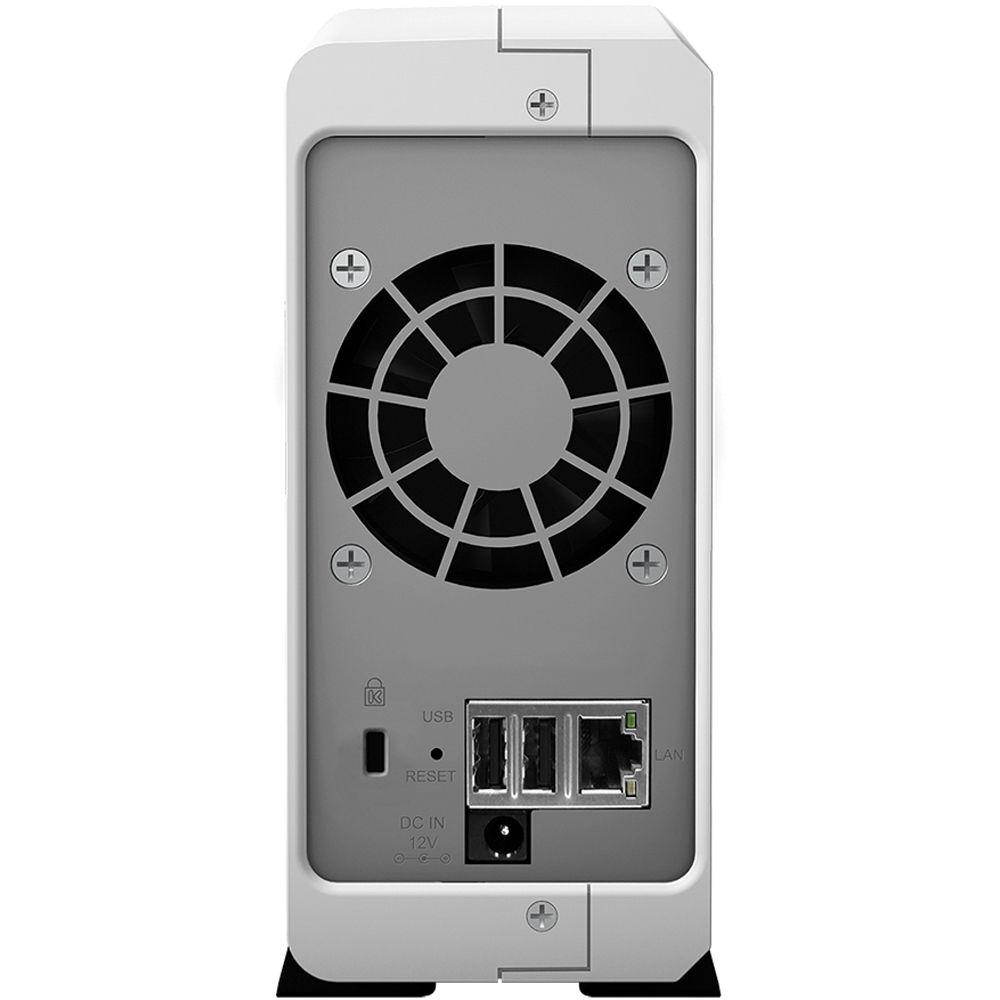

Technical parametersSynology DS115J Specs | | | Number of Bays | 1 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 16 TB | | Connections | 1 x RJ45 (Gigabit Ethernet)
2 x USB Type-A (USB 2.0 (480 Mb/s)) | | Compatible Drive Interface | SATA III | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Marvell Armada 370 Dual-Core | | Clock Speed | Base: 800MHz | | | | iSCSI LUN | 10 | | iSCSI Target | 10 | | Max Concurrent Connections | 64 | | Max Folders | 256 | | Max Groups | 128 | | Max Sync Tasks | 2 | | Max User Accounts | 512 | | Max Volume Number | 256 | | | | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS
Internal: EXT4 | | | | Power Consumption | 12.6 W (Typical)
3.85 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 60 VDC | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 1 x 60 mm Fan | | Noise Level | 18.1 dBA | | Dimensions | 6.5 x 2.8 x 8.8" / 166.0 x 71.0 x 224.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 7.0" |
