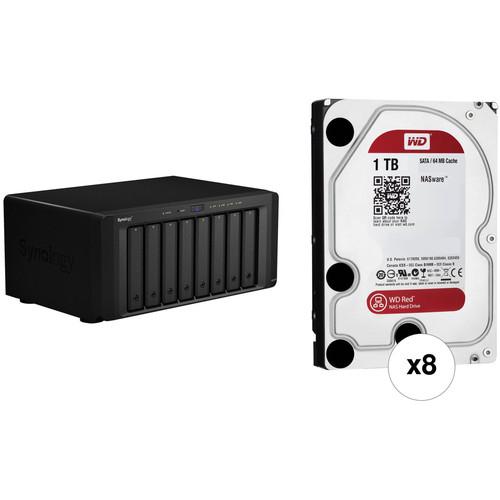

User Manual for Synology DiskStation DS1815 8TB 8-Bay NAS Server Kit Click to enlarge the picture
Contents of the user manual for the Synology DiskStation DS1815 8TB 8-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation DS1815 8TB 8-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology DiskStation DS1815+ 8-Bay NAS Server with 8 x 1TB internal hard drives for a total capacity of 8TB.
The DiskStation DS1815+ 8-Bay NAS Server has eight drive bays that are capable of housing either 2.5" or 3.5" SATA III and SATA II hard drives and solid state drives. This NAS is powered by a 2.4 GHz Intel Atom C2538 Quad-Core processor with an integrated AES-NI hardware encryption engine. You also benefit from 2GB (1 x 2GB) of DDR3 RAM which is expandable up to 6GB (2GB + 4GB) to help ensure smooth operation. Enhanced data throughput of 450.68 MB/s read and 429.1 MB/s write speeds make it easy to transfer large files quickly, and with link aggregation support you can rest assured the connection will remain secure.
This energy efficient NAS storage enclosure supports VMware, Citrix, and Hyper-V for virtualization environments and comes VMware vSphere 5 and VAAI integration certified. Additionally, the DS1815+ can virtually replace more complex storage setups as it offers both Windows ACL and LDAP support allowing for easy integration into existing workgroup environments. If the current data capacity offered by the DS1815+ is no longer sufficient, the NAS enclosure can be connected to dedicated expansion units to expand storage capacity up to 108TB.
The DS1815+ enclosure comes equipped with two 120 x 120 mm fans to keep everything cool. On the back you will find four Gigabit LAN ports, two USB 3.0 ports, one reset button, and two eSATA connectors making it easy to connect peripherals such as external hard drives, thumb drives, and more. The front features dedicated LED indicators to depict drive status, eight hard drive trays complete with tray locks, and one power button. Included with this kit is an accessory pack, an AC power cord, and two RJ-45 LAN cables. - 8 x WD 1TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit Designed with home and small office/business customers in mind, the 1TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit from WD is well-suited for NAS environments with up to eight 3.5" drive bays. Engineered to handle increased workloads, this 1TB drive operates using a SATA III 6 Gb/s interface, a 64MB cache, and a rotational speed of 5400 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 150 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <10 in 1014 non-recoverable read errors per bits read, error recovery controls, and 1,000,000 hours MTBF for 1-8 bay NAS systems. Also built into this drive are noise and vibration protection and WD's NASware 3.0 helps increase system compatibility, allowing WD Red drives to be more easily integrated with your existing network infrastructure.
General Features - Fill Your NAS with WD Red
- Built for 1 to 8-bay NAS systems, WD Red lets users store their data in one unit
- NASware 3.0 Technology
- Built into every WD Red hard drive, NASware 3.0's technology helps improves your system's storage performance by increasing compatibility, integration, upgradeability, and reliability
- Built for NAS Compatibility
- Desktop drives aren't purpose-built for NAS, but WD Red drives with NASware are. WD's technology helps takes the guesswork out of selecting a drive. WD Red is for small NAS systems and WD's algorithm balances performance and reliability in NAS and RAID environments
- Desktop Drives vs. WD Red
- Desktop hard drives are not designed for NAS environments. Do right by your NAS and choose a drive with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:
- Compatibility: Without being tested for compatibility with your NAS system, improved performance is not guaranteed
- Reliability: The always-on environment of a NAS or RAID is a hot one and desktop drives aren't typically tested in those conditions. WD Red is
- Error Recovery Controls: WD Red NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system. Desktop drives are not typically designed for RAID environments where this can be an issue
- Noise and Vibration Protection: Designed to operate solo, desktop drives offer little or no protection from the noise and vibration faced in a multi-drive system. WD Red drives are designed for multi-bay NAS systems
- WD Red for Home
- Stream, backup, share, and organize your digital content at home with a NAS and WD Red drives designed to share content to the devices in your home. Red NASware helps increase your drives' compatibility with your devices, TV, stereo, and more
- WD Red for Small Business
- WD Red is a good hard drive choice for 1 to 8 bay systems. NASware 3.0 allows for integration with your existing network so WD Red can share and backup files at the speed of your business. For larger businesses with up to 16 bays, use WD Red Pro
- 3D Active Balance Plus
- This helps ensure your data is protected from excessive vibration and noise in a NAS or RAID environment. This dual-plane balance control helps reduce the degradation of your drive over time
- Reliability
- Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red drive with NASware 3.0 is designed for 24x7 environments
- Cooler Operations
- By reducing power consumption, the operating temperature of your NAS stays cooler. With a lower temperature in your system, you can create a more reliable solution for your NAS
UPC: 718037815350 In the Box - 8 x WD - 1TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit vwfuxvvrcz
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS1815 8TB 8-Bay NAS Server Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 8 x WD 1TB Red 5400 rpm SATA III 3.5" Internal NAS HDD Retail Kit
| | | Drive Capacity | 1.0 TB | | Cache Memory | 64 MB | | | | Interface | SATA III (6 Gb/s) | | Sequential Read Speed | 150 MB/s | | Sequential Write Speed | 150 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 22.0 dB (Active)
21.0 dB (Idle) | | | | Spindle Speed (RPM) | 5400 RPM | | | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | | | | Power Draw | 3.3 W (Active)
2.3 W (Idle)
0.4 W (Standby) | | Current | 1.2 A at 12 VDC | | | | Operating Shock | 30 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions (W x H x D) | 1.0 x 5.7 x 4.0" / 26.1 x 144.8 x 101.6 mm | | Weight | 1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 7.5 x 5.0 x 2.5" |
