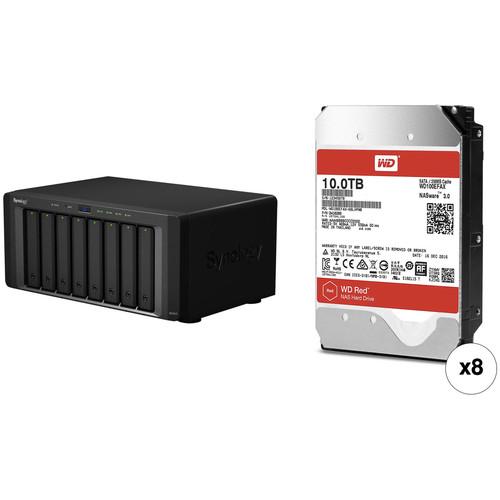

User Manual for Synology DiskStation DS1817 80TB 8-Bay NAS Enclosure Kit with WD NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DiskStation DS1817 80TB 8-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DiskStation DS1817 80TB 8-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology DiskStation DS1817 8-Bay NAS Enclosure with eight WD 10TB Red 5400 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 80TB. - Synology DiskStation DS1817 8-Bay NAS Enclosure The DiskStation DS1817 8-Bay NAS Enclosure from Synology is a powerful all-in-one private cloud solution. It comes equipped with eight drive bays that are capable of natively supporting 3.5" and 2.5" SATA hard drives, as well as 2.5" SATA SSDs. Using its eight drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 users. For those who wish to increase the overall capacity of their DS1817, it can be paired with two DX517 expansion units.
The DS1817 runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is an Annapurna Labs Alpine AL-314 Quad-Core that runs at 1.7 GHz and its 4GB of DDR3L RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 1577 MB/s and features two USB 3.0 Type-A ports and two eSATA ports which allow it to be connected to your system. Internet connectivity is achieved via the two 10 Gigabit Ethernet ports and two Gigabit Ethernet ports, each of which features link aggregation and failover support, allowing your stored data to be shared with users throughout the network.
For those who require RAID support, the DS1817 supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized. For system expansion, the RAM may be upgraded to 8GB using two 4GB modules.
The DiskStation DS1817 is certified with Windows Server 2012 and Server 2012 R2, in addition to being WMware and Citrix-ready, and OpenStack-compatible. It operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power cord, and two Ethernet cables. Protection is provided by a limited 3-year hardware warranty. General Features - Synchronize Files Across Your Devices
- Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space.
- File Management and Sharing
- File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, and WebDAV, and is compatible with most environments.
- Real-time Collaboration on Your Private Cloud
- Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security of private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
- Maximize System Uptime with Synology High Availability (SHA)
- Enjoy a complete hardware and data redundancy solution with Synology High Availability (SHA) in case of unforeseen disasters. After joining two Synology NAS devices to form a high-availability cluster, the NAS acting as the active server will handle all data operations and services, while cloning the entire system to the passive standby server.
- Fully Certified Storage Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Surveillance Station
- Complete home surveillance solution for recording and monitoring.
- Desktop Backup
- Simplified backup solution for your Mac, PC, and mobile devices.
- Public Cloud Integration
- Easily backup and synchronize to and from your public cloud accounts.
- DSM UI
- Integrated operating system with an intuitive user interface and powerful capabilities.
- Security
- Comprehensive built-in security utilities constantly updated to tackle evolving threats and protect your devices.
- Multimedia
- Complete multimedia solution for management, streaming, and playback.
UPC: 846504002726 In the Box - DiskStation DS1817 8-Bay NAS Enclosure twfswzcfuuervccwarxbbtxwrusrarq
- 1 x Accessory Pack
- 1 x AC Power Cord
- 2 x RJ45 LAN Cables
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS1817 80TB 8-Bay NAS Enclosure Kit with WD NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DiskStation DS1817 8-Bay NAS Enclosure
| Number of Bays | 8 x 2.5"/3.5" | Media Card Slots | None | Connections | 2 x RJ45 (Gigabit Ethernet) 2 x eSATA 2 x RJ45 (10GbE) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | Compatible Drive Interface | SATA | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid | Hot-Swap Support | Yes | Link Aggregation and Failover Support | Yes | | Total Raw Capacity | None | Type | None | Flash Memory | None | | Processor | ARM Cortex-A15 (Alpine AL-314) Quad-Core | Clock Speed | Base: 1.7GHz | User-Replaceable Memory | 1 x 4 GB | Total Memory Slots | 2 | Maximum Memory Capacity | 8 GB | | Supported Protocols | AFP CIFS CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI | iSCSI LUN | 256 | iSCSI Target | 32 | Max Concurrent Connections | 1024 | Max Folders | 256 | Max Groups | 256 | Max Sync Tasks | 4 | Max User Accounts | 2048 | Max Volume Number | 256 | | OS Compatibility | Windows Server 2012 Windows 7 or Later macOS 10.10 or Later | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS Internal: EXT4 | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Power Consumption | 59.1 W (Typical) 26.4 W (Standby) | Power Source | Internal Power Supply | PSU Wattage | 1 x 250 W | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 40 to 104°F / 4 to 40°C | Operating Humidity | 5 to 95% | Storage Temperature | -5 to 140°F / -21 to 60°C | Certifications | BSMI, CE, FCC, as per Manufacturer | | Cooling | 2 x 120 mm Fans | Noise Level | 24.2 dBA | Dimensions | 6.2 x 13.4 x 9.2" / 157.0 x 340.0 x 233.0 mm | Weight | 11.7 lb / 5.3 kg | | Box Dimensions (LxWxH) | 17.8 x 14.0 x 11.5" |
