Product description

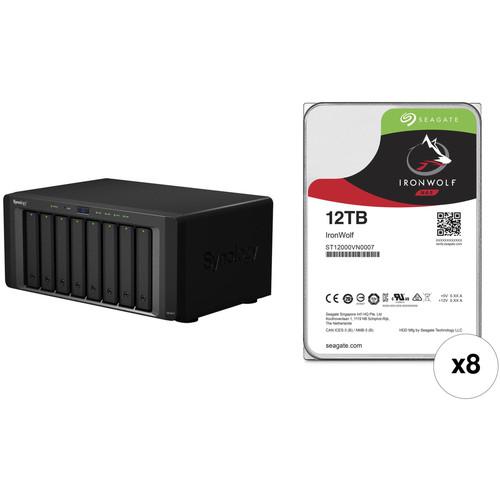

• Synology DiskStation DS1817 8-Bay NAS Enclosure The DiskStation DS1817 8-Bay NAS Enclosure from Synology is a powerful all-in-one private cloud solution. It comes equipped with eight drive bays that are capable of natively supporting 3.5" and 2.5" SATA hard drives, as well as 2.5" SATA SSDs. Using its eight drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 users. For those who wish to increase the overall capacity of their DS1817, it can be paired with two DX517 expansion units.

  The DS1817 runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is an Annapurna Labs Alpine AL-314 Quad-Core that runs at 1.7 GHz and its 4GB of DDR3L RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 1577 MB/s and features two USB 3.0 Type-A ports and two eSATA ports which allow it to be connected to your system. Internet connectivity is achieved via the two 10 Gigabit Ethernet ports and two Gigabit Ethernet ports, each of which features link aggregation and failover support, allowing your stored data to be shared with users throughout the network.

  For those who require RAID support, the DS1817 supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized. For system expansion, the RAM may be upgraded to 8GB using two 4GB modules.

  The DiskStation DS1817 is certified with Windows Server 2012 and Server 2012 R2, in addition to being WMware and Citrix-ready, and OpenStack-compatible. It operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power cord, and two Ethernet cables. Protection is provided by a limited 3-year hardware warranty.

  General Features

  Synchronize Files Across Your Devices
  • Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space.
  File Management and Sharing
  • File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, and WebDAV, and is compatible with most environments.
  Real-time Collaboration on Your Private Cloud
  • Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security of private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
  Maximize System Uptime with Synology High Availability (SHA)
  • Enjoy a complete hardware and data redundancy solution with Synology High Availability (SHA) in case of unforeseen disasters. After joining two Synology NAS devices to form a high-availability cluster, the NAS acting as the active server will handle all data operations and services, while cloning the entire system to the passive standby server.
  Fully Certified Storage Virtualization Solutions
  • Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
  Surveillance Station
  • Complete home surveillance solution for recording and monitoring.
  Desktop Backup
  • Simplified backup solution for your Mac, PC, and mobile devices.
  Public Cloud Integration
  • Easily backup and synchronize to and from your public cloud accounts.
  DSM UI
  • Integrated operating system with an intuitive user interface and powerful capabilities.
  Security
  • Comprehensive built-in security utilities constantly updated to tackle evolving threats and protect your devices.
  Multimedia
  • Complete multimedia solution for management, streaming, and playback.
  UPC: 846504002726
• 8 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  • IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
  • Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
  • IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
  • Enables user workload rate of 180TB/year
  • Designed for always-on, always-accessible 24×7 performance
  UPC: 763649123386

• DiskStation DS1817 8-Bay NAS Enclosure bfxbwwzxuuxddvuq
• 1 x Accessory Pack
• 1 x AC Power Cord
• 2 x RJ45 LAN Cables
• Limited 3-Year Warranty

• 8 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD bfxbwwzxuuxddvuq

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology DiskStation DS1817 8-Bay NAS Enclosure

  Number of Bays	8 x 2.5"/3.5"
  Media Card Slots	None
  Connections	2 x RJ45 (Gigabit Ethernet) 2 x eSATA 2 x RJ45 (10GbE) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
  Compatible Drive Interface	SATA
  RAID Modes	RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
  Hot-Swap Support	Yes
  Link Aggregation and Failover Support	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Processor	ARM Cortex-A15 (Alpine AL-314) Quad-Core
  Clock Speed	Base: 1.7GHz
  User-Replaceable Memory	1 x 4 GB
  Total Memory Slots	2
  Maximum Memory Capacity	8 GB

  Supported Protocols	AFP CIFS CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI
  iSCSI LUN	256
  iSCSI Target	32
  Max Concurrent Connections	1024
  Max Folders	256
  Max Groups	256
  Max Sync Tasks	4
  Max User Accounts	2048
  Max Volume Number	256

  OS Compatibility	Windows Server 2012 Windows 7 or Later macOS 10.10 or Later
  File System Formats Supported	External: EXT3, EXT4, FAT, HFS+, NTFS Internal: EXT4
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari

  Power Consumption	59.1 W (Typical) 26.4 W (Standby)
  Power Source	Internal Power Supply
  PSU Wattage	1 x 250 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Operating Temperature	40 to 104°F / 4 to 40°C
  Operating Humidity	5 to 95%
  Storage Temperature	-5 to 140°F / -21 to 60°C
  Certifications	BSMI, CE, FCC, as per Manufacturer

  Cooling	2 x 120 mm Fans
  Noise Level	24.2 dBA
  Dimensions	6.2 x 13.4 x 9.2" / 157.0 x 340.0 x 233.0 mm
  Weight	11.7 lb / 5.3 kg

  Box Dimensions (LxWxH)	17.8 x 14.0 x 11.5"

• 8 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	12.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Mean Time Between Failures (MTBF)	1000000.00 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	0.8 W (Standby) 0.8 W (Idle)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"
