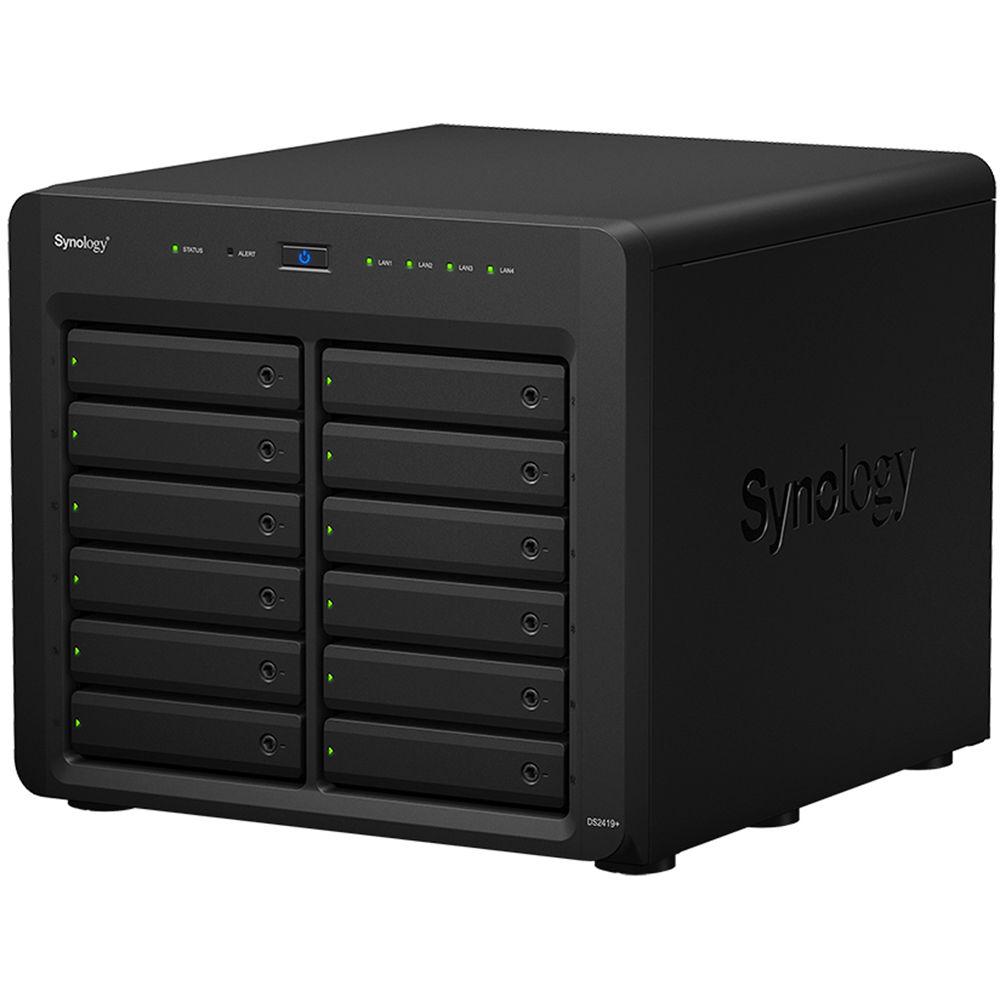

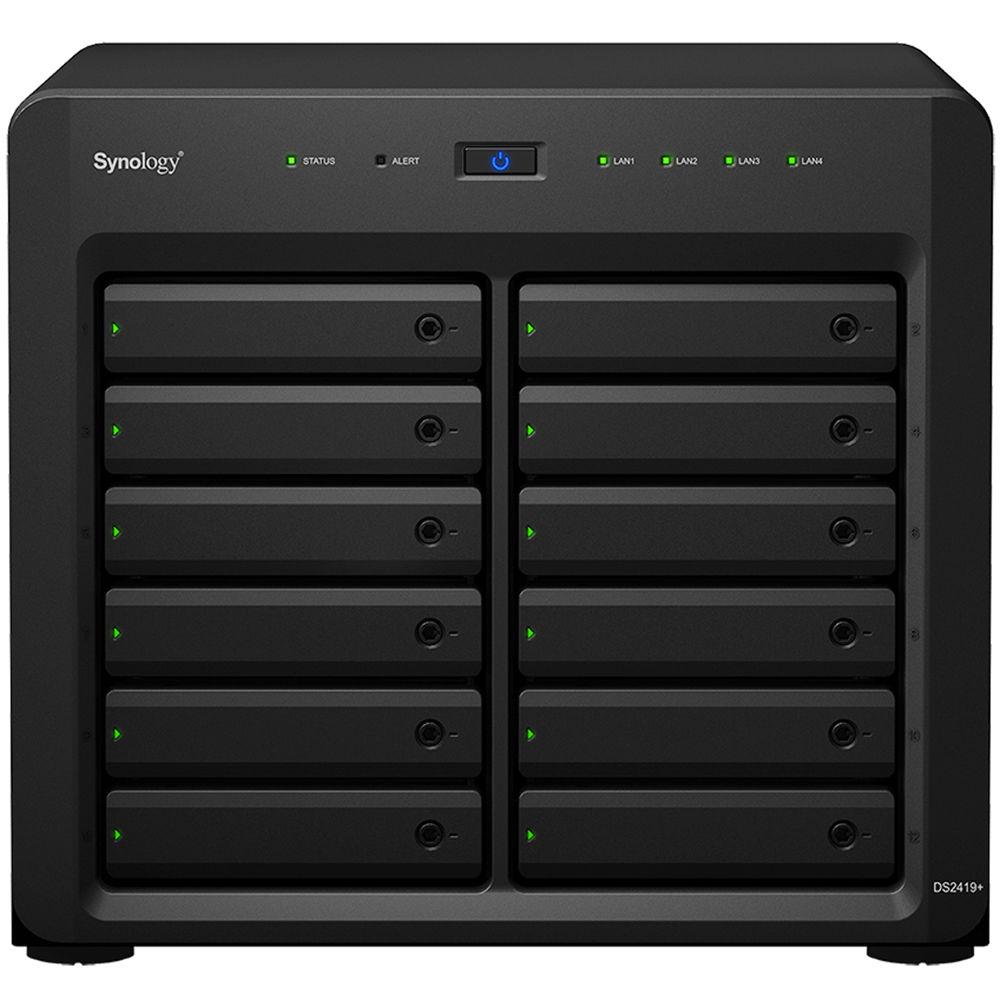

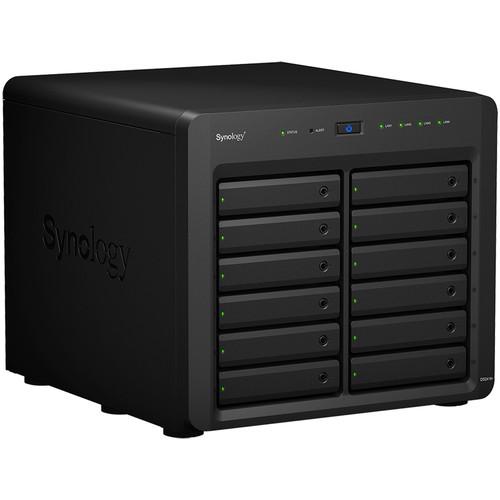

Product description Built with a quad-core processor, an AES-NI hardware encryption engine, and Btrfs file system support, the DiskStation DS2419+ 12-Bay NAS Enclosure from Synology is designed for small and medium-sized businesses that require massive and flexible storage capacities, but do not need to store their NAS in a standard rack frame. It can serve as a file server, a centralized backup target, or a hub-and-spoke backup target for your business, providing performance and quality.
The DS2419+ is equipped with a 2.1 GHz Intel Atom C3538 Quad-Core processor and 4GB of 2133 MHz DDR4 memory that can be expanded up to 32GB. Under a 10GbE network environment, the DS2419+ delivers sequential reads of up to 1716 MB/s and sequential writes of up to 671 MB/s. If your system needs a boost, there is a PCIe 3.0 slot that can accept an optional 10GbE network interface card or an M.2 adapter card for setting up M.2 NVMe/SATA SSDs as cache to improve random read/write IOPS. This NAS is equipped with 12 drive bays that are capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs for data storage. The data stored on this NAS can include videos, music, photos, and documents with up to 2048 user accounts and 1000 maximum concurrent connections.

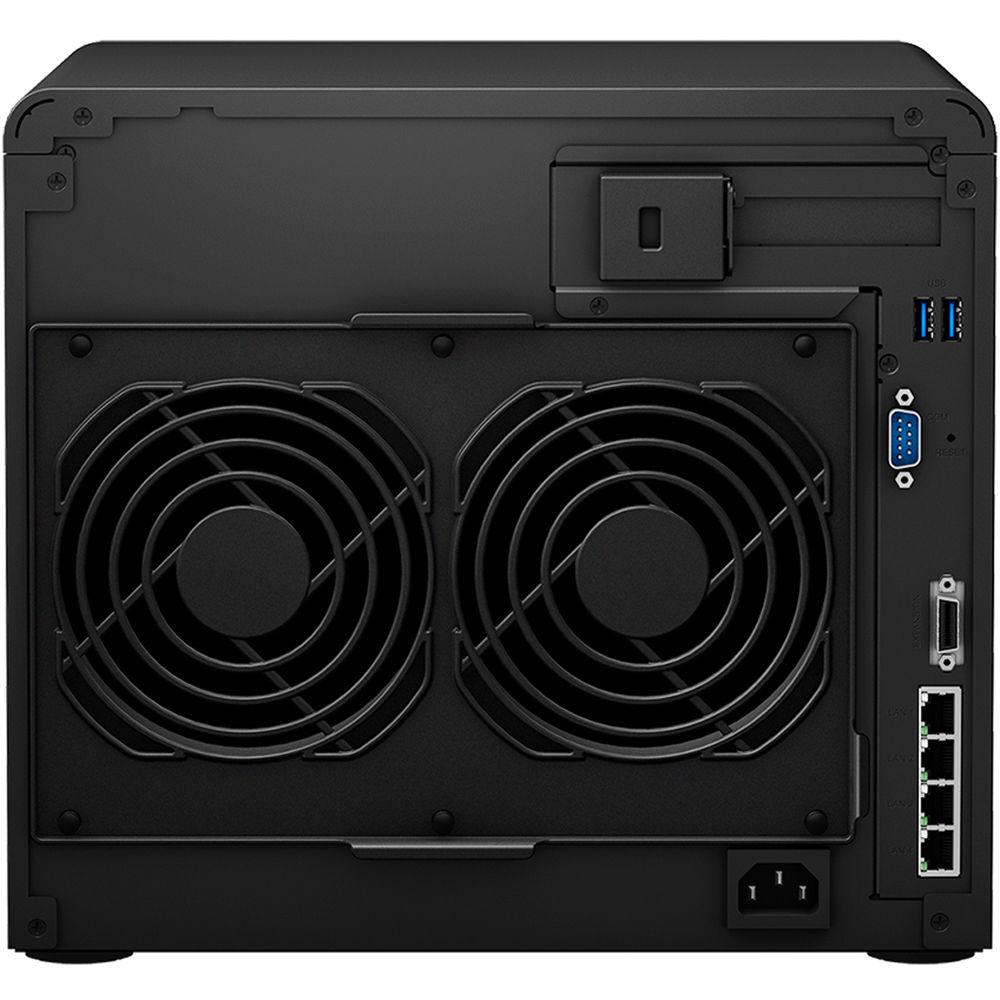

The DS2419+ runs on the Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Also featured are two USB 3.0 Type-A ports, one 9-pin serial port, and one expansion port allow it to be connected to your Windows, Mac, or Linux system, plus one DX1215 expansion unit. Network connectivity is achieved via the four Gigabit Ethernet ports that support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. For those who require RAID support, the DS2419+ supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS2419+ is engineered to be energy efficient. Not only does it offer two 120 x 120 x 25mm fans to help keep the system running cool always, its noise-dampening design makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The Synology DiskStation DS2419+ 12-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power cord, and two RJ45 LAN cables. Protection is provided by a limited 3-year warranty. General Features - Virtualization Environment
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with a simple management interface. VMware vSphere 6.5 and VAAI integration helps to offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rates, while OpenStack Cinder support transforms your Synology NAS into a block-based storage component.
Synology's Virtual Machine Manager adds many capabilities to your NAS. Set up and run various virtual machines including Windows, Linux, and Virtual DSM, so that you can test new software versions in a sandbox environment, isolate your customers' machines, and increase the flexibility of your DS2419+ with reduced hardware deployment and maintenance costs. - Backup Solution
- The DS2419+ integrates various backup applications to safeguard your important data on almost any device with an intuitive user interface and durable storage technologies.
Desktop Backup
Cloud Station Backup safeguards your PC, Mac, and other desktop devices. The DS2419+ is also compatible with Time Machine, allowing you to backup your Mac to Synology NAS.
NAS Backup
Hyper Backup comprehensively backs up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud service to help ensure data safety.
Server/VMware Backup
Active Backup for Business centralizes backup tasks for VMware virtual machines, Windows, servers, and rsync/SMB file servers. Fast and reliable recovery options ensure that the running services, VMs, and files can be recovered almost instantly.
SaaS Backup
Active Backup for Office 365/G Suite is an on-premise backup solution for public clouds with a centralized dashboard, optimizing storage efficiency through the single instancing and block-level deduplication technology. - Btrfs: Next Generation Storage Efficiency
- The DS2419+ introduces the Btrfs file system, bringing advanced storage technologies to meet the management needs of modern businesses:
Advanced Snapshot Technology
A customizable backup schedule allows shared folders to be backed up in a minimum 5-minute interval, without consuming heavy system resources.
File and Folder Level Data Restoration
Brings conveniences and saves time for users who wish to restore only a specific file or folder.
Flexible Shared Folder and User Quota System
These provide comprehensive quota control on all user accounts and shared folders.
File Self-Healing
The Btrfs file system is able to auto-detect corrupted files with mirrored metadata and recover broken data using the supported RAID volumes, which include RAID 1, 5, 6, and 10.
iSCSI Service
Built for IT administrators, this offers an advanced LUN and provides fast snapshot creation, recovery, and cloning. - Reliability, Availability, and Disaster Recovery
- System reliability is critical for businesses everywhere. The DS2419+ responds to these concerns with wide-ranging availability and redundancy features:
Synology High Availability
Helps ensure a smooth transitioning between clustered servers in the event of unexpected disasters and ensures that your services remain online.
Snapshot Replication
Provides schedulable, near-instantaneous data protection, ensuring business documents in shared folders, virtual machines in iSCSI LUNs, or dockerized application data remain safe and available in the event of a disaster.
Redundant Systems Fans & Network Ports
These are built with failover support to help ensure continual service uptime.
High-Reliability System Design
A high-reliability system design, including a fan-less CPU heatsink and passive cooling technology, helps prevents single points of failure. UPC: 846504003150 In the Box Synology DiskStation DS2419+ 12-Bay NAS Enclosure 2 x RJ45 LAN Cables AC Power Adapter Accessory Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS2419 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology DS2419+ Specs | | | Number of Bays | 12 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
4 x RJ45 (Gigabit Ethernet)
1 x 9-Pin (Serial) | | Compatible Drive Interface | SATA (Unspecified Version) | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid | | Hot-Swap Support | Yes | | Expansion Slots | 1 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Atom C3538 Quad-Core | | Clock Speed | Base: 2.1GHz | | Total Installed Memory | 4 GB 2133 MHz DDR4 | | Total Memory Slots | 2 x SO-DIMM | | Maximum Memory Capacity | 32 GB | | | | Supported Protocols | AFP
CalDAV
FTP
L2TP
NFS
OpenVPN
PPTP
SMB
SNMP
SSH
Telnet
WebDAV
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 128 | | Max Cameras Supported | 40 | | Max Concurrent Connections | 1000 | | Max Folders | 512 | | Max Groups | 256 | | Max Sync Tasks | 16 | | Max User Accounts | 2048 | | Max Volume Number | 512 | | | | OS Compatibility | Windows 7
Windows 10
macOS 10.11 or Later
Linux | | File System Formats Supported | Internal: Btrfs, EXT4
External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Encryption | AES-NI | | Security Features | Kensington Security Slot | | VPN Server Connections | 30 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Storage Humidity | 5 to 95% | | | | Cooling | 2 x 120 mm Fans | | Built-In Speakers | None | | Dimensions | 11.8 x 10.6 x 13.4" / 300.0 x 270.0 x 340.0 mm | | Weight | 20.9 lb / 9.5 kg | | | | Package Weight | 27.39 lb | | Box Dimensions (LxWxH) | 18.5 x 17.3 x 16.9" |
