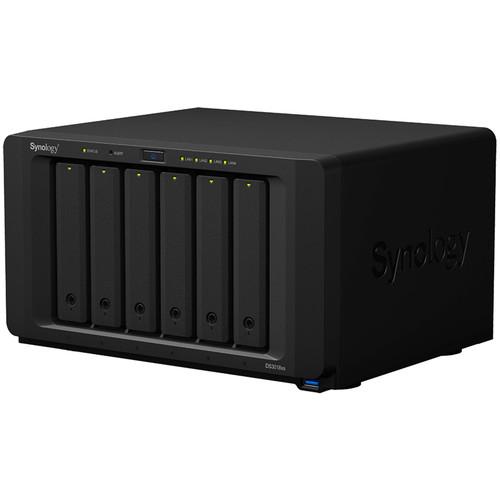

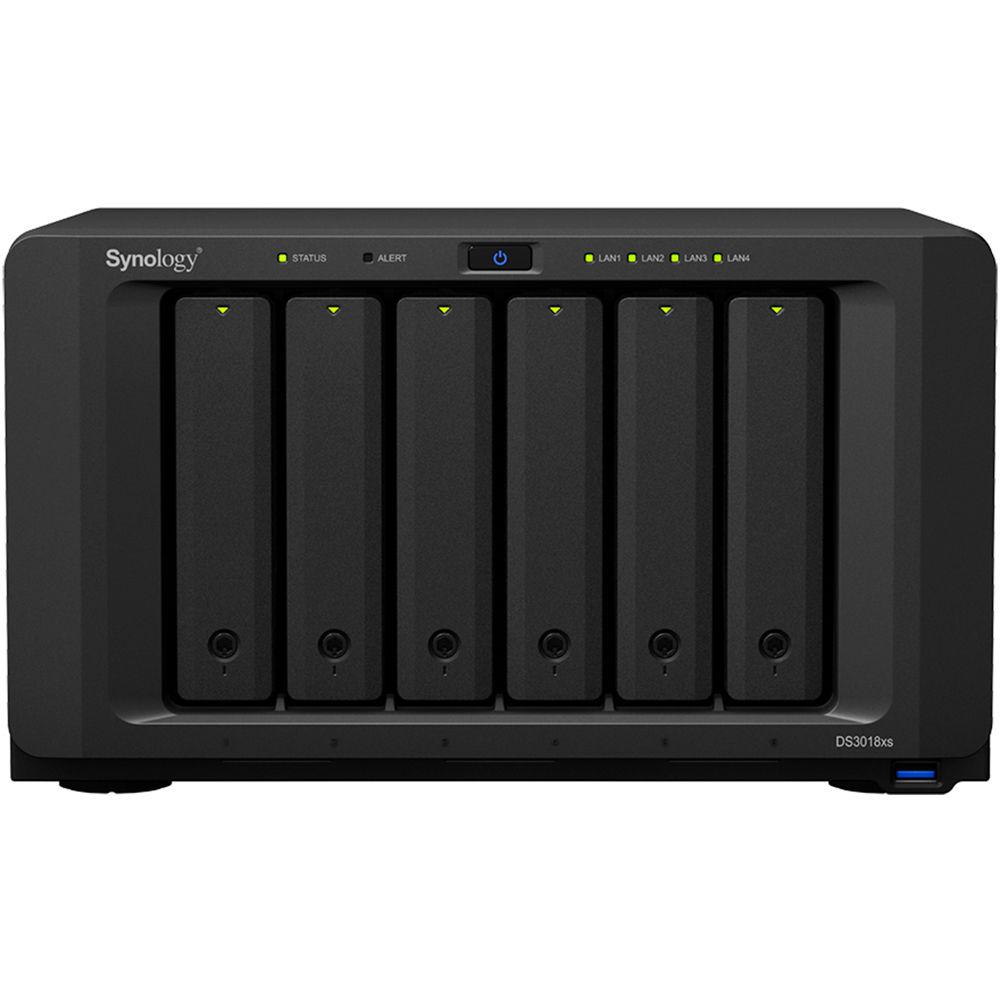

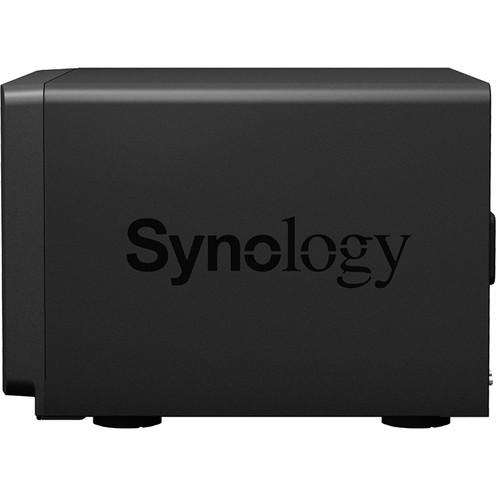

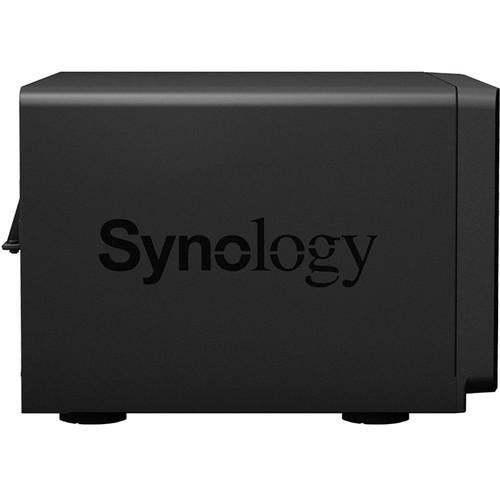

User Manual for Synology DiskStation DS3018xs 6-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Synology DiskStation DS3018xs 6-Bay NAS Enclosure
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology DiskStation DS3018xs 6-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description Built for work-intensive businesses and virtualization environments, the DiskStation DS3018xs 6-Bay NAS Enclosure from Synology is equipped with a PCIe 3.0 x8 slot that can accommodate a 10GbE network interface card for boosting network performance, or a dual M.2 SSD adapter card for caching. It is equipped with six drive bays that are capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its six drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 16,000 user accounts and 2000 maximum concurrent connections.
The DS3018xs runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.2 GHz Intel Pentium D1508 Dual-Core with a burst frequency of up to 2.6 GHz, and its 8GB of DDR4 ECC RAM, which can be upgraded to 32GB, allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving read speeds of up to 2231 MB/s and sequential IOPS reads of up to 265,000. When connected to two DX1215 expansion units, up to 30 total drives are supported.
Also featured are three USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system, as well as two expansion ports. Network connectivity is achieved via four integrated Gigabit Ethernet ports, which support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS3018xs supports a variety of modes, including RAID 0, 1, 5, 6, and 10, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS3018xs is engineered to be energy efficient. Not only does it offer dual 92 x 92mm fans to help keep the system running cool at all times, its noise dampening design of 25.5 dB(A) makes for quiet operation. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS3018xs 6-Bay NAS Enclosure operates using a 250W power supply that runs using 100-240 VAC at 50/60 Hz. Included is an accessory pack, a power cord, and two RJ45 LAN cables. It is protected by a limited 5-year warranty. General Features - High-Performance NAS Server with Scaling Flexibility
- Powered by a 2.2 GHz Intel Pentium D1508 Dual-Core processor that can be boosted up to 2.6 GHz, an AES-NI hardware encryption engine, 8GB of DDR4 ECC RAM that can be upgraded to 32GB, read speeds of up to 2231 MB/s and sequential IOPS of 265,000, scalability that supports up to 30 drives with two DX1215 expansion units, Synology's DiskStation DS3018xs is a 6-bay NAS that comes with a PCIe slot and supports a 10GbE network interface card or a dual M.2 SSD adapter card. SSD cache support enhances network speeds and boosts performance, allowing the DS3018xs to meet data-intensive requirements.
- Supercharge Your Storage with Speedy Performance
- Equipped with dual-channel memory and a PCIe slot, the DS3018xs supports a dual M.2 SSD adapter card, M2D17, or a 10GbE NIC, for high-IOPS system cache and fast data transmissions, respectively. The M.2 SSD slot supports 2242, 2260, and 2280 form factors.
- Next-Generation File System for Improved Data Protection
- The Btrfs file system introduces advanced storage technologies and optimized snapshots to help prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder / User Quota System
Provides comprehensive quota control on all user accounts and shared folders.
Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File- or Folder-Level Data Restoration
Helps make data recovery fast and flexible.
Automatic File Self-Healing
Helps detect and recover corrupted files without user intervention. - Fully Certified Storage for Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with an easy management interface. VMware vSphere 6 and VAAI integration help offload storage operations and optimize computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Digital Asset Protection
- Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyzes system settings, password strength, network preferences, and removes possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit Encryption
Encrypt shared folders and network data transmissions to help keep data from unauthorized access.
2-Step Verification
Helps prevent others from logging into your DSM by generating a one-time password (OTP) on your mobile device.
Trust Level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, helping to safeguard your NAS from unknown on tampered package files. - Limited 5-Year Warranty
- Synology's limited 5-year warranty provides hardware replacement and technical support via email and telephone services, helping to maximize your return on investment.
- Synology Replacement Service (SRS)
- SRS provides free shipment of replacement units as early as the next business day in selected regions.
- Powered by Synology DSM
- CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
MailPlus
A secure, reliable, and private mail server solution with an intuitive and modern mail client.
High Availability
Helps ensure seamless service transition between clustered servers in the event of a server failure.
Office
Collaborate on spreadsheets and documents on your private cloud.
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
Surveillance Station
Complete surveillance solution for recording, monitoring, and management. UPC: 846504002771 In the Box Synology DiskStation DS3018xs 6-Bay NAS Enclosure Accessory Pack AC Power Cord 2 x RJ45 LAN Cables Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS3018xs 6-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology DS3018xs Specs | | | Number of Bays | 6 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 360 TB (with Expansion)
72 TB | | Connections | 3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x Infiniband
4 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | Expansion Slots | 1 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Pentium D1508 Dual-Core | | Clock Speed | Base: 2.2GHz / Maximum Boost: 2.6 GHz | | Total Installed Memory | 8 GB ECC DDR4 | | User-Replaceable Memory | 1 x 8 GB | | Total Memory Slots | 2 x SO-DIMM | | Maximum Memory Capacity | 32 GB | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 126.89 W (Typical)
56.92 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | VPN Server Connections | 30 | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, VCCI, as per Manufacturer | | | | Cooling | 2 x 92 mm Fans | | Noise Level | 25.5 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.5 x 11.1 x 9.6" / 166.0 x 282.0 x 243.0 mm | | Weight | 11.5 lb / 5.2 kg | | | | Package Weight | 14.85 lb | | Box Dimensions (LxWxH) | 15.591 x 12.835 x 12.284" |
