User Manual for Synology DiskStation DS418 4-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Synology DiskStation DS418 4-Bay NAS Enclosure
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology DiskStation DS418 4-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

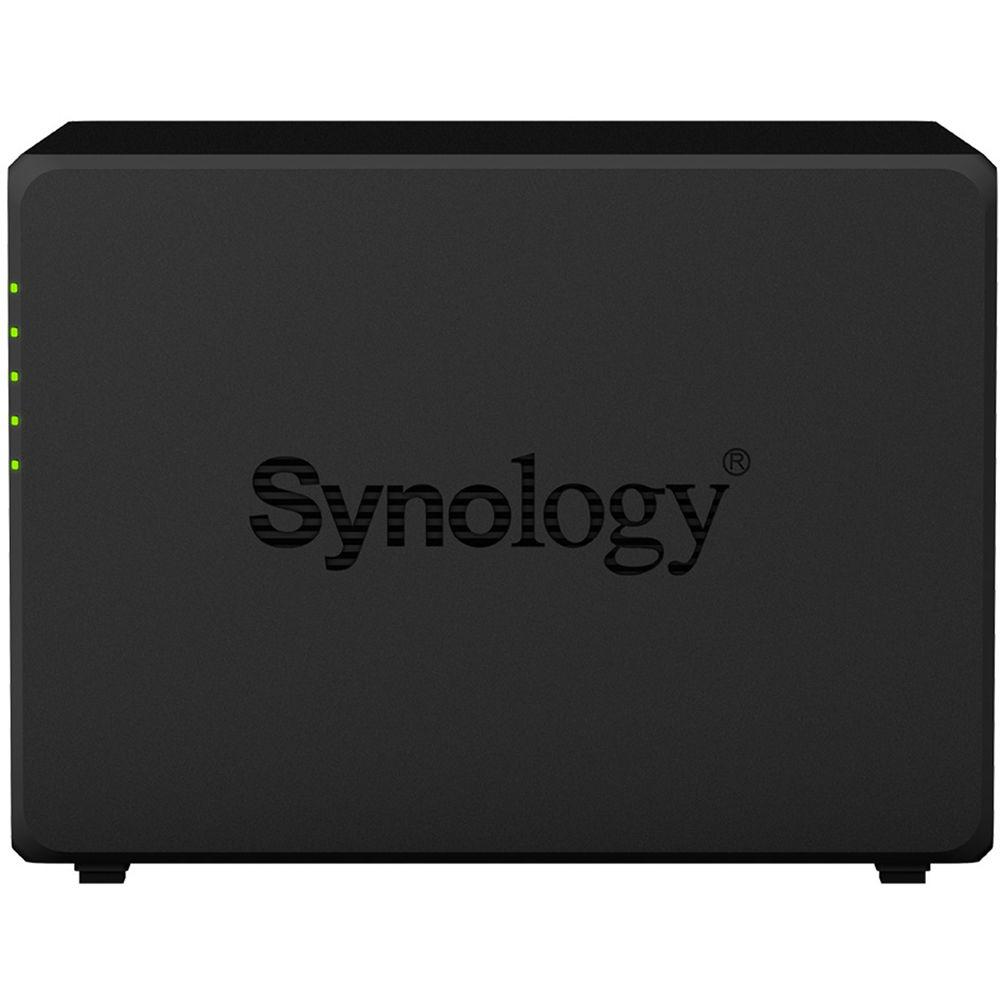

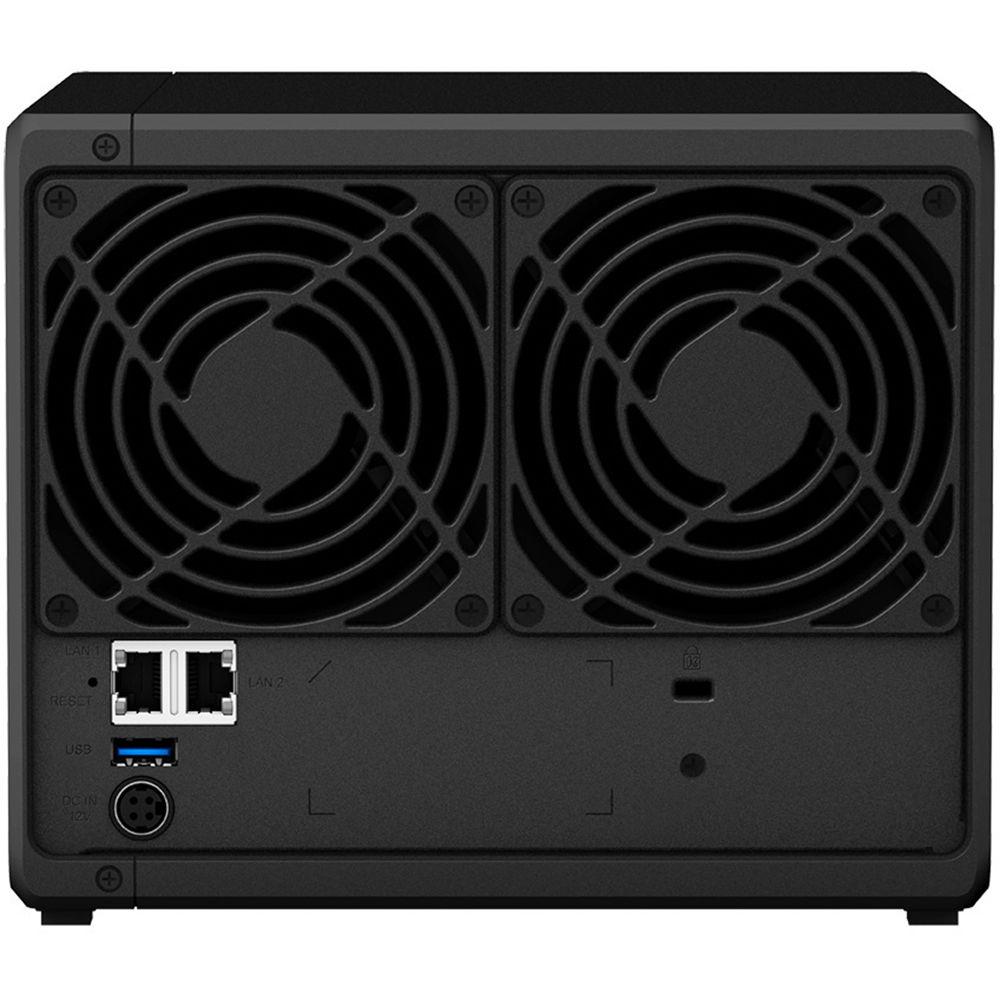

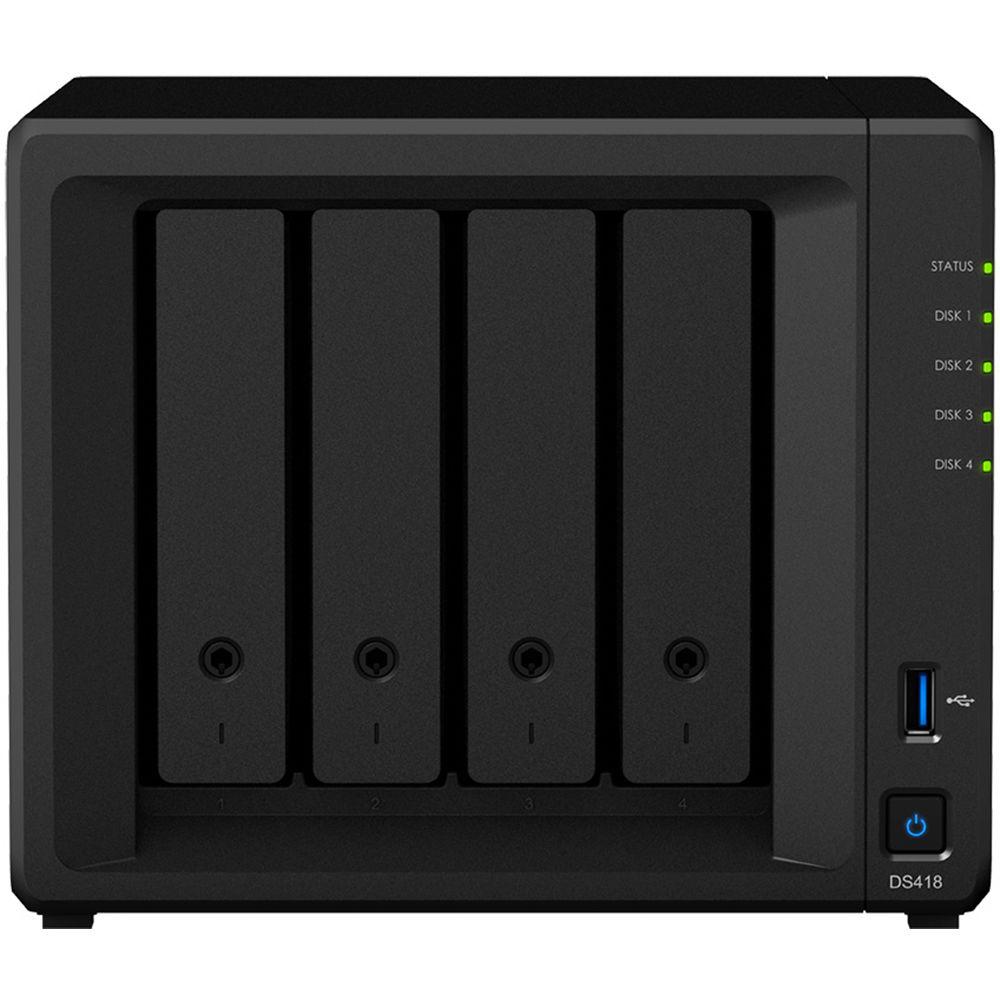

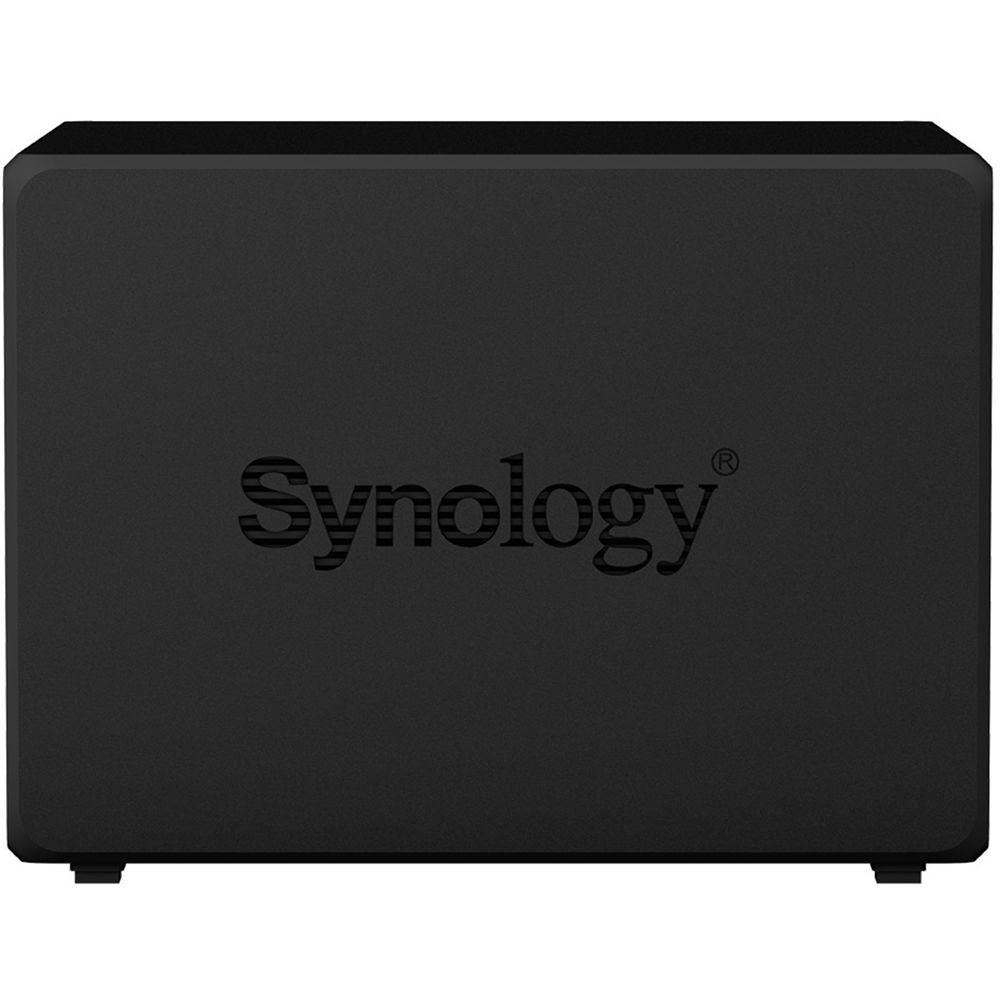

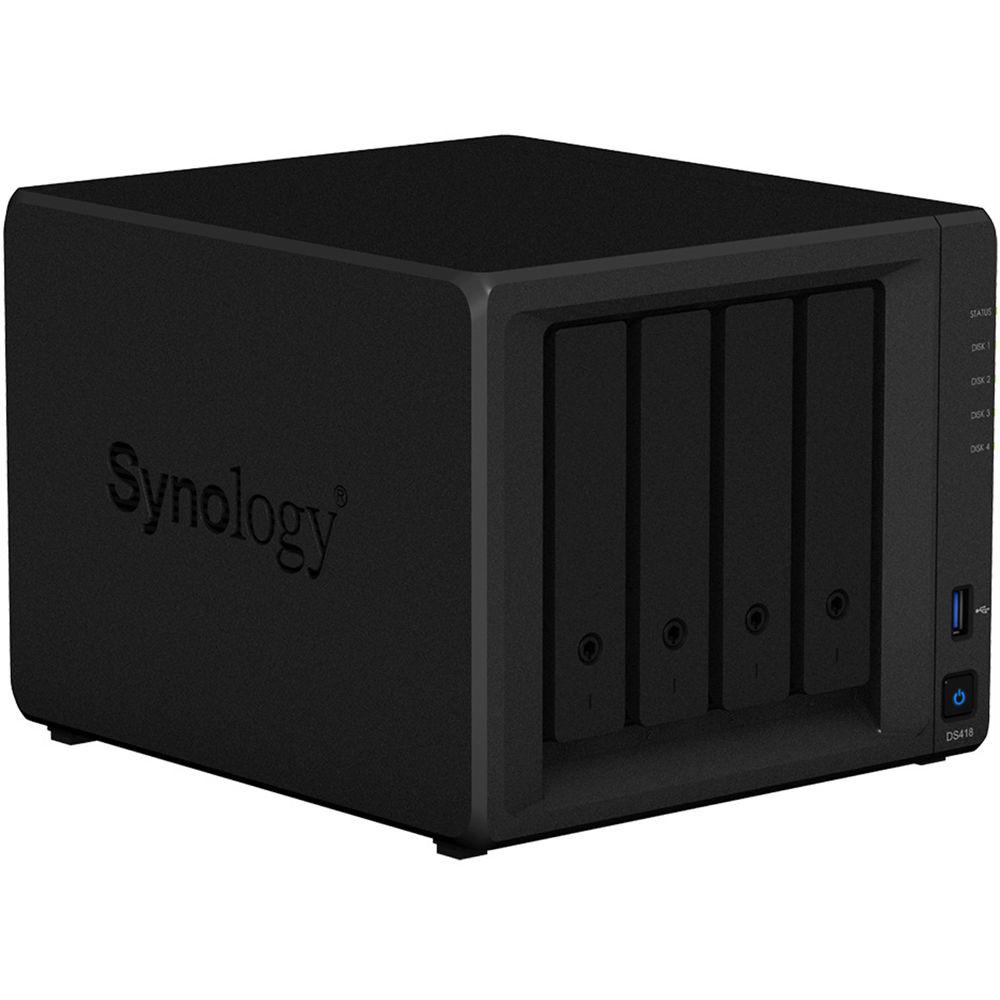

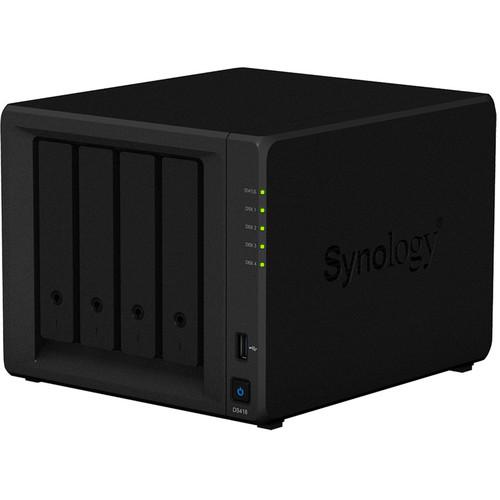

Product description Designed for home and office use, the DiskStation DS418 4-Bay NAS Enclosure from Synology allows users to share and synchronize files across multiple devices and public cloud storage services from virtually anywhere, while also helping to boost work productivity enhance team collaboration, and engage in real-time 4K H.265 video transcoding. It is equipped with four drive bays that are capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its four drive bays, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts and 200 concurrent connections.
The DS418 runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.4 GHz Realtek RTD1296 Quad-Core and its 2GB of DDR4 RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 226 MB/s and sequential write speeds of up to 170 MB/s, while a dedicated hardware transcoding engine can transcode 10-bit 4K H.265 video on-the-fly. Also featured are two USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system, and network connectivity is achieved via the dual Gigabit Ethernet ports, allowing your stored data to be shared with users throughout the network and support link aggregation and failover. Data may also be made remotely available through the free iOS and Android applications. Using the integrated 4K multimedia server on the DS418, Video Station and DS video can be used to convert and play 4K videos from most computers, mobile devices and other media players that don't support Ultra HD formats.
For those who require RAID support, the DS418 supports RAID 0, 1, 5, 6, and 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS418 is engineered to be energy efficient. Not only does it offer two 92 x 92mm fans to help keep the system running cool at all times, its noise dampening design of 20.9 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS418 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 90W AC power adapter, a power cord, and two RJ45 LAN cables. It is protected by a limited 2-year warranty. General Features - Versatile, Powerful, and Compact Storage Server
- The Synology DS418 comes with a 1.4 GHz Quad-Core 64-bit processor and 2GB of DDR4 RAM, delivering sustained data transfer speeds of up to 226 MB/s, 10-bit 4K H.265 video transcoding on-the-fly.
- Synchronize Files Across Your Devices
- Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.
- Real-Time Collaboration on Your Private Cloud
- Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
- 4K Multimedia Server
- Access and stream your favorite 4K content anywhere, anytime. The DS218 supports 10-bit 4K H.265 online transcoding. With Video Station and DS video, you can convert and play 4K videos from almost any computer, mobile device, or other media players that don't support Ultra HD formats.
- Synology Hybrid RAID (SHR)
- Storage management is easy with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system allowing you to easily create and expand storage volumes and migrate RAID types without requiring details on RAID. SHR provides 1- to 2-disk redundancy to help safeguard your data during drive failures.
Cost-Effective
SHR maximizes the data capacity of your RAID when drives with different capacities are used.
User-Friendly Management
For novice users who have no technical background and still want to protect their data using RAID technology, an installation wizard will guide you through all the steps during your first installation.
Scalability
You can add new disks on-the-fly in Storage Manager with a simple click.
Flexibility
When creating a volume, you can plan ahead and leave empty and unallocated space for future usage. - User-Friendly File Access with QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
- Powered by Synology DSM
- Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Public Cloud Integration
Back up and synchronize data easily between your public cloud accounts and your NAS.
DSM UI
Synology's DSM operating system has an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools and constantly updated to tackle evolving threats and protect your devices.
Multimedia
Complete multimedia solution for management, streaming, and playback. UPC: 846504002634 In the Box Synology DiskStation DS418 4-Bay NAS Enclosure Accessory Pack 90W AC Power Adapter AC Power Cord 2 x RJ45 LAN Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS418 4-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology DS418 Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 48 TB | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Realtek RTD1296 Quad-Core | | Clock Speed | Base: 1.4GHz | | Total Installed Memory | 2 GB DDR4 | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 26.49 W (Typical)
8.78 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 90 VDC | | | | VPN Server Connections | 15 | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, as per Manufacturer | | | | Cooling | 2 x 92 mm Fans | | Noise Level | 20.9 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.5 x 7.8 x 8.8" / 166.0 x 199.0 x 223.0 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 11.339 x 10.315 x 9.528" |
Rating96% users recommend this product to others. And what about you?
