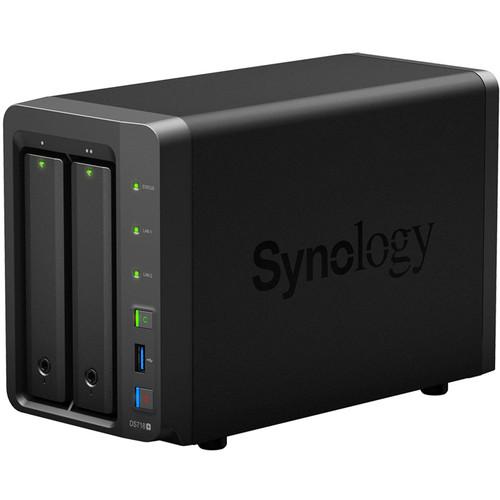

User Manual for Synology DiskStation DS718 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Synology DiskStation DS718 2-Bay NAS Enclosure
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology DiskStation DS718 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description Built with a quad-core processor, an AES-NI hardware encryption engine, Btrfs file system support, and real-time 1080p/Cinema 4K video transcoding, the DiskStation DS718+ 2-Bay NAS Enclosure from Synology is designed for those who need a high-performance NAS that has been optimized for not only intensive workloads, centralizing data backups, and storing UHD media content, but also to safeguard data and deliver fast file transfer speeds It is equipped with two drive bays that are capable of natively supporting 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Using its two drive bays, this NAS will allow you to store and share many files, including videos, music, photos, and documents with up to 2048 user accounts and 500 maximum concurrent connections.
The DS718+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.5 GHz Intel Celeron J3455 Quad-Core with a burst frequency of up to 2.3 GHz, and its 2GB of DDR3L RAM, which be upgraded to 6GB, allows frequently-used files and applications to be quickly accessed. The NAS can achieve encrypted read speeds of up to 226 MB/s and encrypted write speeds of up to 184 MB/s, while a dedicated hardware transcoding engine can transcode two-channel H.264 (AVC), H.265 (HEVC), MPEG-2, and VC-1 video at resolutions up to 4096 x 2160 at up to 30 fps via Video Station and DS video. This allows 4K videos to be converted and played on-the-fly on devices that do not natively support Ultra HD formats.
Also featured are three USB 3.0 Type-A ports and eSATA port which allow it to be connected to your Windows or Mac system, and network connectivity is achieved via the dual Gigabit Ethernet ports that support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS718+ supports RAID 0 and 1, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized. Additionally, once connected to a DX517 expansion unit, RAID 5, 6, and 10 are also supported.
The DS718+ is engineered to be energy efficient. Not only does it offer a 92 x 92mm fan to help keep the system running cool at all times, its noise dampening design of 18.4 dB(A) makes for quiet operations. The server supports numerous scheduled power on/off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS718+ 2-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 65W AC power adapter, a power cord, and two RJ45 LAN cables. It is protected by a limited 3-year warranty. General Features - Flexible Scalability Meets Growing Needs
- The Synology DS718+ comes with a 1.5 GHz Intel Celeron J3455 Quad-Core (64-bit) processor with a burst speed of up to 2.3 GHz and 2GB of DDR3L RAM, delivering encrypted read speeds of up to 226 MB/s, encrypted write speeds of up to 184 MB/s, AES-NI hardware encryption, and 4K H.264/H.265 video transcoding.
- Btrfs: Next-Generation Storage Efficiency
- The Btrfs file system introduces the advanced storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder / User Quota System
Provides comprehensive quota control on user accounts and shared folders.
Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File- or Folder-Level Data Restoration
Makes data recovery fast and flexible.
Automatic File Self-Healing
Detects and recovers corrupted files without user intervention. - File Management and Sharing
- File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Windows or Mac. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. It supports SMB, FTP, AFP, NFS, and WebDAV, and is compatible with most environments.
- Synchronize Files Across Your Devices
- Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.
- Real-Time Collaboration on Your Private Cloud
- Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
- 4K Multimedia Server
- Access and stream your 4K media content virtually anytime and anywhere. The DS718+ supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on-the-fly on other computers, smartphones, and media players that don't natively support Ultra HD formats.
- Powered by Synology DSM
- Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication. DSM UI
Synology's DSM operating system has an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
All-in-One Server
Save additional investments by integrating various network services, web/mail services, and management applications into your NAS. UPC: 846504002603 In the Box Synology DiskStation DS718+ 2-Bay NAS Enclosure Accessory Pack 65W AC Power Adapter AC Power Cord 2 x RJ45 LAN Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DiskStation DS718 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology DS718+ Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 24 TB
84 TB (with Expansion) | | Connections | 3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron J3455 Quad-Core | | Clock Speed | Base: 1.5GHz / Maximum Boost: 2.3 GHz | | Total Installed Memory | 2 GB DDR3L | | User-Replaceable Memory | 1 x 2 GB | | Total Memory Slots | 2 | | Maximum Memory Capacity | 6 GB | | | | Supported Protocols | AFP
CIFS/SMB
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 20.1 W (Typical)
9.1 W (Standby) | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 65 VDC | | | | VPN Server Connections | 20 | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, EAC, FCC, RCM, VCCI, as per Manufacturer | | | | Cooling | 1 x 92 mm Fan | | Noise Level | 18.4 dBA | | Status Monitoring | LED Indicator | | Dimensions | 6.2 x 4.1 x 9.1" / 157.0 x 103.5 x 232.0 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 11.181 x 10.472 x 4.882" |
