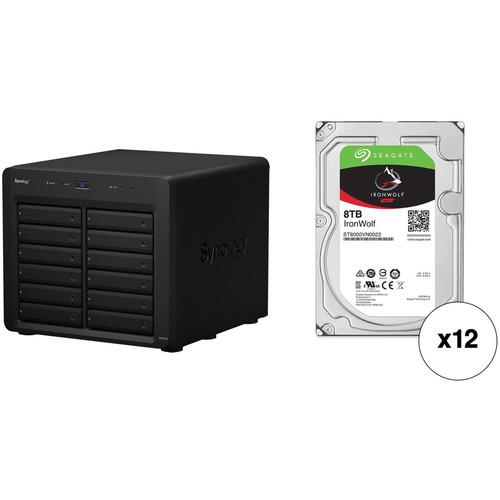

User Manual for Synology DX1215 96TB 12-Bay NAS Expansion Unit Kit with Seagate NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology DX1215 96TB 12-Bay NAS Expansion
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology DX1215 96TB 12-Bay NAS Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology DX1215 12-Bay Expansion Unit with twelve Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 96TB. - Synology DX1215 12-Bay Expansion Unit The DX1215 12-Bay Expansion Unit from Synology delivers volume expansion and data backup for the following selected Synology DiskStation servers: DS3615xs, DS3612xs, DS3611xs, DS2015xs, and DS2413+. There is also a DSM version requirement of 5.1-5004 or later. The DX1215 provides an additional 12 drive bays that support SATA III 6 Gb/s and SATA II 3 Gb/s 3.5" hard drives, as well as 2.5" hard drives and solid state drives.
When used with Synology DiskStation Manager (DSM), RAID management is possible and a RAID volume on your Synology DiskStation can be expanded directly without having to reformat any existing drives. This helps to ensure that your DiskStation continues to operate while its capacity is being expanded.
The DX1215 can also act as a dedicated local backup solution for a Synology DiskStation. When created as a separate volume, the DX1215 helps to provide a backup solution for local drives in case of a system failure. In addition to RAID management and local backups, online volume expansion is also supported.
To connect to the DiskStation, the DX1215 uses a secure and specially designed expansion cable that connects to its Infiniband port. This helps to ensure not only a simple connection, but maximum data throughput. The 6 Gb/s connection speed allows the drives in the connected DX1215 to operate as the internal ones of the DiskStation.
The DX1215 also has a hibernation mode that can be manually configured to automatically start when the system has been inactive for a period of time. This not only helps to save energy, but also helps to extend the lifespan of the internal drives. The DX1215 will also intelligently power off with the attached DiskStation, helping the system to run smartly and efficiently with minimal user intervention.
The DX1215 has an integrated and fast detachable fan module with dual 120 x 120mm fans and screwless drive trays, allowing system components to be replaced quickly and without any tools. The DX1215 12-Bay Expansion Unit operates on 100 - 240 VAC on 50 to 60 Hz, single phase. Included with this unit is 52 x 2.5" drive screws, 2 x drive tray keys, an AC power cord, and an Infiniband expansion cable. UPC: 846504001859 - 12 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117552 In the Box - DX1215 12-Bay Expansion Unit sxuvqaewtudeyyuwyqrz
- AC Power Cord
- 52 x 2.5" Drive Screws
- 2 x Drive Tray Keys
- Infiniband Expansion Cable
- Limited 5-Year Warranty
- 12 x Seagate - 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology DX1215 96TB 12-Bay NAS Expansion Unit Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology DX1215 12-Bay Expansion Unit
| | | Number of Bays | 12 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 1 x Infiniband | | Compatible Drive Interface | SATA III | | Hot-Swap Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Power Consumption | 51.23 W (Typical)
21.71 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 500 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 2 x 120 mm Fans | | Noise Level | 27.2 dBA | | Dimensions | 10.6 x 11.8 x 13.4" / 270.0 x 300.0 x 340.0 mm | | Weight | 19.9 lb / 9.0 kg | | | | Box Dimensions (LxWxH) | 18.5 x 17.0 x 16.5" | - 12 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 8.0 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 210 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.7 dB (Idle)
2.8 dB (Active) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 9.0 W (Active)
7.2 W (Idle)
0.6 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.7 lb / 780.2 g | | | | Box Dimensions (LxWxH) | 7.8 x 6.0 x 2.3" |
