User Manual for Synology E10G18-T2 Dual-Port 10 Gb s PCIe Expansion Card Click to enlarge the picture
Contents of the user manual for the Synology E10G18-T2 Dual-Port 10 Gb s
- Product category: Network Interface Cards & Adapters Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Interface Cards & Adapters
 |
User manual for the Synology E10G18-T2 Dual-Port 10 Gb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

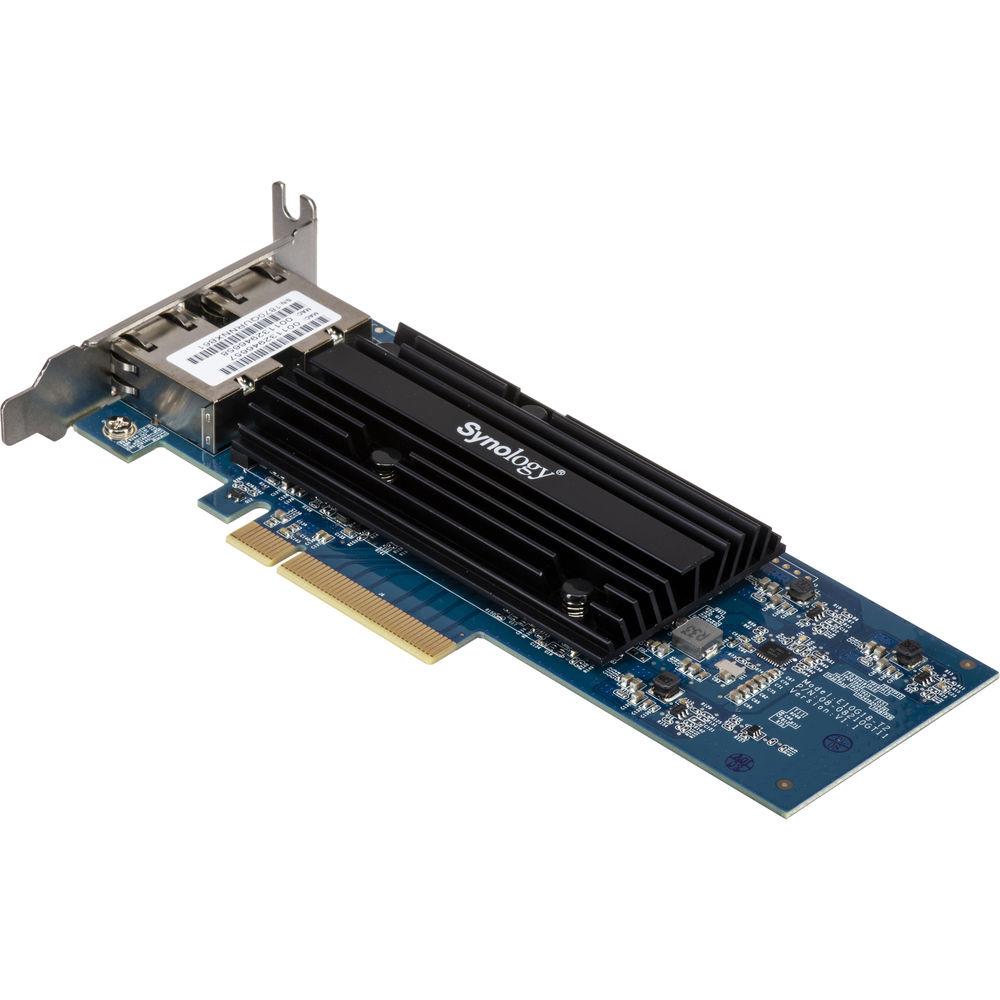

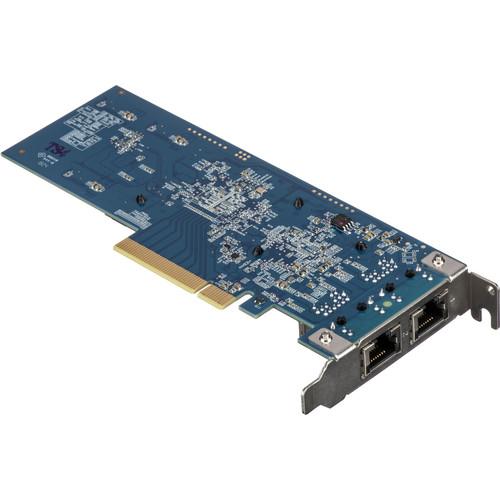

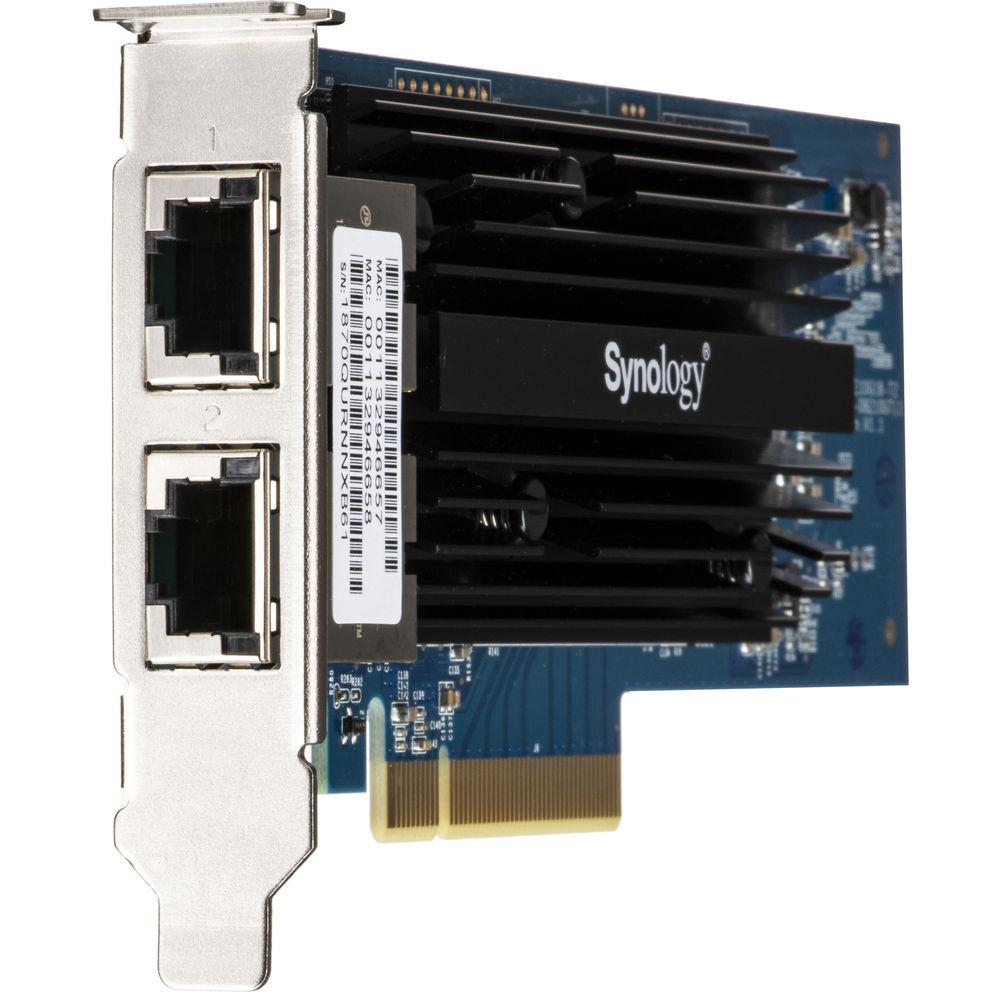

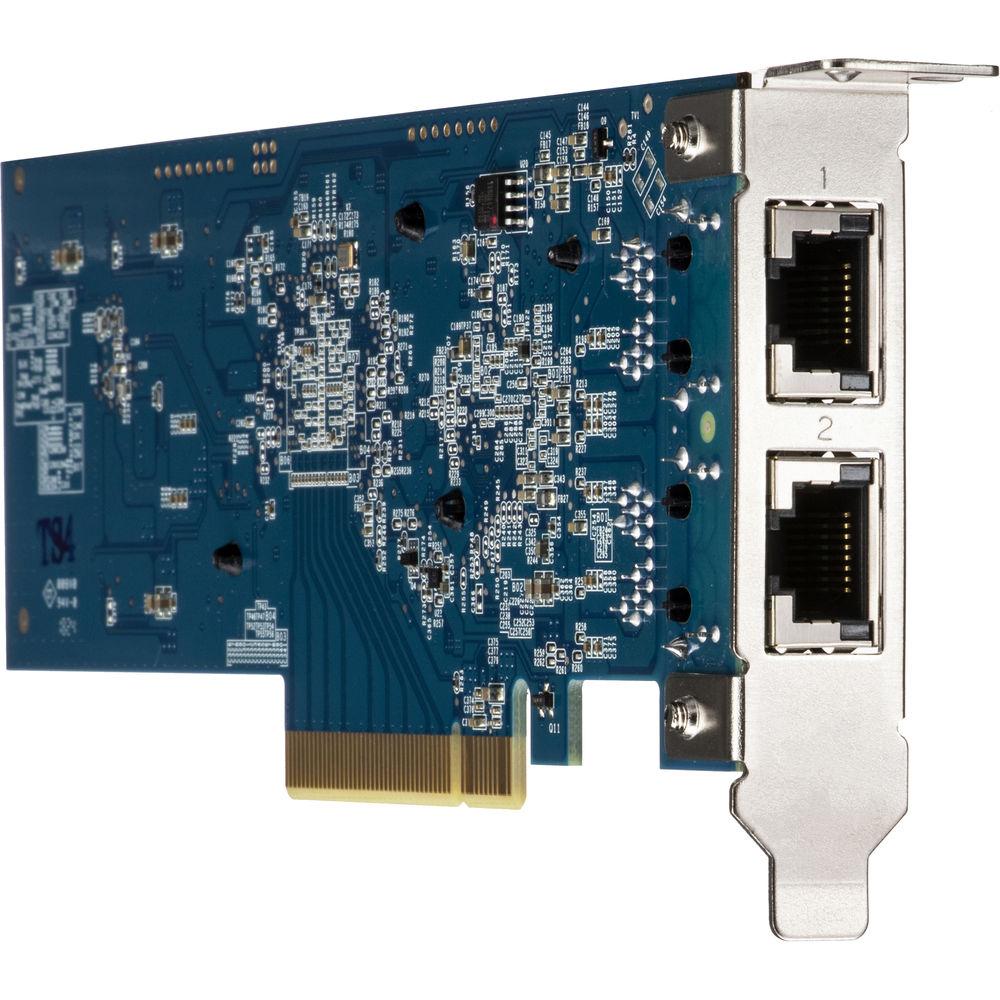

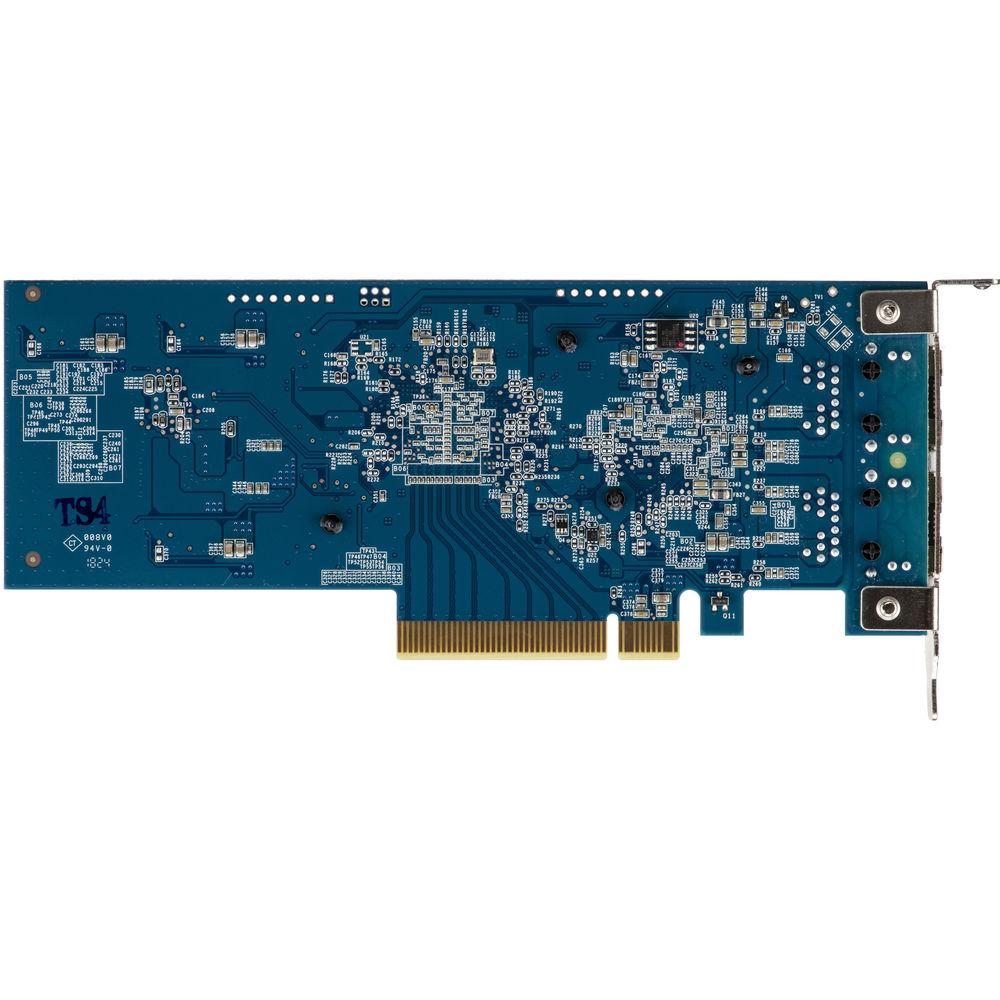

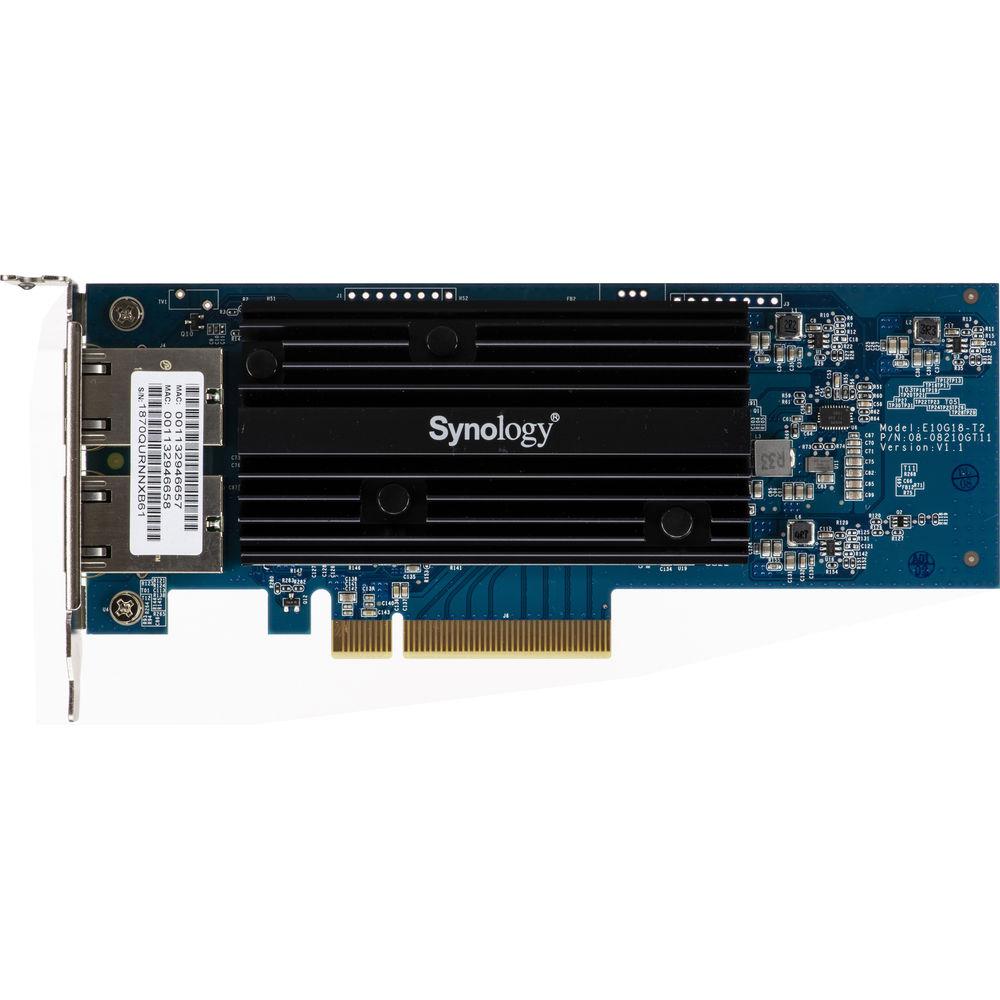

Product description Add a pair of 10 Gb/s Ethernet ports to a Synology NAS server with the E10G18-T2 Dual-Port 10 Gb/s PCIe Expansion Card from Synology. Equipped with a PCIe 3.0 x8 interface, the E10G18-T2 expansion card comes with two 10 Gb/s RJ45 ports for a total data rate of up to 20 Gb/s when used with Cat 6 or better UTP cabling connections. Compatible with select Synology NAS servers, the E120G18-T2 supports link aggregation and jumbo frames, while support for TCP segmentation offloading and TCP/UDP/IP checksum offloading is ideal for offloading packet processing and freeing up CPU resources. - Supported Synology NAS Models
- FS3017
FS2017
FS1018
RS18017xs+
RS18016xs+
RC18015xs+
RS10613xs+
RS4017xs+
RS3617xs+
RS3614xs+
RS3413xs+
RS3618xs
RS3617RPxs
RS3617xs
RS3614(RP)xs
RS3412(RP)xs
RS3411(RP)xs
DS3617xs
DS3615xs
DS3612xs
DS3611xs
DS3018xs
RS2818RP+
RS2418(RP)+
RS1219+
RS818(RP)+
DS1817+
DS1618+
DS1517+ - OS Requirements
- DiskStation Manager version 6.2.1-23824 or later
UPC: 846504003112 In the Box Synology E10G18-T2 Dual-Port 10 Gb/s PCIe Expansion Card Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology E10G18-T2 Dual-Port 10 Gb s PCIe Expansion Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology E10G18-T2 Specs | | | Networking Ports | 2 x 10Gb Ethernet (RJ45) | | Host Connection | PCIe 3.0 x8 (Full-Height/Low-Profile Slot) | | | | Supported IEEE Standards | 802.3ab, 802.3ad, 802.3an, 802.3x | | Jumbo Frames Support | 9000 Bytes | | Transfer Rates | Full-Duplex Mode: 10 Gb/s | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 95% | | | | Dimensions | 6.7 x 2.7 x 0.5" / 170.6 x 68.9 x 13.6 mm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.0 x 5.2 x 1.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
