Synology M2D18 Dual M.2 SSD Adapter

Search your instruction manual in PDF to download

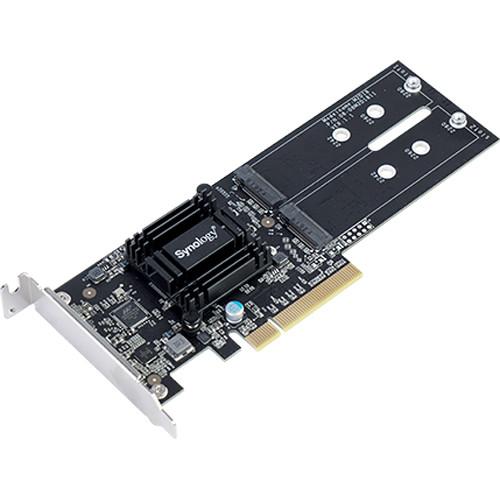

User Manual for Synology M2D18 Dual M.2 SSD Adapter Card

Click to enlarge the picture
Synology M2D18 Dual M.2 SSD Adapter Card Contents of the user manual for the Synology M2D18 Dual M.2 SSD Adapter
  • Product category: Controller Cards Synology
  • Brand: Synology
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Synology Controller Cards

User manual for the Synology M2D18 Dual M.2 SSD Adapter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Synology product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!



Product description

Designed to boost the performance of select Synology NAS systems, the M2D18 Dual M.2 SSD Adapter Card from Synology is a PCIe 2.0 x8 expansion card with two M.2 slots exclusively for SSD read/write caching, which will reduce random I/O latency and benefit applications such as photo indexing, file search, and virtualization environments. The M2D18 supports both NVMe and SATA/ACHI SSDs with form factors of 2280, 2260, and 2242. To help keep things running cool, an attachable heatsink accelerates thermal dissipation and ensure system stability with strong performance. Its integrated bracket will accommodate low-profile and full-height slots.

When used with a compatible NAS, users who want to take advantage of SSD caching will no longer need to use a standard storage bay or bays for caching purposes. For example, a 5-bay array with three 10TB hard drives that has two bays set aside for caching will only have 20TB available as a RAID 5. Installing the M2D18 will allow all five bays to be used for storage, meaning that your NAS will have a greater overall capacity. When configured as a RAID 5 with a 10TB drive in each of the five drive bays, you'll have 40TB available.

General Features

    Elevate Your Storage Performance
  • Designed to supercharge your NAS I/O performance, the Synology M2D18 M.2 SSD adapter reduces random I/O latency, benefiting applications such as photo indexing, file search, and virtualization environments. More queue equals lower I/O latency, and SATA/AHCI SSDs deliver 32 queue depths, while NVMe SSDs deliver 64,000 queue depths.

    The dual M.2 SSD slots support both SATA and NVMe SSDs, meaning higher SSD read/write caching and more primary drive bays reserved for data storage. An attachable heatsink accelerates the thermal dispatching of M.2 SSDs and assures system stability with strong performance. Its flexibility in supporting 2280/2260/2242 form factors and meeting various SSD options saves you from vendor lock-in.
UPC: 846504003099 In the Box Synology M2D18 Dual M.2 SSD Adapter Card
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Synology M2D18 Dual M.2 SSD Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Synology M2D18 Specs

    NVMe & SATA SSD
  • FS1018
  • DS3018xs
  • RS2818RP+
  • RS2418(RP)+
  • DS1618+
  • SATA SSD
  • FS2017
  • RS18017xs+
  • RS4017xs+
  • RS3617xs+
  • RS3617RPxs
  • RS3618xs
  • DS3617xs
  • RS1219+
  • RS818(RP)+
  • DS1817+
  • DS1517+
  • PCIe Interface PCIe 2.0 x8
    Driver Interface PCIe NVMe / SATA
    Connector Type and Quantity 2 x M-Key slots
    Supported Form Factors 2280 / 2260 / 2242
    Bracket Height Low-profile and full-height
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -5 to 140°F / -21 to 60°C
    Relative Humidity 5 to 95% RH
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Package Weight 0.4 lb
    Box Dimensions (LxWxH) 11.5 x 5.0 x 1.5"
