User Manual for Synology NVR1218 12-Channel 1080p NVR Click to enlarge the picture
Contents of the user manual for the Synology NVR1218 12-Channel 1080p NVR
- Product category: Network Video Recorders (NVRs) Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Video Recorders (NVRs)
 |
User manual for the Synology NVR1218 12-Channel 1080p NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description The NVR1218 12-Channel 1080p NVR from Synology offers an all-in-one surveillance solution without requiring a PC. The NVR natively supports 2 HDDs for a maximum capacity of 20TB. It can display and record up to 12 IP cameras. The HDMI output delivers up to 1080p video resolution to a monitor, while supporting 720p at 30 fps for up to 12 channels. The NVR supports up to 1024 local user accounts.Storage can be expanded to up to 7 drives with the Synology DX517, which is available for purchase separately. The NVR's HDD capacity can reach up to 70TB with the addition of the DX517. Four camera licenses come with the NVR. Additional licences are available separately. - Includes 4 camera licenses
- Suitable for remote or secure locations
- Supports POS (point-of-sale) systems
- DS Cam mobile app for iOS and Android devices
- H.264, MJPEG, MPEG-4, H.265 (output via local display is not supported), and MxPEG (output via local display is not supported) video compression
- Energy efficient 13.64W power consumption
UPC: 846504002832 In the Box Synology NVR1218 12-Channel 1080p NVR (No HDD) Accessory Pack AC Power Adapter AC Power Cord RJ45 LAN Cable HDD Bracket USB Installation Dongle Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology NVR1218 12-Channel 1080p NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

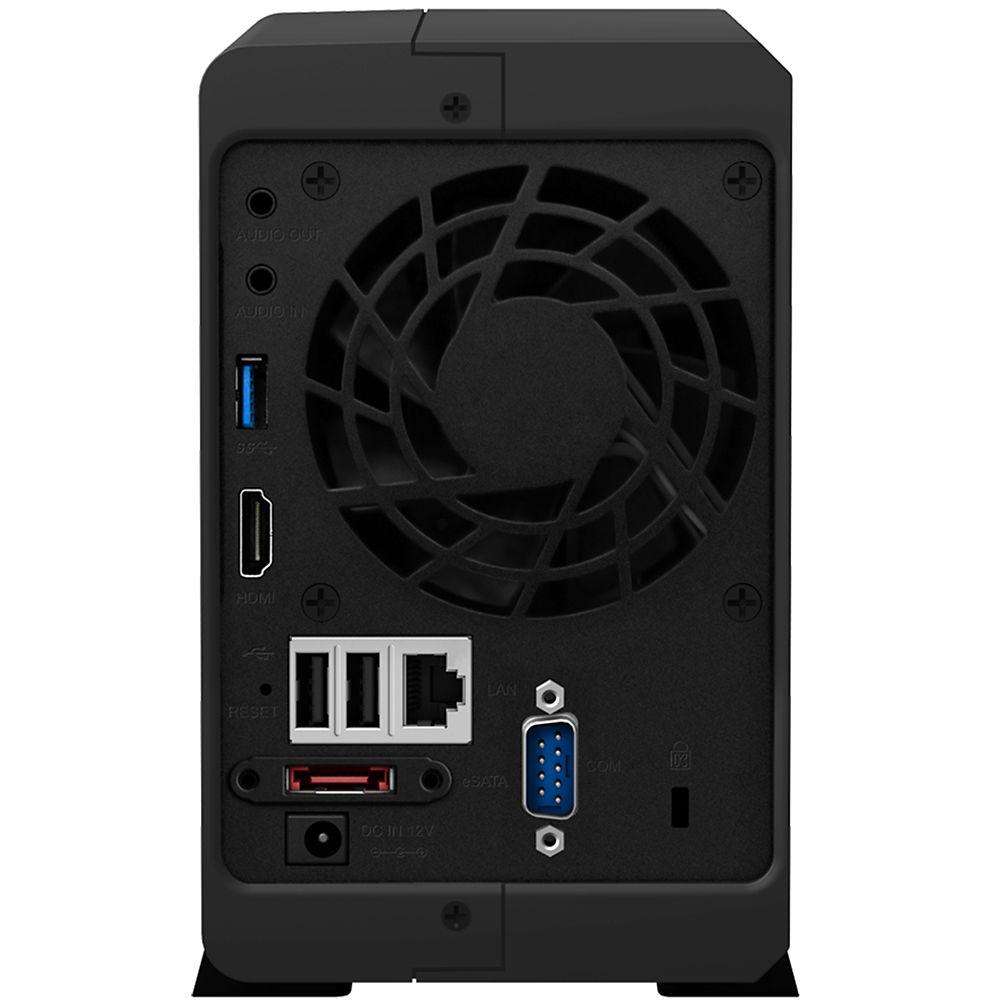

Technical parametersSynology NVR1218 Specs | | | CPU Model | Embedded NVR SoC | | CPU Architecture | 32-bit | | CPU Frequency | Dual core 1.0 GHz | | | | Drive Bays | 2 | | Maximum Drive Bays with Expansion Unit | 7 | | Compatible Drive Types | 3.5" SATA HDD | | Maximum Internal Raw Capacity | 20 TB (10 TB drive x 2) (capacity may vary by RAID types) | | Maximum Raw Capacity with Expansion Units | 70 TB (10 TB drive x 7) (capacity may vary by RAID types)
Available separately | | Maximum Single Volume Size | 16 TB | | | | USB | 2 x USB 2.0, 1 x USB 3.0 | | eSATA | 1 x eSATA | | COM Ports | 1 x COM | | | | Video Output | 1 x HDMI | | Supported Video Resolutions | 1080p at 60 Hz | | | | Input | 1 x 1/8" (3.5 mm) stereo audio jack | | Output | 1 x 1/8" (3.5 mm) stereo audio jack | | | | Max IP Channels | 12 (1 license required for each channel, 4 free licenses included) | | Frame Rate H.264 | 360 fps at 720p (1280 x 720), 12 channels
100 fps at 1080p (1920 x 1080), 10 channels
60 fps at 3 MP (2048 x 1536), 6 channels
40 fps at 5 MP (2591 x 1944), 4 channels
| | Frame Rate Motion JPEG | 120 fps at 720p (1280 x 720), 12 channels
80 fps at 1080p (1920 x 1080), 8 channels
40 fps at 3 MP (2048 x 1536), 6 channels
30 fps at 5 MP (2591 x 1944), 4 channels
| | Video Codec | MJPEG
MPEG-4
H.264
H.265 (output via local display is not supported)
MxPEG (output via local display is not supported) | | Audio Codec | PCM, ADPCM, G711, G726, AMR, AAC | | | | Networking Protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) | | Management | Auto DSM upgrade
Push notification - mobile devices
Email/SMS notification
Customized user quota
Customized administrator/user group
Syslog support
DDNS support
IPv6 support
VLAN support
PPPoE
Resource monitor
Connection manager
UPS management
Scheduled power on/off
Custom management UI HTTP/HTTPS Ports | | Windows AD Domain Integration | Domain users login via Samba/AFP/FTP/File Station | | HDD Management | HDD hibernation
S.M.A.R.T.
Dynamic bad sector mapping | | Security | FTP over SSL/TLS
IP auto-block
Firewall
Encrypted network backup over Rsync
HTTPS connection | | Utilities | Synology assistant | | Supported Clients | Windows 7 and 10
Mac OS X 10.11 and above | | Supported Browsers | Internet Explorer 11 (excluding Microsoft Edge)
Safari 10 and above
| | Supported Languages | English, German, French, Italian, Spanish, Danish, Norwegian, Swedish, Dutch, Russian, Polish, Hungarian, Portuguese, Brazilian Portuguese, Turkish, Czech, Japanese, Korean, Traditional Chinese, Simplified Chinese | | | | Internal Drives | EXT4 | | External Drives | EXT4
EXT3
FAT
NTFS
HFS+ (read only, with max. volume size 2 TB) | | | | Maximum Internal Volume Number | 256 | | Supported RAID Type | Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5 (with expansion unit)
RAID 6 (with expansion unit) | | RAID Migration | Basic to RAID 1
Basic to RAID 5 (with expansion unit)
RAID 1 to RAID 5 (with expansion unit)
RAID 5 to RAID 6 (with expansion unit)
| | Volume Expansion with Larger HDDs | Synology Hybrid RAID
RAID 1
RAID 5 (with expansion unit)
RAID 6 (with expansion unit)
| | Volume Expansion by Adding a HDD | Synology Hybrid RAID
RAID 5 (with expansion unit)
JBOD (with expansion unit) | | Global Hot Spare Supported RAID Type | Synology Hybrid RAID (with expansion unit)
RAID 1 (with expansion unit)
RAID 5 (with expansion unit) | | | | Maximum Local User Accounts | 1024 | | Maximum Local Groups | 256 | | Maximum Shared Folder | 256 | | Windows Access Control List (ACL) Integration | Yes | | | | Syslog Events per Second | 100 | | | | VPN Server | Yes
Maximum Connections: 5
| | | | LAN | 1 x RJ45 Gigabit | | Wake on LAN/WAN | Yes | | Reset Button | Yes | | Kensington Security Slot | Yes | | System Fan | 3.15 x 3.15" (80 x 80 mm) | | Fan Speed Mode | Cool mode
Quiet mode
| | Power Recovery | Yes | | Noise Level | 19 dBA | | Scheduled Power On/Off | Yes | | Power Supply Unit / Adapter | 60 W | | AC Input Power Voltage | 100 to 240 VAC | | Power Frequency | 50/60 Hz, single phase | | Power Consumption | 13.64 W (access)
4.32 W (HDD hibernation)
| | British Thermal Unit | 46.57 BTU/hr (access)
14.75 BTU/hr (HDD hibernation)
| | RoHS Compliant | Yes | | Certification | FCC Class B
CE Class B
BSMI Class B | | Operating Temperature | 40 to 113°F / 5 to 45°C
Adapter Operating Temperature: 32 to 104°F / 0 to 40°C
| | Storage Temperature | -5 to 140°F / -20 to 60°C | | Relative Humidity | 5 to 95% RH | | Dimensions (H x W x D) | 6.5 x 4 x 8.9" / 165 x 100 x 225.5 mm | | Weight | 32 oz / 0.9 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 11.3 x 10.7 x 4.9" |
