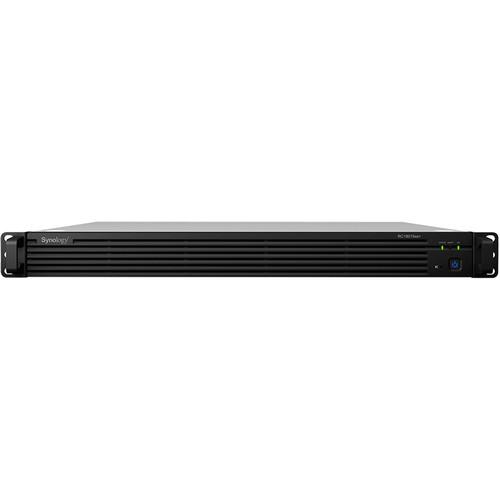

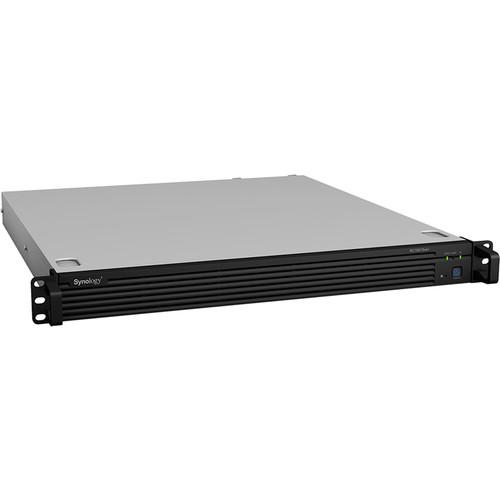

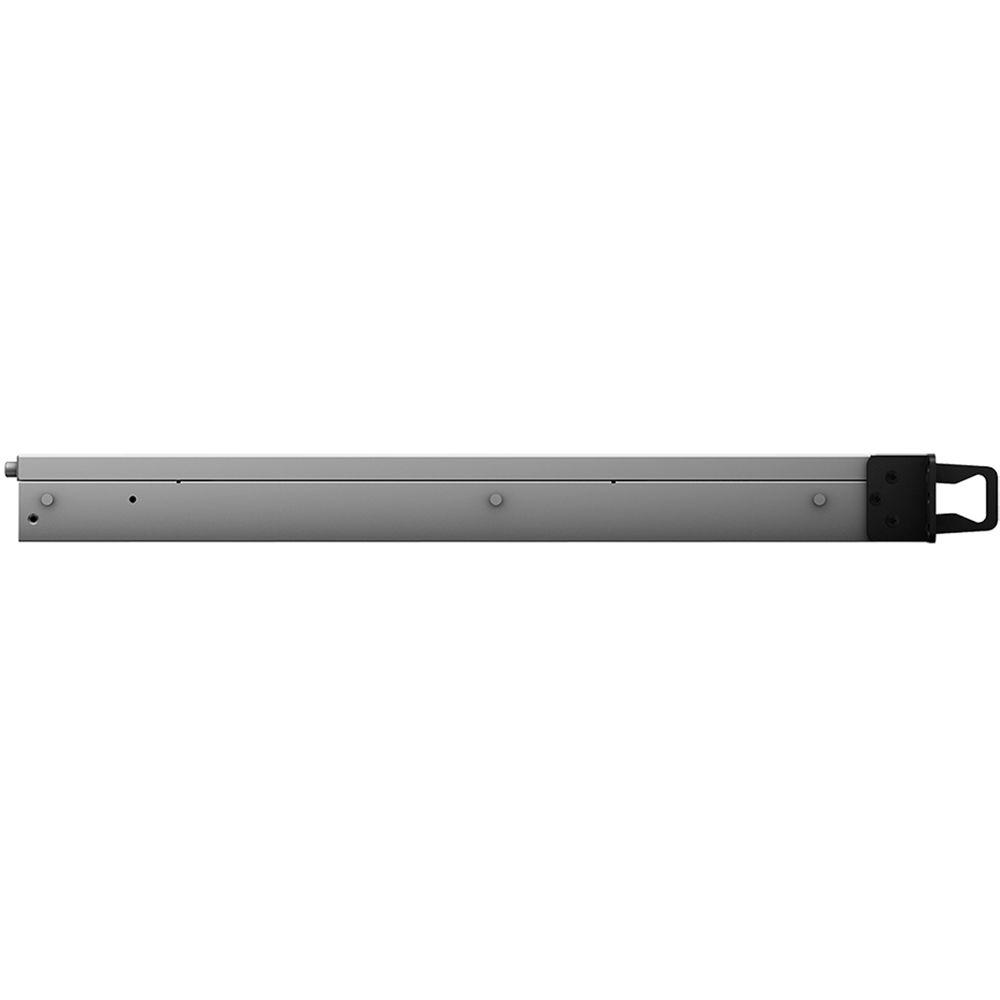

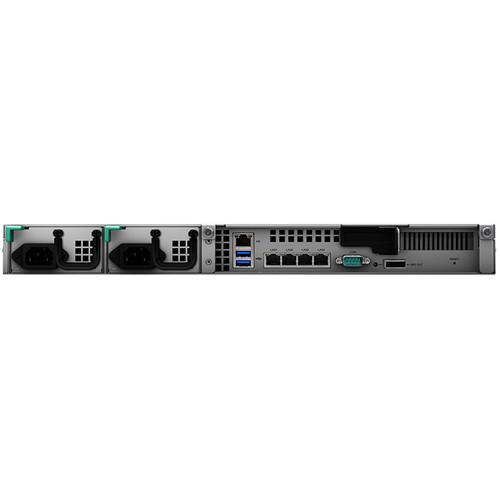

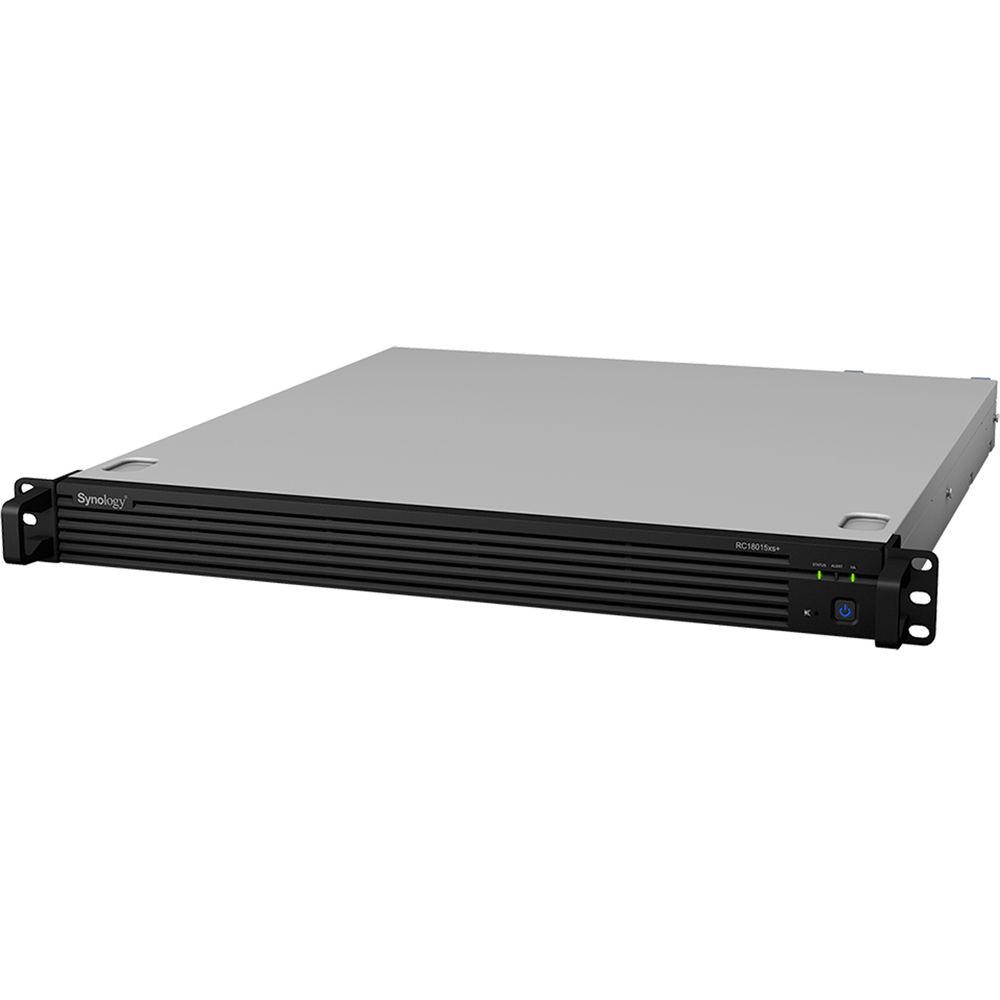

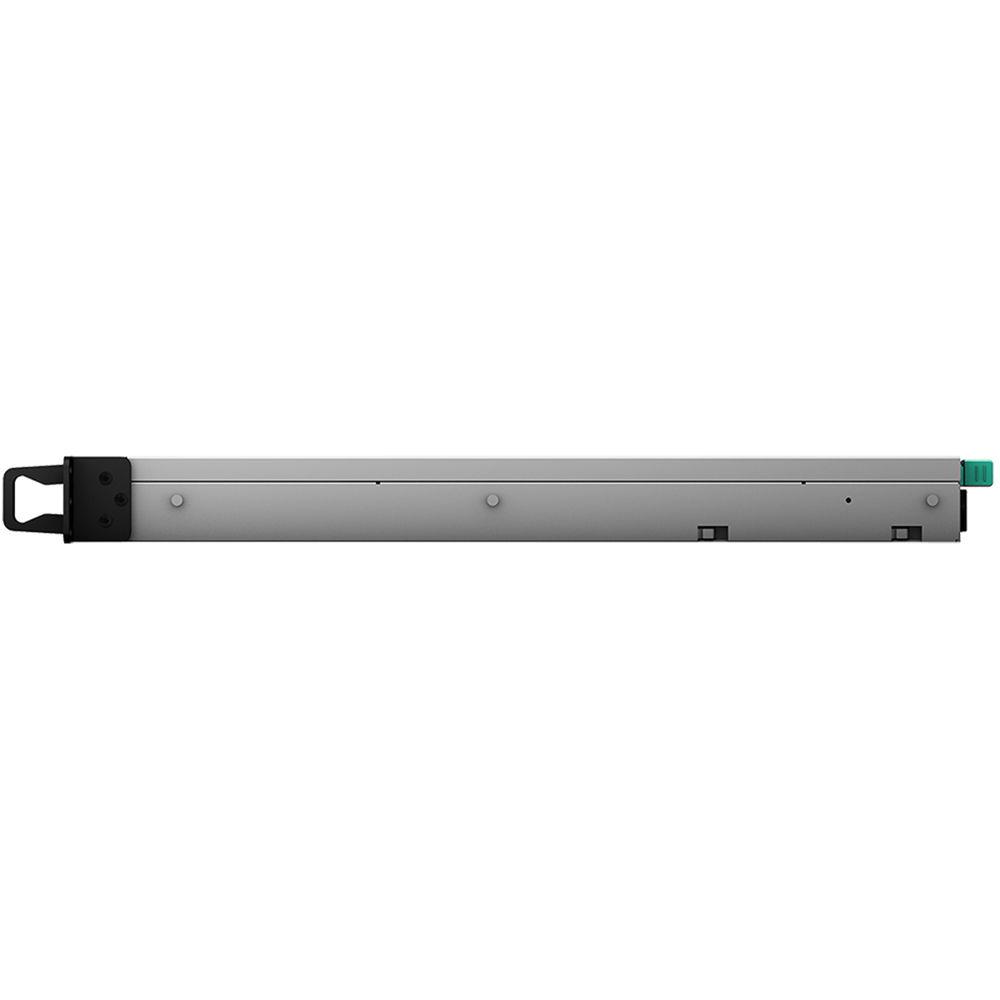

User Manual for Synology RackStation RC18015xs NAS Server Click to enlarge the picture
Contents of the user manual for the Synology RackStation RC18015xs NAS Server
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology RackStation RC18015xs NAS Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description When combined with another RackStation RC18015xs+ and at least one RXD1215sas 12-Bay Expansion Unit, the RackStation RC18015xs+ NAS Server from Synology is a storage solution that features a high-availability design, snapshot technology, and massive scalability up to 180 drives. By utilizing two RC18015xs+ units, one will act as an active server, while the other acts as a passive server. With this active/passive structure, services are automatically switched over to the passive server if the active server unexpectedly goes offline.
The RC18015xs+ runs using the Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 3.3 GHz Intel Xeon E3-1230 v2 Quad-Core processor and its 8GB (2 x 4GB) of ECC RAM, which is upgradeable to 32GB (4 x 8GB), helps to ensure enterprise-level data accuracy and speed for mission critical tasks. Network connectivity is achieved using 4 x RJ-45 1GbE LAN ports with Link Aggregation / Failover support. When using dual 10GbE connections bonded with Link Aggregation, the RC18015xs+ deliver a throughput of over 2,270 MB/s and 355,400 IOPS. Supported RAID types include Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10.
The RackStation RC18015xs+ operates using dual redundant 150W power supplies at 100-240 VAC and 50/60 Hz (single phase). It includes an accessory pack and 2 x AC power cords. This unit is protected by a limited 5-year warranty. - High-Availability Cluster Design
- By combining two computing servers and multiple storage units into a single high-availability cluster, the RC18015xs+ and RXD1215sas deliver high reliability and data availability. With the active/passive structure, services are automatically switched over to one server if the other unexpectedly goes offline, helping your business avoid costly downtime
- Massive Scalability up to 180 Drives
- Up to fifteen RXD1215sas units can be connected to the dual RC18015xs+ computing nodes, accommodating massive scalability up to 180 drives and maximum raw storage beyond 1PB. The shared storage architecture eliminates the need for data replication over the network, in addition to drastically reducing deployment costs
- Fast Performance and Throughput
- The RC18015xs+ delivers performance of over 2,270 MB/s throughput and 355,400 IOPS when using dual 10GbE connections bonded with Link Aggregation. Equipped with 8GB ECC RAM (upgradeable up to 32GB), the RC18015xs+ helps ensure enterprise-level data accuracy and speed for your mission critical tasks
- Hardware Redundancy
- In addition to the active/passive architecture, the RC18015xs+ and RXD1215sas are equipped with redundant hardware components, such as power supply units, SAS modules, SAS connection cables, system fans, LAN ports, and even the Heartbeat connection. In the event of component failure, the system continues operating normally while replacement parts are obtained and installed
- 10GbE
- In addition to the default four Gigabit Ethernet ports (plus one dedicated port for the Heartbeat), the RC18015xs+ comes with one PCI Express 3.0 x8 slot (running at x8 mode), accommodating installation of one 10GbE network interface card (NIC) for maximized bandwidth
- Synology Replacement Service (SRS)
- The Synology Replacement Service (SRS) provides free shipment of replacement units as early as the next business day. SRS can expedite the process of replacing defective products and minimize service downtime. SRS is available in selected countries
- Synology DiskStation Manager (DSM)
- Synology DiskStation Manager (DSM) is a browser-based operating system running on every RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work
- Data Protection
- The RC18015xs+ features the Btrfs file system and includes data snapshot technology, allowing for point-in-time data backup and recovery.
Frequent, Scheduled Backup - Automatically create point-in-time copies of data up to every 5 minutes without affecting performance, helping to guarantee granular data backup and recovery
Customizable Retention Policy - Retain up to 256 hourly, daily, or weekly recovery points according to your individual needs. Smart retention options automatically delete unneeded versions
Instantaneous Snapshots - Capture snapshots instantly and backup data without worrying about files being modified or deleted during the backup process - Business Environment Integration
- With the support of Windows AD, LDAP, and Domain Trust, the RC18015xs+ helps enable seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on the RC18015xs+ allows IT administrators to fine tune access controls and set up privileges to files and folders on the RC18015xs+ through the familiar Windows user interface. With compatibility for major protocols, the RC18015xs+ can help eliminate server configuration overhead and enhance IT administrators' efficiency
- Seamless Storage Solution for Virtualization Environments
- The RC18015xs+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere 5 & VAAI integration, the RC18015xs+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks
- Unified Storage System
- The RC18015xs+ enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows, Mac, and Linux platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). The RC18015xs+ provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed
- Synology CMS (Central Management System)
- For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issues right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without any extra configuration
- Cloud Solutions
- With comprehensive cloud solutions, the RC18015xs+ lets you create your own private cloud. Cloud Station is a suitable package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM - no one will be able to access its content without your private key
- Secure Your Data
- The RC18015xs+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, and network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, the RC18015xs+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention
UPC: 846504001941 In the Box Synology RackStation RC18015xs+ NAS Server Accessory Pack 2 x AC Power Cords Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RC18015xs NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RC18015XS+ Specs | | | Media Card Slots | None | | Maximum Filled Capacity | 200 TB | | Connections | 1 x Infiniband
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
4 x RJ45 (Gigabit Ethernet) | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Expansion Slots | 1 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Xeon E3-1230 v2 Quad-Core | | Clock Speed | Base: 3.3GHz | | Total Installed Memory | 8 GB ECC DDR3 | | User-Replaceable Memory | 2 x 4 GB | | Total Memory Slots | 4 | | Maximum Memory Capacity | 32 GB | | | | iSCSI LUN | 512 | | iSCSI Target | 128 | | Max Concurrent Connections | 2048 | | Max Folders | 512 | | Max Groups | 512 | | Max Sync Tasks | 32 | | Max User Accounts | 16,000 | | Max Volume Number | 1024 | | | | OS Compatibility | Windows Server 2012 | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS
Internal: Btrfs, EXT4 | | | | Power Consumption | 60.16 W (Typical) | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 150 W (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 6 x 40 mm Fans | | Noise Level | 48 dBA | | Dimensions | 1.7 x 16.9 x 18.9" / 44.0 x 430.0 x 480.0 mm | | Weight | 16.1 lb / 7.3 kg | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 23.8 x 21.6 x 7.6" |
