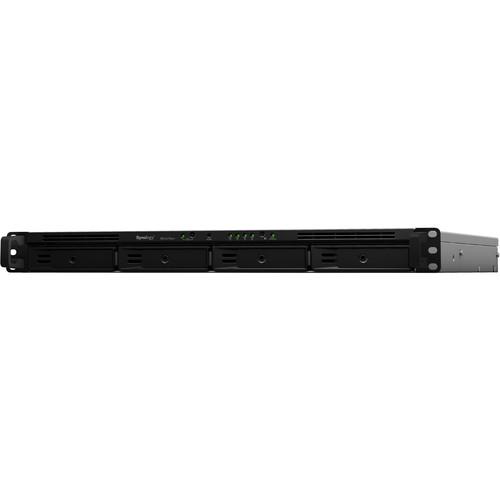

User Manual for Synology RackStation RS1619xs 4-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS1619xs 4-Bay NAS Enclosure
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology RackStation RS1619xs 4-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description The RackStation RS1619xs+ 4-Bay NAS Enclosure from Synology delivers high performance and scalability for businesses that require a flexible, reliable, and efficient storage solution. This unit has four drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their RS1619xs+, the optional RX1217/RX1217RP expansion units offer an additional twelve drive bays.
The RackStation RS1619xs+ has a 1 RU form factor is powered by a 2.2 GHz Intel Xeon D-1527 Quad-Core processor, which will allow you to run multiple functions simultaneously. The 8GB of DDR4 ECC RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 64GB by installing a 16GB module into the four DIMM slots. Also featured are two USB 3.0 Type-A ports which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which help to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS, there is one PCIe 3.0 x8 slot that supports x8 cards and can be used to install a 10GbE/25GbE NIC for fast data transmission. Furthermore, dual M.2 2280 slots support NVMe and SATA SSDs for caching.
The RackStation RS1619xs+ runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, and Basic, each of which offers redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized. Sequential read speeds are supported up to 1527 MB/s.
Synology has engineered the RackStation RS1619xs+ to be energy efficient. Not only does it offer two 40 x 40mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operational expenses. The RackStation RS1619xs+ is equipped with dual redundant 150W power supplies that operate using 100-240 VAC at 50/60 Hz. Included is an accessory pack and two AC power cords. Protection is provided by a limited 5-year hardware warranty. General Features - Variable Options to Boost System Computing Performance
- Equipped with a PCIe 3.0 slot, the RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.
M.2 SSD Support
Dual M.2 2280 slots support NVMe and SATA SSDs.
10GbE / 25GbE Support
Optional high-speed network capacity for bandwidth-intensive environments. - Complete iSCSI and Virtualization Solutions
- Synology iSCSI storage supports most virtualization solutions, including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.
- Next-Generation File System for Improved Data Protection
- The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder/User Quota System
Provides comprehensive quota control on all user accounts and shared folders.
Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File or Folder Level Data Restoration
Makes data recovery fast and flexible.
Automatic File Self-Healing Detects and recovers corrupted files without user intervention. - Backup Solution
- The RS1619xs+ integrates various backup applications to help safeguard your important data on devices with an intuitive user interface and durable storage technologies.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for Office 365 / G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology. - Digital Asset Protection
- Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyzes system settings, password strength, network preferences, and removes any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-Bit Encryption
Encrypt shared folders and network data transmission to keep data from unauthorized access.
2-Step Verification
Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
Trust Level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files. - Powered by Synology DSM
- DSM UI
Synology's operating system has an intuitive user interface and powerful capabilities.
Public Cloud Integration
Backup and synchronize data between your public cloud accounts and your NAS.
High Availability
Helps ensure seamless transitions between clustered servers in the event of a server failure.
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and vritual machines on iSCSI LUNs in the event of a disaster.
VMM
Run various operating systems in isolated sandboxes. Seamlessly clone, restore, and migrate virtual machines.
Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices. - Synology Replacement Service (SRS)
- SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity
- Limited 5-Year Warranty
- Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services.
UPC: 846504003068 In the Box Synology RackStation RS1619xs+ 4-Bay NAS Enclosure Accessory Pack 2 x AC Power Cords Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS1619xs 4-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RackStation RS1619xs+ Specs | | | Number of Bays | 4 x 2.5"/3.5"
2 x M.2 (2280) | | Media Card Slots | None | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA (Unspecified Version) | | Form Factor | Rackmount | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Hot-Swap Support | Yes | | Expansion Slots | 1 x PCIe 3.0 x8 (x8 mode) | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Xeon D-1527 Quad-Core | | Clock Speed | Base: 2.2GHz / Maximum Boost: 2.7 GHz | | Total Installed Memory | 8 GB ECC DDR4 | | User-Replaceable Memory | 1 x 8 GB | | Total Memory Slots | 4 x DIMM | | Maximum Memory Capacity | 64 GB | | | | Supported Protocols | CalDAV
L2TP
OpenVPN
PPTP
SNMP
SSH
Telnet
iSCSI | | iSCSI LUN | 512 | | iSCSI Target | 256 | | Max Cameras Supported | 75 | | Max Concurrent Connections | 10000 | | Max Folders | 512 | | Max Groups | 512 | | Max Sync Tasks | 32 | | Max User Accounts | 16000 | | Max Volume Number | 1024 | | | | Installed Operating System | Synology | | OS Compatibility | Windows 7
Windows 10
macOS 10.11 or Later | | File System Formats Supported | Internal: Btrfs, EXT4
External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | | | Power Consumption | 68.68 W (Typical)
34.78 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 150 W (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Certifications | BSMI, CCC, CE, EAC, FCC, Kcc, RCM, VCCI, as per Manufacturer | | | | Cooling | 2 x 40 mm Fans | | Noise Level | 39.3 dBA | | Built-In Speakers | None | | Status Monitoring | LED Indicator | | Dimensions | 18.9 x 1.7 x 20.4" / 480.0 x 44.0 x 518.6 mm | | Weight | 18.1 lb / 8.2 kg | | | | Package Weight | 25.7 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 8.0" |
