User Manual for Synology RackStation RS18017xs 12-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS18017xs 12-Bay NAS Enclosure
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology RackStation RS18017xs 12-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

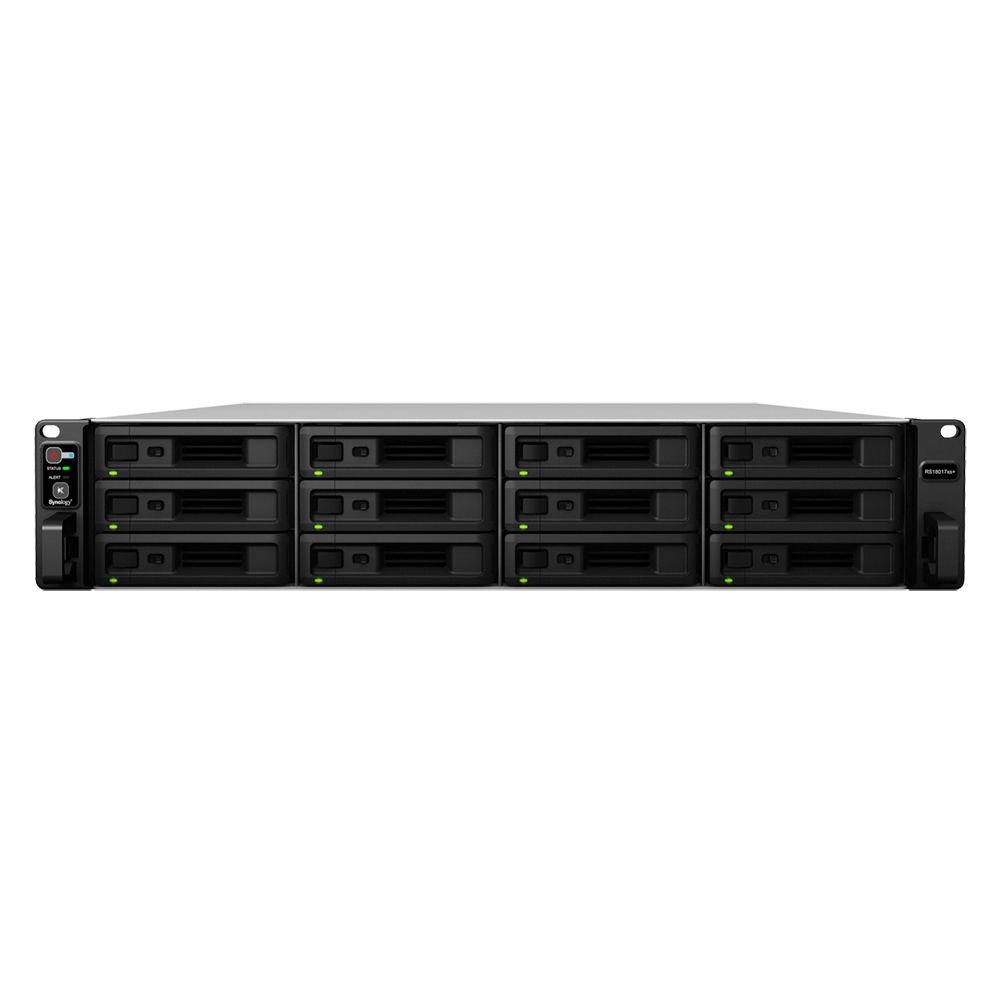

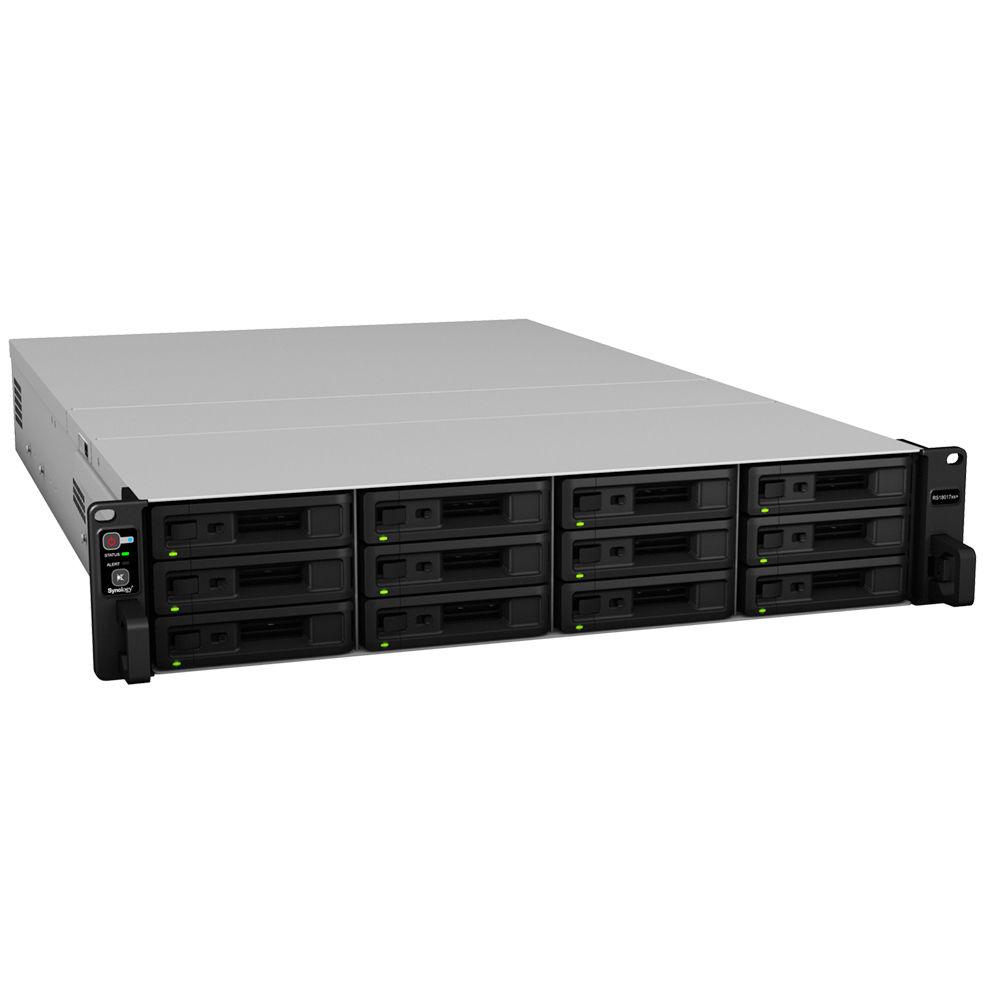

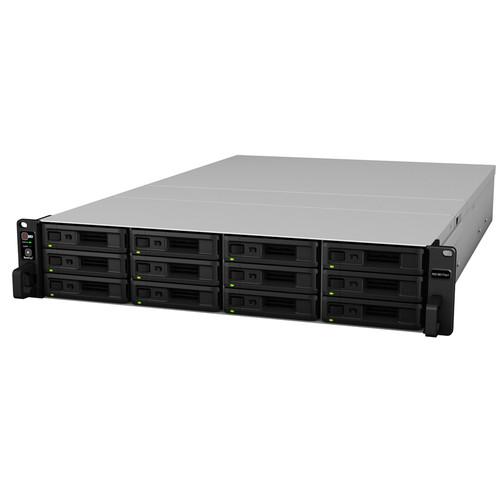

Product description The Synology RackStation RS18017xs+ 12-Bay NAS Enclosure features four Gigabit Ethernet and two 10GbE ports as well as twelve storage bays, so you can provide a custom storage solution for network-connected users. The twelve bays support SATA and SAS interfaces on 2.5" SSDs along with 2.5" and 3.5" HDDs. Once user-supplied drives are installed into the bays, you can configure them in a RAID 0, 1, 5, 6, 10, JBOD, or Basic mode to preserve data and increase the drives' read and write speeds. Aside from storage capabilities, the RS18017xs+ leverages a 2.2 GHz Intel Xeon D-1531 six-core processor and 16GB of DDR4 ECC memory to quickly manage and deliver data.

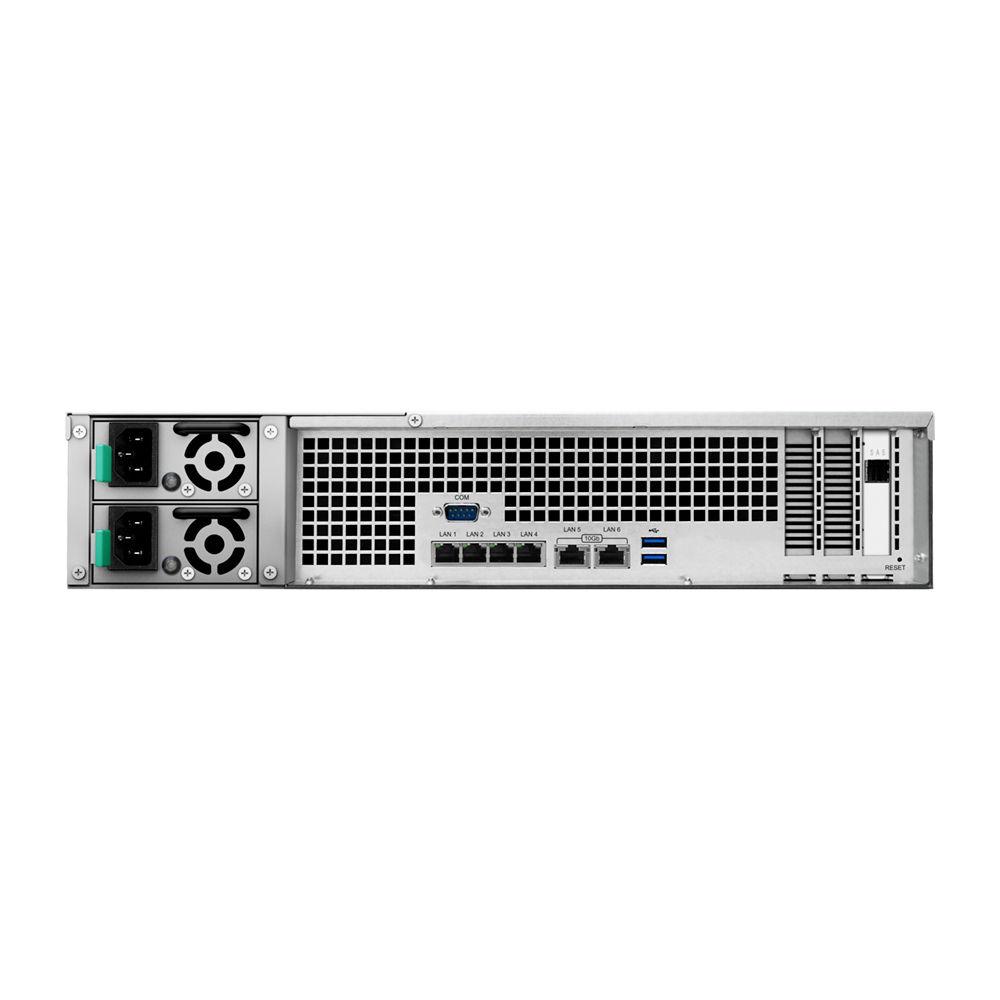

The RackStation RS18017xs+ comes with an expansion port as well as two USB 3.0 ports for attaching optional storage expansion units, thumb drives, and other devices. For future upgrades, the RS18017xs+ can hold up to 128GB of RAM and additional 10GbE network interfaces cards installed in its two PCIe 3.0 x8 slots. To cool all the internal components, four onboard 80mm fans spin at various speeds to help dissipate the internal heat. In addition, the NAS features a 2 RU rack-mountable design and runs on two redundant 500W power supplies. - Performance
- The RS18017xs+ is built for flexible storage management with fast performance at over 568,000 sequential read IOPS and 4800 MB/s sequential read throughputs. DDR4 ECC RDIMM and 10GbE connectivity provide data accuracy and performance for a mission-critical environment.
- Scalability and Reliability
- The RS18017xs+ provides flexible storage scalability with optional RX1217sas and RX2417sas expansion units. You can connect up to 7 expansion units to the RS18017xs+, allowing a business to start small and scale big.
- Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Storage Efficiency
- The Btrfs file system introduces advanced storage technologies to meet the management needs of modern large scale businesses: flexible shared folder/user quota system, snapshot replication, file or folder level data restoration, and automatic file self-healing detection and recovery.
- Safeguarding Data
- The RS18017xs+ comes with a high-availability feature that helps ensure seamless transition between clustered servers in the event of a server failure with minimal impact to applications. To maximize storage space, Hyper Backup is available for backing up data in multiple versions with block-level incremental backup and cross-version deduplication. Moreover, the RS18017xs+ includes Cloud Station suite, providing automatic cross-platform data synchronization with file version control.
- Additional Features
-
- CMS - Manage multiple Synology NAS servers simultaneously through a centralized interface to increase administrative efficiency and flexibility
- MailPlus - Set up a secure, reliable, and private mail server with a stylish and intuitive user interface
- Collaboration Suite - Synology Office, Calendar, and Chat for private communication and user-friendly content organization
UPC: 846504002528 In the Box Synology RackStation RS18017xs+ 12-Bay NAS Enclosure Accessory Pack 2 x Power Cords Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS18017xs 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RackStation RS18017xs+ Specs | | | Number of Bays | 12 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 4 x RJ45 (Gigabit Ethernet)
2 x RJ45 (10GbE)
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x Infiniband | | Compatible Drive Interface | SAS, SATA | | Form Factor | Rackmount (2 RU) | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Hot-Swap Support | Yes | | Expansion Slots | 2 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Xeon D-1531 6-Core | | Clock Speed | Base: 2.2GHz / Maximum Boost: 2.7 GHz | | Total Installed Memory | 16 GB ECC DDR4 | | User-Replaceable Memory | 1 x 16 GB | | Total Memory Slots | 4 x DIMM | | Maximum Memory Capacity | 128 GB | | | | iSCSI LUN | 512 | | iSCSI Target | 128 | | Max Volume Number | 1024 | | | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | | | Power Consumption | 141.96 W (Typical)
77.23 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 500 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | VPN Server Connections | 30 | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 4 x 80 mm Fans | | Noise Level | 49.8 dBA | | Dimensions | 3.5 x 19.0 x 28.5" / 88.0 x 482.0 x 724.0 mm | | Weight | 32.0 lb / 14.5 kg | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 33.5 x 24.0 x 9.0" |
