Synology RackStation RS18017xs 144TB 12-Bay NAS

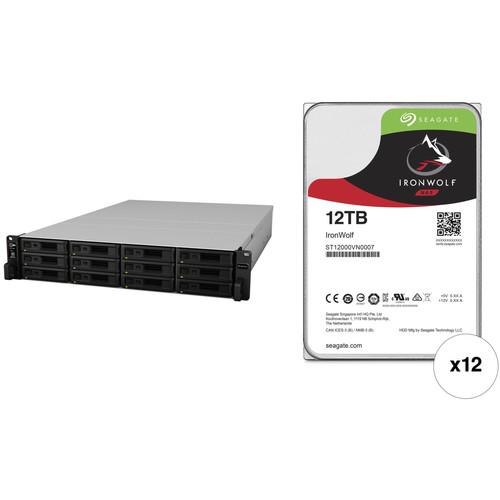

User Manual for Synology RackStation RS18017xs 144TB 12-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives Synology
• Brand: Synology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Synology Network Attached Storage Drives

Product description

• Synology RackStation RS18017xs+ 12-Bay NAS Enclosure The Synology RackStation RS18017xs+ 12-Bay NAS Enclosure features four Gigabit Ethernet and two 10GbE ports as well as twelve storage bays, so you can provide a custom storage solution for network-connected users. The twelve bays support SATA and SAS interfaces on 2.5" SSDs along with 2.5" and 3.5" HDDs. Once user-supplied drives are installed into the bays, you can configure them in a RAID 0, 1, 5, 6, 10, JBOD, or Basic mode to preserve data and increase the drives' read and write speeds. Aside from storage capabilities, the RS18017xs+ leverages a 2.2 GHz Intel Xeon D-1531 six-core processor and 16GB of DDR4 ECC memory to quickly manage and deliver data.

  The RackStation RS18017xs+ comes with an expansion port as well as two USB 3.0 ports for attaching optional storage expansion units, thumb drives, and other devices. For future upgrades, the RS18017xs+ can hold up to 128GB of RAM and additional 10GbE network interfaces cards installed in its two PCIe 3.0 x8 slots. To cool all the internal components, four onboard 80mm fans spin at various speeds to help dissipate the internal heat. In addition, the NAS features a 2 RU rack-mountable design and runs on two redundant 500W power supplies.
  Performance
  • The RS18017xs+ is built for flexible storage management with fast performance at over 568,000 sequential read IOPS and 4800 MB/s sequential read throughputs. DDR4 ECC RDIMM and 10GbE connectivity provide data accuracy and performance for a mission-critical environment.
  Scalability and Reliability
  • The RS18017xs+ provides flexible storage scalability with optional RX1217sas and RX2417sas expansion units. You can connect up to 7 expansion units to the RS18017xs+, allowing a business to start small and scale big.
  Virtualization Solutions
  • Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
  Storage Efficiency
  • The Btrfs file system introduces advanced storage technologies to meet the management needs of modern large scale businesses: flexible shared folder/user quota system, snapshot replication, file or folder level data restoration, and automatic file self-healing detection and recovery.
  Safeguarding Data
  • The RS18017xs+ comes with a high-availability feature that helps ensure seamless transition between clustered servers in the event of a server failure with minimal impact to applications. To maximize storage space, Hyper Backup is available for backing up data in multiple versions with block-level incremental backup and cross-version deduplication. Moreover, the RS18017xs+ includes Cloud Station suite, providing automatic cross-platform data synchronization with file version control.
  Additional Features
  • • CMS - Manage multiple Synology NAS servers simultaneously through a centralized interface to increase administrative efficiency and flexibility
    • MailPlus - Set up a secure, reliable, and private mail server with a stylish and intuitive user interface
    • Collaboration Suite - Synology Office, Calendar, and Chat for private communication and user-friendly content organization
  UPC: 846504002528
• 12 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  • IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
  • Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
  • IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
  • Enables user workload rate of 180TB/year
  • Designed for always-on, always-accessible 24×7 performance
  UPC: 763649123386

• RackStation RS18017xs+ 12-Bay NAS Enclosure ufqyufbrrasrbwxat
• Accessory Pack
• 2 x Power Cords
• Limited 5-Year Warranty

• 12 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology RackStation RS18017xs+ 12-Bay NAS Enclosure

  Number of Bays	12 x 2.5"/3.5"
  Media Card Slots	None
  Connections	4 x RJ45 (Gigabit Ethernet) 2 x RJ45 (10GbE) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) 1 x Infiniband
  Compatible Drive Interface	SAS, SATA
  Form Factor	Rackmount (2 RU)
  RAID Modes	RAID 0, 1, 10, 5, 6, JBOD
  Hot-Swap Support	Yes
  Expansion Slots	2 x PCIe 3.0 x8
  Link Aggregation and Failover Support	Yes
  Wake on LAN	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Processor	Intel Xeon D-1531 6-Core
  Clock Speed	Base: 2.2GHz / Maximum Boost: 2.7 GHz
  Total Installed Memory	16 GB ECC DDR4
  User-Replaceable Memory	1 x 16 GB
  Total Memory Slots	4 x DIMM
  Maximum Memory Capacity	128 GB

  iSCSI LUN	512
  iSCSI Target	128
  Max Volume Number	1024

  File System Formats Supported	External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: Btrfs, EXT4

  Power Consumption	141.96 W (Typical) 77.23 W (Standby)
  Power Source	Internal Power Supply
  PSU Wattage	2 x 500 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  VPN Server Connections	30

  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	5 to 95%
  Storage Temperature	-5 to 140°F / -21 to 60°C
  Certifications	BSMI, CE, FCC, RoHS, as per Manufacturer

  Cooling	4 x 80 mm Fans
  Noise Level	49.8 dBA
  Dimensions	3.5 x 19.0 x 28.5" / 88.0 x 482.0 x 724.0 mm
  Weight	32.0 lb / 14.5 kg

  Box Dimensions (LxWxH)	33.5 x 24.0 x 9.0"

• 12 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	12.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Mean Time Between Failures (MTBF)	1000000.00 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	0.8 W (Standby) 0.8 W (Idle)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"
