User Manual for Synology RackStation RS2418 72TB 12-Bay NAS Enclosure Kit with Seagate NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS2418 72TB 12-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology RackStation RS2418 72TB 12-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

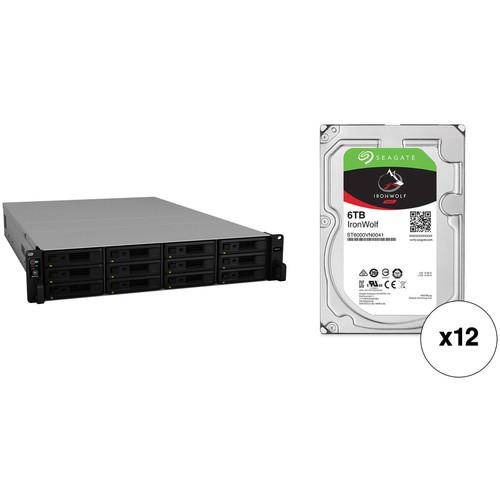

Product description This Kit combines the Synology RackStation RS2418+ 12-Bay NAS Enclosure with twelve Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 72TB. - Synology RS2418+ RackStation 12-Bay NAS Enclosure Replacing their RS2416+, the RS2418+ RackStation 12-Bay NAS Enclosure from Synology is a scalable NAS designed for growing businesses. It provides up to 144TB of storage space, as each of its 12 drive bays supports drives up to 12TB, and it can be expanded to 24 drives using the RX1217(RP) expansion unit. Driven by a 2.1 GHz Intel Atom C3538 Quad-Core processor, the RS2418+ delivers sequential read speeds of up to 1400 MB/s and iSCSI 4K random writes of 27,000 IOPS. It comes configured with 4GB of 2133 MHz non-ECC and unbuffered memory, which can be expanded to 64GB using ECC unbuffered modules. Network connectivity is achieved using four Gigabit LAN ports, while an optional NIC can be installed within the PCIe 3.0 slot. Also featured is a single power supply and protection is provided by a limited 3-year warranty. UPC: 846504002559
- 12 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 128MB cache, providing users with an ample storage capacity and data transfer speeds of up to 195 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 128MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117545 In the Box - RS2418+ RackStation 12-Bay NAS Enclosure afyfrdfqcuruvutqcdcxseedtdsssuxsdcsxcf
- 1 x Power Cord
- Limited 3-Year Warranty
- 12 x Seagate - 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS2418 72TB 12-Bay NAS Enclosure Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology RS2418+ RackStation 12-Bay NAS Enclosure
| | | Number of Bays | 12 x 3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 144 TB | | Connections | 4 x RJ45 (Gigabit Ethernet) | | Expansion Slots | 1 x PCIe 3.0 | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Atom C3538 Quad-Core | | Clock Speed | Base: 2.1GHz | | Total Installed Memory | 4 GB 2133 MHz DDR4 | | Maximum Memory Capacity | 64 GB | | | | Dimensions | 26.1 x 16.9 x 3.5" / 66.4 x 43.0 x 8.8 cm | | Weight | 29.1 lb / 13.2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 24.0 x 9.0" | - 12 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 6.0 TB | | Cache Memory | 128 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 195 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.7 dB (Idle)
2.8 dB (Active) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 9.0 W (Active)
7.2 W (Idle)
0.6 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.7 lb / 780.2 g | | | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.4" |
