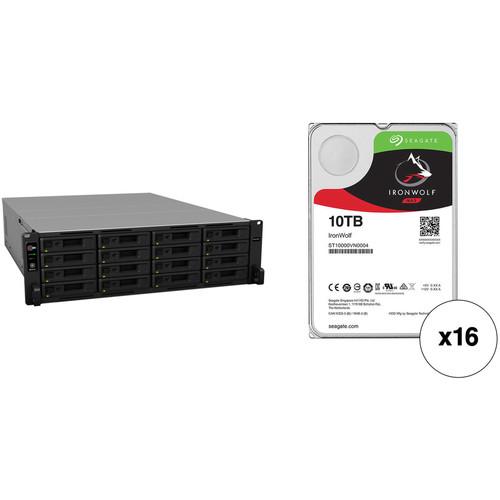

User Manual for Synology RackStation RS2818RP 160TB 16-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives Synology
• Brand: Synology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Synology Network Attached Storage Drives

Product description

• Synology RackStation RS2818RP+ 16-Bay NAS Server Well-suited for small- and medium-sized businesses, the RackStation RS2818RP+ 16-Bay NAS Server from Synology delivers flexibility in terms of its expandable storage capacity, upgradeable memory, and optional high-speed NIC support. It can serve as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in growing businesses. This unit has a 3 RU form factor and 16 drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their RS2818RP+, the optional RX1217/RX1217RP expansion units offer an additional 12 drive bays, and one of these units is supported via an integrated expansion port. Additionally, should power to the NAS be interrupted, the RS2818RP+ comes equipped with a 500W redundant power supply.

  The RackStation RS2818RP+ is powered by a 2.1 GHz Intel Atom C3538 Quad-Core processor, which will allow you to run multiple functions simultaneously. The built-in 4GB of DDR4 RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 64GB by installing four 16GB modules into the available memory slots. Also featured are two USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS with a M.2 SSD for caching or 10 Gigabit Ethernet, there is a PCIe Gen 3.0 x8 slot that runs at x4.

  The RackStation RS2818RP+ runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

  Synology has engineered the RackStation RS2818RP+ to be energy efficient. Not only does it offer three 80 x 80mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS2818RP+ operates on 100-240 VAC at 50/60 Hz and includes an accessory pack and two AC power cords. Protection is provided by a limited 3-year hardware warranty.

  General Features

  Scalability and Reliability
  • The RS2818RP+ provides a large, scalable storage capacity with affordable total cost of ownership. The 3 RU chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology RX1217 or RX1217RP Expansion Unit, providing a total drive count of 28 without disrupting host services.
  Next-Generation File System for Improved Data Protection
  • The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

    Flexible Shared Folder and User Quota System
    Provides comprehensive quota control on all user accounts and shared folders.

    Snapshot Replication
    Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.

    File- or Folder-Level Data Restoration Helps make data recovery user-friendly and flexible.

    Automatic File Self-Healing
    Detects and recovers corrupted files without user intervention.
  Backup Solution
  • The RS2818RP+ integrates various backup applications to help safeguard your important data on devices with an intuitive user interface and durable storage technologies.

    Active Backup for Server
    An agentless backup solution helps protect data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.

    Hyper Backup
    Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

    Desktop Backup
    Help safeguard your system with Cloud Station Backup and back up data stored on macOS to your Synology NAS with Time Machine.

    Active Backup for Office 365/G Suite
    On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
  Fully Certified Storage Virtualization Solutions
  • Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
  Digital Asset Protection
  • Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to help protect against sudden data loss and potential security holes.

    Security Advisor
    Analyzes system settings, password strength, network preferences, and removes possible malware.

    AppArmor
    A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.

    AES 256-Bit Encryption
    Encrypt shared folders and network data transmission to keep data from unauthorized access.

    2-Step Verification
    Helps prevent others from logging into your DSM by generating a one-time password (OTP) on your mobile device.

    Trust Level
    Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
  Powered by Synology DSM
  • DSM UI
    Synology's operating system has an intuitive user interface and powerful capabilities.

    Public Cloud Integration
    Backup and synchronize data between your public cloud accounts and your NAS.

    High Availability
    Helps ensure smooth transitions between clustered servers in the event of server failures.

    Security
    Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

    Snapshot Replication
    Helps provide schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.

    Desktop Backup
    Simplified backup solution for your Windows, Mac, and mobile devices.
  UPC: 846504002900
• 16 x Seagate 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10¹⁵ non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.

  General Features

  Optimized for NAS with AgileArray
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  Reduced Lag Times
  • Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
  IronWolf Health Management
  • IronWolf Health Management focuses on prevention, intervention, and recovery
  Rotational Vibration (RV) Mitigation
  • IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
  Multi-User Environments
  • IronWolf provides a workload rate of 180TB per year
  Cache Memory
  • IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
  1.0 Million Hours MTBF | Limited 3-Year Warranty
  • This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
  Designed for 24x7 Performance
  • Access your data on your NAS at virtually any time, whether remotely or on site

  Best-Fit Applications

  • 1-8 bay business network attached storage (NAS)
  • Desktop RAIDs and servers
  • Multimedia server storage
  • Private cloud
  UPC: 763649117569

• RackStation RS2818RP+ 16-Bay NAS Server dxszysxtazrdeuszfadebtzuxstvusayw
• 1 x Accessory Pack
• 2 x AC Power Cords
• Limited 3-Year Warranty

• 16 x Seagate - 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology RackStation RS2818RP+ 16-Bay NAS Server

  Number of Bays	16 x 2.5"/3.5"
  Media Card Slots	None
  Maximum Filled Capacity	192 TB 336 TB (with Expansion)
  Connections	1 x Infiniband 4 x RJ45 (Gigabit Ethernet) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
  Compatible Drive Interface	SATA
  Hot-Swap Support	Yes
  Expansion Slots	1 x PCIe 3.0 x8 (x4 mode)
  Link Aggregation and Failover Support	Yes
  Wake on LAN	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Processor	Intel Atom C3538 Quad-Core
  Clock Speed	Base: 2.1GHz
  User-Replaceable Memory	1 x 4 GB
  Total Memory Slots	4
  Maximum Memory Capacity	64 GB

  Supported Protocols	AFP CIFS CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI

  OS Compatibility	Windows 7 Windows 8.1 Windows 10 macOS 10.11 or Later
  File System Formats Supported	External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: Btrfs, EXT4
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Brazilian Portuguese Czech Danish Dutch English French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish

  Power Consumption	138.1 W (Typical) 66.7 W (Standby)
  PSU Wattage	2 x 500 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Operating Temperature	41 to 95°F / 5 to 35°C
  Operating Humidity	5 to 95%
  Storage Temperature	-4 to 140°F / -20 to 60°C

  Cooling	3 x 80 mm Fans
  Noise Level	51 dBA
  Dimensions	5.2 x 19.0 x 25.8" / 132.3 x 482.0 x 656.5 mm
  Weight	38.4 lb / 17.4 kg

  Box Dimensions (LxWxH)	34.8 x 24.4 x 11.8"

• 16 x Seagate 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	10.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	3.2 dB (Active) 2.8 dB (Idle)

  Spindle Speed (RPM)	7200 RPM

  Encryption	None
  Endurance (Total Bytes Written)	180 TB
  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	6.8 W (Active) 4.42 W (Idle) 0.8 W (Standby)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm
  Weight	1.4 lb / 648.6 g

  Box Dimensions (LxWxH)	7.9 x 6.0 x 2.5"
