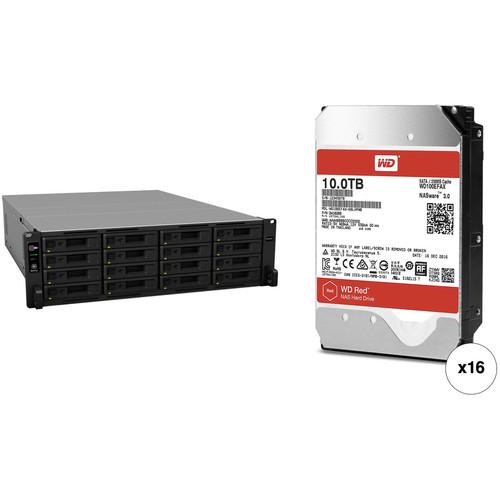

User Manual for Synology RackStation RS2818RP 160TB 16-Bay NAS Enclosure Kit with WD NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS2818RP 160TB 16-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology RackStation RS2818RP 160TB 16-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology RackStation RS2818RP+ 16-Bay NAS Server with sixteen WD 10TB Red 5400 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 160TB. - Synology RackStation RS2818RP+ 16-Bay NAS Server Well-suited for small- and medium-sized businesses, the RackStation RS2818RP+ 16-Bay NAS Server from Synology delivers flexibility in terms of its expandable storage capacity, upgradeable memory, and optional high-speed NIC support. It can serve as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in growing businesses. This unit has a 3 RU form factor and 16 drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their RS2818RP+, the optional RX1217/RX1217RP expansion units offer an additional 12 drive bays, and one of these units is supported via an integrated expansion port. Additionally, should power to the NAS be interrupted, the RS2818RP+ comes equipped with a 500W redundant power supply.
The RackStation RS2818RP+ is powered by a 2.1 GHz Intel Atom C3538 Quad-Core processor, which will allow you to run multiple functions simultaneously. The built-in 4GB of DDR4 RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 64GB by installing four 16GB modules into the available memory slots. Also featured are two USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS with a M.2 SSD for caching or 10 Gigabit Ethernet, there is a PCIe Gen 3.0 x8 slot that runs at x4.
The RackStation RS2818RP+ runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
Synology has engineered the RackStation RS2818RP+ to be energy efficient. Not only does it offer three 80 x 80mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS2818RP+ operates on 100-240 VAC at 50/60 Hz and includes an accessory pack and two AC power cords. Protection is provided by a limited 3-year hardware warranty. General Features - Scalability and Reliability
- The RS2818RP+ provides a large, scalable storage capacity with affordable total cost of ownership. The 3 RU chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology RX1217 or RX1217RP Expansion Unit, providing a total drive count of 28 without disrupting host services.
- Next-Generation File System for Improved Data Protection
- The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder and User Quota System Provides comprehensive quota control on all user accounts and shared folders.
Snapshot Replication Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File- or Folder-Level Data Restoration Helps make data recovery user-friendly and flexible.
Automatic File Self-Healing Detects and recovers corrupted files without user intervention. - Backup Solution
- The RS2818RP+ integrates various backup applications to help safeguard your important data on devices with an intuitive user interface and durable storage technologies.
Active Backup for Server An agentless backup solution helps protect data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup Help safeguard your system with Cloud Station Backup and back up data stored on macOS to your Synology NAS with Time Machine.
Active Backup for Office 365/G Suite On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology. - Fully Certified Storage Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Digital Asset Protection
- Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to help protect against sudden data loss and potential security holes.
Security Advisor Analyzes system settings, password strength, network preferences, and removes possible malware.
AppArmor A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-Bit Encryption Encrypt shared folders and network data transmission to keep data from unauthorized access.
2-Step Verification Helps prevent others from logging into your DSM by generating a one-time password (OTP) on your mobile device.
Trust Level Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files. - Powered by Synology DSM
- DSM UI
Synology's operating system has an intuitive user interface and powerful capabilities.
Public Cloud Integration Backup and synchronize data between your public cloud accounts and your NAS.
High Availability Helps ensure smooth transitions between clustered servers in the event of server failures.
Security Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
Snapshot Replication Helps provide schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
Desktop Backup Simplified backup solution for your Windows, Mac, and mobile devices. UPC: 846504002900 In the Box - RackStation RS2818RP+ 16-Bay NAS Server
- 1 x Accessory Pack
- 2 x AC Power Cords
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS2818RP 160TB 16-Bay NAS Enclosure Kit with WD NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology RackStation RS2818RP+ 16-Bay NAS Server
| Number of Bays | 16 x 2.5"/3.5" | Media Card Slots | None | Maximum Filled Capacity | 192 TB 336 TB (with Expansion) | Connections | 1 x Infiniband 4 x RJ45 (Gigabit Ethernet) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | Compatible Drive Interface | SATA | Hot-Swap Support | Yes | Expansion Slots | 1 x PCIe 3.0 x8 (x4 mode) | Link Aggregation and Failover Support | Yes | Wake on LAN | Yes | | Total Raw Capacity | None | Type | None | Flash Memory | None | | Processor | Intel Atom C3538 Quad-Core | Clock Speed | Base: 2.1GHz | User-Replaceable Memory | 1 x 4 GB | Total Memory Slots | 4 | Maximum Memory Capacity | 64 GB | | Supported Protocols | AFP CIFS CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI | | OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.11 or Later | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: Btrfs, EXT4 | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | Supported Languages | Brazilian Portuguese Czech Danish Dutch English French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish | | Power Consumption | 138.1 W (Typical) 66.7 W (Standby) | PSU Wattage | 2 x 500 W | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 41 to 95°F / 5 to 35°C | Operating Humidity | 5 to 95% | Storage Temperature | -4 to 140°F / -20 to 60°C | | Cooling | 3 x 80 mm Fans | Noise Level | 51 dBA | Dimensions | 5.2 x 19.0 x 25.8" / 132.3 x 482.0 x 656.5 mm | Weight | 38.4 lb / 17.4 kg | | Box Dimensions (LxWxH) | 34.8 x 24.4 x 11.8" |
