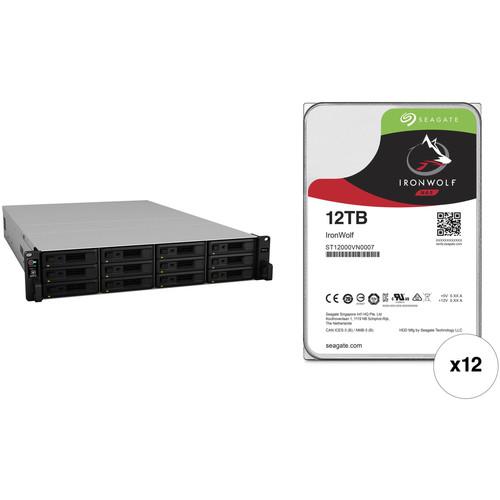

User Manual for Synology RackStation RS3618xs 144TB 12-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives Synology
• Brand: Synology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Synology Network Attached Storage Drives

Product description

• Synology RackStation RS3618xs 12-Bay NAS Server Well-suited for large-scale enterprises with demanding business applications, the RackStation RS3618xs 12-Bay NAS Server from Synology helps simplify data management, optimizes virtualization environments, and rapidly expands storage capacities. This unit has 12 drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their RS3618xs, the optional RX1217/RX1217RP expansion units offer an additional 12 drive bays, and two of these units are supported via an integrated expansion ports.

  The RackStation RS3618xs is powered by a 2.4 GHz Intel Xeon D-1521 Quad-Core processor, which will allow you to run multiple functions simultaneously. The built-in 8GB of DDR4 ECC RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 64GB by installing four 16GB modules into the available memory slots. Also featured are two USB 3.0 Type-A ports, which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which help to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS, there are two PCIe Gen 3.0 x8/x8 slots that support a 10GBE NIC and more.

  The RackStation RS3618xs runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

  Synology has engineered the RackStation RS3618xs to be energy efficient. Not only does it offer four 80 x 80mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS3618xs operates on 100-240 VAC at 50/60 Hz and includes an accessory pack and an AC power cords. Protection is provided by a limited 5-year hardware warranty.

  General Features

  Ready for 10GbE and Beyond
  • Dual PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, the RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
  Backup Solution
  • The RS3618xs integrates various backup applications to help safeguard your important data on devices with an intuitive user interface and durable storage technologies.

    Active Backup for Server
    An agentless backup solution helps protect data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.

    Hyper Backup
    Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

    Desktop Backup
    Help safeguard your system with Cloud Station Backup and back up data stored on macOS to your Synology NAS with Time Machine.

    Active Backup for Office 365/G Suite
    On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
  Fully Certified Storage Virtualization Solutions
  • Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
  Next-Generation File System for Improved Data Protection
  • The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

    Flexible Shared Folder and User Quota System
    Provides comprehensive quota control on all user accounts and shared folders.

    Snapshot Replication
    Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.

    File- or Folder-Level Data Restoration Helps make data recovery user-friendly and flexible.

    Automatic File Self-Healing
    Detects and recovers corrupted files without user intervention.
  Limited 5-Year Warranty
  • Synology's limited 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.
  Synology Replacement Service (SRS)
  • SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.
  Powered by Synology DSM
  • CMS
    Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.

    Snapshot Replication
    Helps provide schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.

    VMM
    Run various operating systems in isolated sandboxes. Seamlessly clone, restore, and migrate virtual machines.

    MailPlus
    MailPlus is a secure, reliable, and private mail server solution with an intuitive and modern mail client.

    Synology High Availability
    Helps ensure smooth transitions between clustered servers in the event of server failures.

    Drive
    A versatile solution for file management and synchronization.
  UPC: 846504003051
• 12 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  • IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
  • Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
  • IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
  • Enables user workload rate of 180TB/year
  • Designed for always-on, always-accessible 24×7 performance
  UPC: 763649123386

• RackStation RS3618xs 12-Bay NAS Server dxszysxtazrdeuszfadebtzuxstvusayw
• Accessory Pack
• AC Power Cord
• Limited 5-Year Warranty

• 12 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD dxszysxtazrdeuszfadebtzuxstvusayw

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Synology RackStation RS3618xs 12-Bay NAS Server

  Number of Bays	12 x 2.5"/3.5"
  Media Card Slots	None
  Maximum Filled Capacity	432 TB (with Expansion) 144 TB
  Connections	2 x Infiniband 4 x RJ45 (Gigabit Ethernet) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
  Compatible Drive Interface	SATA
  Hot-Swap Support	Yes
  Expansion Slots	2 x PCIe 3.0 x8
  Link Aggregation and Failover Support	Yes
  Wake on LAN	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Processor	Intel Xeon D-1521 Quad-Core
  Clock Speed	Base: 2.4GHz
  Total Installed Memory	8 GB ECC DDR4
  User-Replaceable Memory	1 x 8 GB
  Total Memory Slots	4 x DIMM
  Maximum Memory Capacity	64 GB

  Supported Protocols	AFP CIFS CalDAV FTP NFS OpenVPN PPTP SNMP SSH Telnet WebDAV iSCSI

  OS Compatibility	Windows 7 Windows 8.1 Windows 10 macOS 10.11 or Later
  File System Formats Supported	External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: Btrfs, EXT4
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Brazilian Portuguese Czech Danish Dutch English French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish

  Power Consumption	142.76 W (Typical) 55.05 W (Standby)
  Power Source	Internal Power Supply
  PSU Wattage	1 x 500 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  VPN Server Connections	30

  Operating Temperature	41 to 95°F / 5 to 35°C
  Operating Humidity	5 to 95%
  Storage Temperature	-4 to 140°F / -20 to 60°C

  Cooling	4 x 80 mm Fans
  Noise Level	50.2 dBA
  Dimensions	3.5 x 16.9 x 27.2" / 88.0 x 430.5 x 692.0 mm
  Weight	32.0 lb / 14.5 kg

  Box Dimensions (LxWxH)	33.5 x 24.0 x 9.0"

• 12 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	12.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Mean Time Between Failures (MTBF)	1000000.00 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	0.8 W (Standby) 0.8 W (Idle)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"
