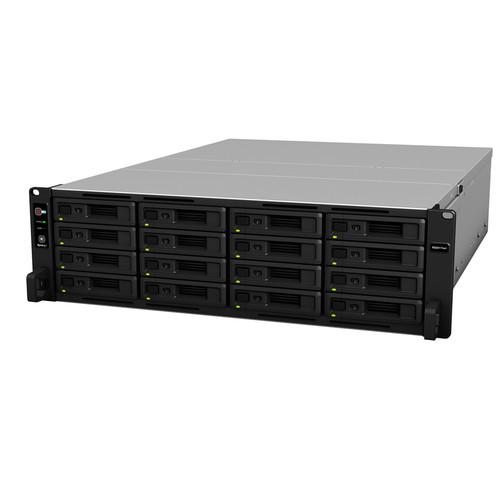

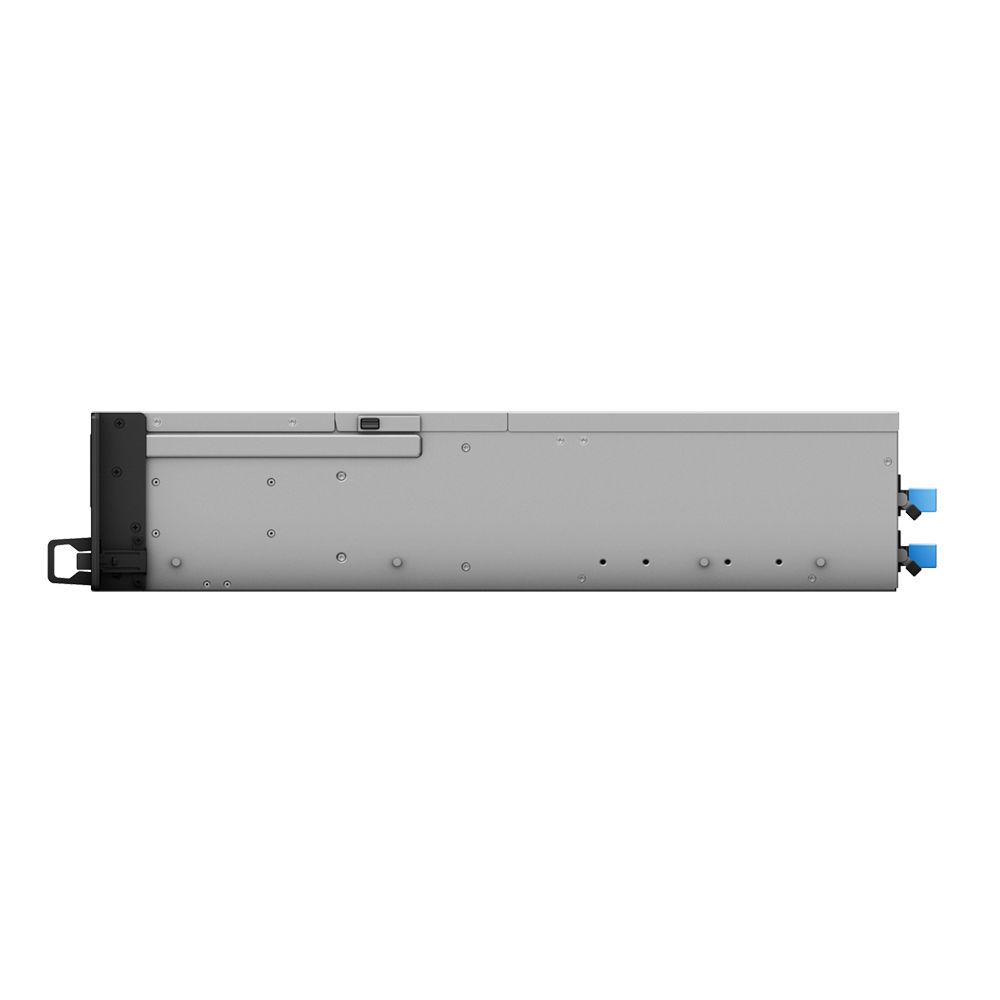

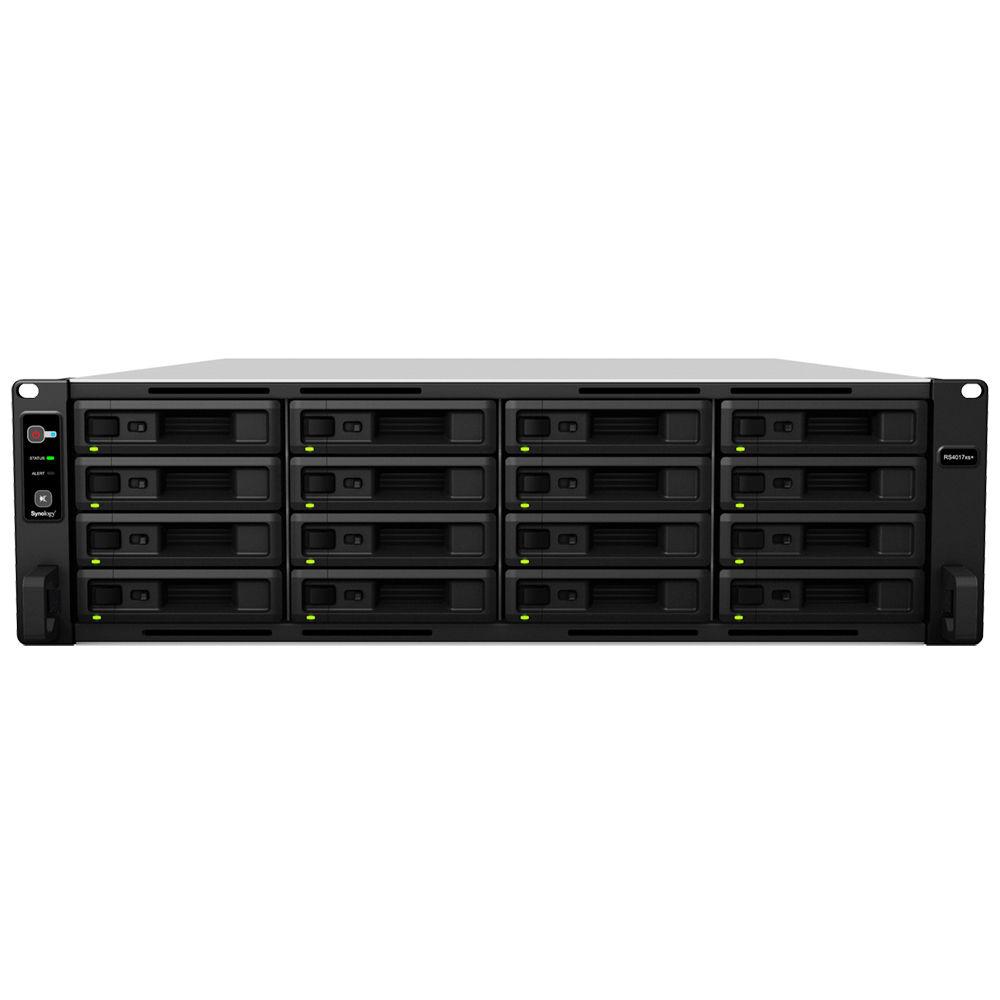

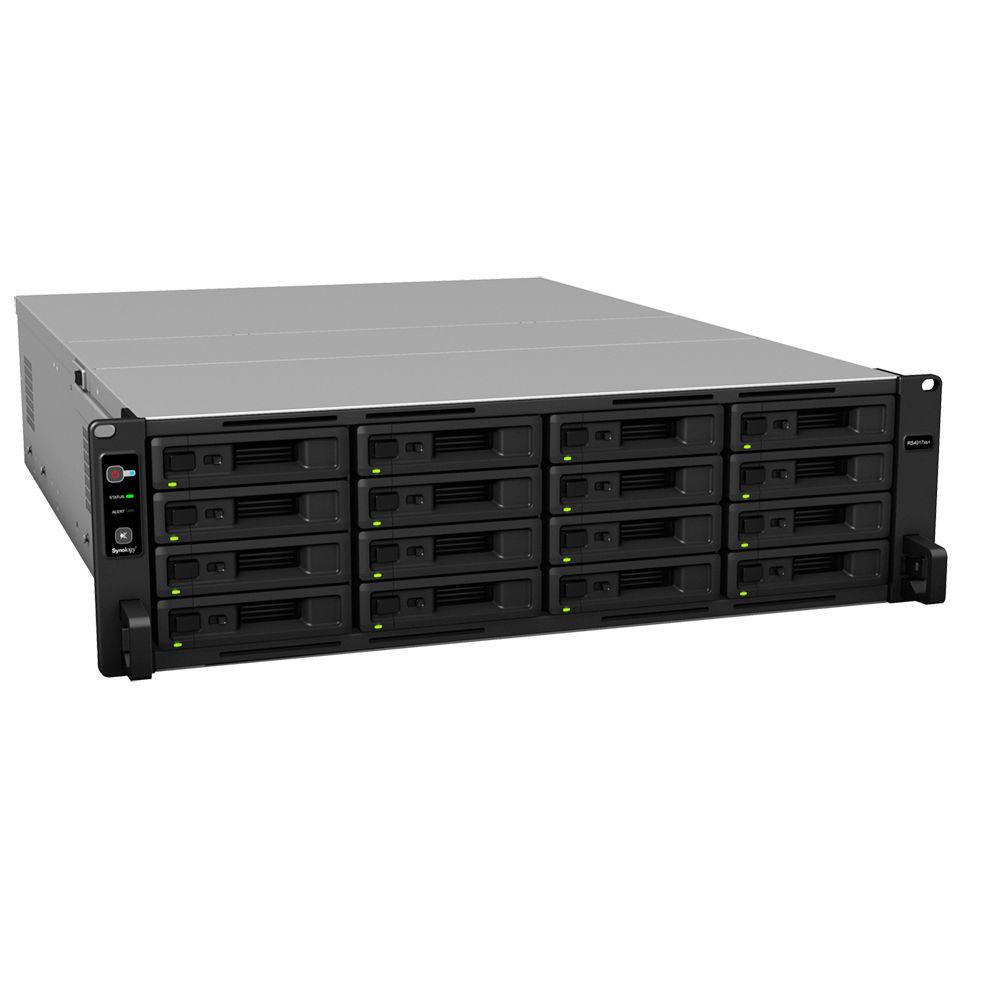

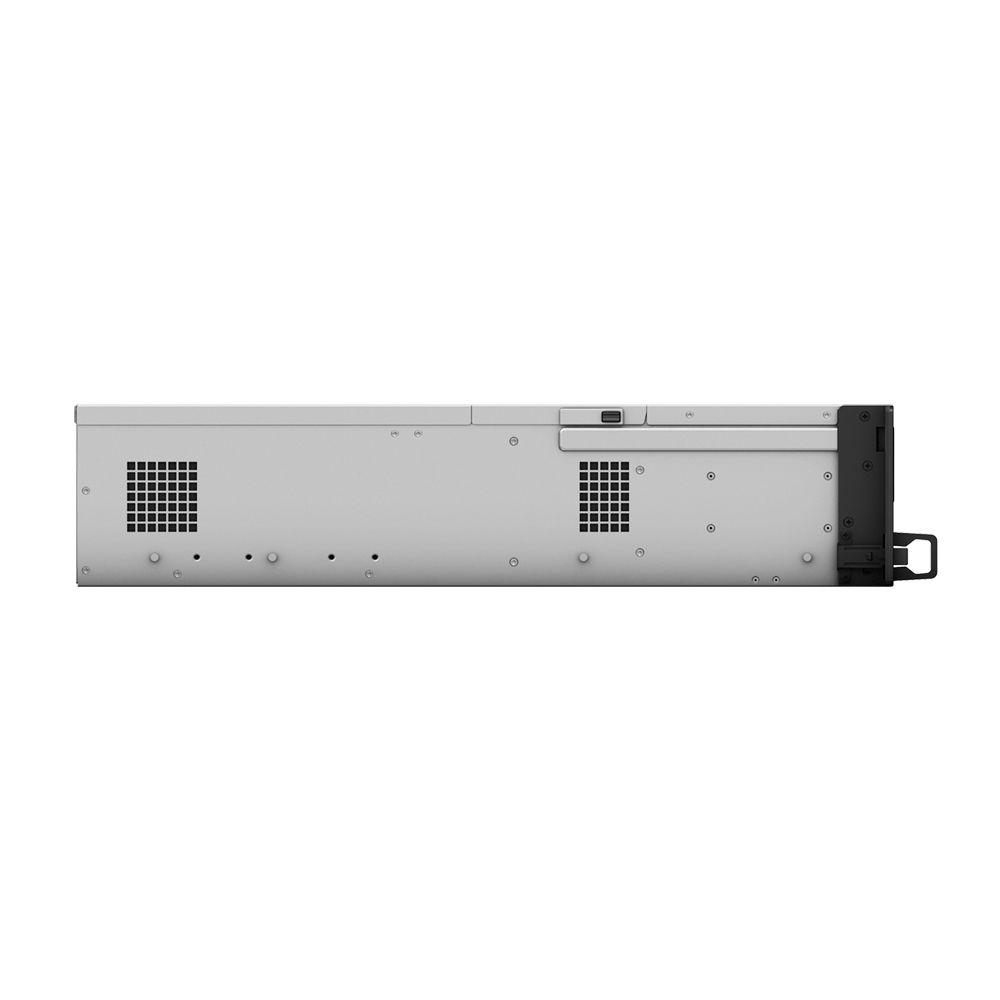

Product description The Synology RackStation RS4017xs+ 16-Bay NAS Enclosure features four Gigabit Ethernet and two 10GbE ports as well as sixteen storage bays, so you can provide a custom storage solution for network-connected users. The sixteen bays support SATA-based 2.5" SSDs as well as 2.5" and 3.5" HDDs. Once user-supplied drives are installed into the bays, you can configure them in a RAID 0, 1, 5, 6, 10, JBOD, or Basic mode to preserve data and increase the drives' read and write speeds. Aside from storage capabilities, the RS4017xs+ leverages a 2.1 GHz Intel Xeon D-1541 octa-core processor and 8GB of DDR4 ECC memory to quickly manage and deliver data.
The RackStation RS4017xs+ comes with two expansion port as well as two USB 3.0 ports for attaching optional storage expansion units, thumb drives, and other devices. For future upgrades, the RS4017xs+ can hold up to 64GB of RAM and additional 10GbE network interfaces cards installed in its two PCIe 3.0 x8 slots. To cool all the internal components, three onboard 80mm fans spin at various speeds to help dissipate the internal heat. In addition, the NAS features a 3 RU rack-mountable design and runs on two redundant 800W power supplies. - Performance
- The RS4017xs+ is built as a reliable storage solution with fast performance at over 690,000 sequential read IOPS and 4900 MB/s sequential read throughputs. DDR4 ECC RDIMM and 10GbE connectivity provide data accuracy and performance for a mission-critical environment.
- Scalability and Reliability
- The RS4017xs+ provides flexible storage scalability with optional RX1217 or RX1217RP expansion units. You can connect up to 2 expansion units to the RS4017xs+, allowing a business to start small and scale big.
- Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Storage Efficiency
- The Btrfs file system introduces advanced storage technologies to meet the management needs of modern large scale businesses: flexible shared folder/user quota system, snapshot replication, file or folder level data restoration, and automatic file self-healing detection and recovery.
- Safeguarding Data
- The RS4017xs+ comes with a high-availability feature that helps ensure seamless transition between clustered servers in the event of a server failure with minimal impact to applications. To maximize storage space, Hyper Backup is available for backing up data in multiple versions with block-level incremental backup and cross-version deduplication. Moreover, the RS4017xs+ includes Cloud Station suite, providing automatic cross-platform data synchronization with file version control.
- Additional Features
-
- CMS - Manage multiple Synology NAS servers simultaneously through a centralized interface to increase administrative efficiency and flexibility
- MailPlus - Set up a secure, reliable, and private mail server with a stylish and intuitive user interface
- Collaboration Suite - Synology Office, Calendar, and Chat for private communication and user-friendly content organization
UPC: 846504002450 In the Box Synology RackStation RS4017xs+ 16-Bay NAS Enclosure Accessory Pack 2 x Power Cords Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS4017xs 16-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RackStation RS4017xs+ Specs | | | Number of Bays | 16 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 4 x RJ45 (Gigabit Ethernet)
2 x RJ45 (10GbE)
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x Infiniband | | Compatible Drive Interface | SATA | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Hot-Swap Support | Yes | | Expansion Slots | 2 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Xeon D-1541 8-Core | | Clock Speed | Base: 2.1GHz / Maximum Boost: 2.7 GHz | | Total Installed Memory | 8 GB ECC DDR4 | | User-Replaceable Memory | 1 x 8 GB | | Total Memory Slots | 4 x DIMM | | Maximum Memory Capacity | 64 GB | | | | iSCSI LUN | 512 | | iSCSI Target | 128 | | Max Volume Number | 1024 | | | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | | | Power Consumption | 136.4 W (Typical)
69.2 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 800 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | VPN Server Connections | 30 | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 3 x 80 mm Fans | | Noise Level | 44.7 dBA | | Dimensions | 5.2 x 19.0 x 25.8" / 132.3 x 482.0 x 656.5 mm | | Weight | 38.4 lb / 17.4 kg | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 34.65 x 24.5 x 12.0" |
