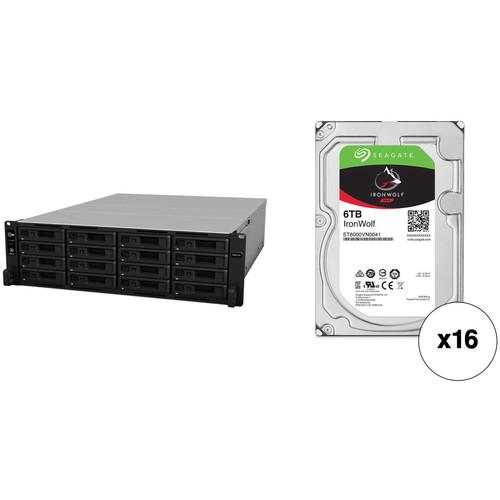

User Manual for Synology RackStation RS4017xs 96TB 16-Bay NAS Enclosure Kit with Seagate NAS Drives Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS4017xs 96TB 16-Bay NAS
- Product category: Network Attached Storage Drives Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Network Attached Storage Drives
|
User manual for the Synology RackStation RS4017xs 96TB 16-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|
Product description This Kit combines the Synology RackStation RS4017xs+ 16-Bay NAS Enclosure with sixteen Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 96TB. - Synology RackStation RS4017xs+ 16-Bay NAS Enclosure The Synology RackStation RS4017xs+ 16-Bay NAS Enclosure features four Gigabit Ethernet and two 10GbE ports as well as sixteen storage bays, so you can provide a custom storage solution for network-connected users. The sixteen bays support SATA-based 2.5" SSDs as well as 2.5" and 3.5" HDDs. Once user-supplied drives are installed into the bays, you can configure them in a RAID 0, 1, 5, 6, 10, JBOD, or Basic mode to preserve data and increase the drives' read and write speeds. Aside from storage capabilities, the RS4017xs+ leverages a 2.1 GHz Intel Xeon D-1541 octa-core processor and 8GB of DDR4 ECC memory to quickly manage and deliver data.
The RackStation RS4017xs+ comes with two expansion port as well as two USB 3.0 ports for attaching optional storage expansion units, thumb drives, and other devices. For future upgrades, the RS4017xs+ can hold up to 64GB of RAM and additional 10GbE network interfaces cards installed in its two PCIe 3.0 x8 slots. To cool all the internal components, three onboard 80mm fans spin at various speeds to help dissipate the internal heat. In addition, the NAS features a 3 RU rack-mountable design and runs on two redundant 800W power supplies. - Performance
- The RS4017xs+ is built as a reliable storage solution with fast performance at over 690,000 sequential read IOPS and 4900 MB/s sequential read throughputs. DDR4 ECC RDIMM and 10GbE connectivity provide data accuracy and performance for a mission-critical environment.
- Scalability and Reliability
- The RS4017xs+ provides flexible storage scalability with optional RX1217 or RX1217RP expansion units. You can connect up to 2 expansion units to the RS4017xs+, allowing a business to start small and scale big.
- Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Storage Efficiency
- The Btrfs file system introduces advanced storage technologies to meet the management needs of modern large scale businesses: flexible shared folder/user quota system, snapshot replication, file or folder level data restoration, and automatic file self-healing detection and recovery.
- Safeguarding Data
- The RS4017xs+ comes with a high-availability feature that helps ensure seamless transition between clustered servers in the event of a server failure with minimal impact to applications. To maximize storage space, Hyper Backup is available for backing up data in multiple versions with block-level incremental backup and cross-version deduplication. Moreover, the RS4017xs+ includes Cloud Station suite, providing automatic cross-platform data synchronization with file version control.
- Additional Features
-
- CMS - Manage multiple Synology NAS servers simultaneously through a centralized interface to increase administrative efficiency and flexibility
- MailPlus - Set up a secure, reliable, and private mail server with a stylish and intuitive user interface
- Collaboration Suite - Synology Office, Calendar, and Chat for private communication and user-friendly content organization
UPC: 846504002450 - 16 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 128MB cache, providing users with an ample storage capacity and data transfer speeds of up to 195 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 128MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117545 In the Box - RackStation RS4017xs+ 16-Bay NAS Enclosure eryytuwbxevfyzbddaswdbzswssdxteqtdrs
- Accessory Pack
- 2 x Power Cords
- Limited 5-Year Warranty
- 16 x Seagate - 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS4017xs 96TB 16-Bay NAS Enclosure Kit with Seagate NAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Synology RackStation RS4017xs+ 16-Bay NAS Enclosure
| | | Number of Bays | 16 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 4 x RJ45 (Gigabit Ethernet)
2 x RJ45 (10GbE)
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x Infiniband | | Compatible Drive Interface | SATA | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Hot-Swap Support | Yes | | Expansion Slots | 2 x PCIe 3.0 x8 | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Xeon D-1541 8-Core | | Clock Speed | Base: 2.1GHz / Maximum Boost: 2.7 GHz | | Total Installed Memory | 8 GB ECC DDR4 | | User-Replaceable Memory | 1 x 8 GB | | Total Memory Slots | 4 x DIMM | | Maximum Memory Capacity | 64 GB | | | | iSCSI LUN | 512 | | iSCSI Target | 128 | | Max Volume Number | 1024 | | | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | | | Power Consumption | 136.4 W (Typical)
69.2 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 800 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | VPN Server Connections | 30 | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Cooling | 3 x 80 mm Fans | | Noise Level | 44.7 dBA | | Dimensions | 5.2 x 19.0 x 25.8" / 132.3 x 482.0 x 656.5 mm | | Weight | 38.4 lb / 17.4 kg | | | | Box Dimensions (LxWxH) | 34.65 x 24.5 x 12.0" | - 16 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 6.0 TB | | Cache Memory | 128 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 195 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.7 dB (Idle)
2.8 dB (Active) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 9.0 W (Active)
7.2 W (Idle)
0.6 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.7 lb / 780.2 g | | | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.4" |
