User Manual for Synology RackStation RS818 4-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Synology RackStation RS818 4-Bay NAS Server
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology RackStation RS818 4-Bay NAS Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

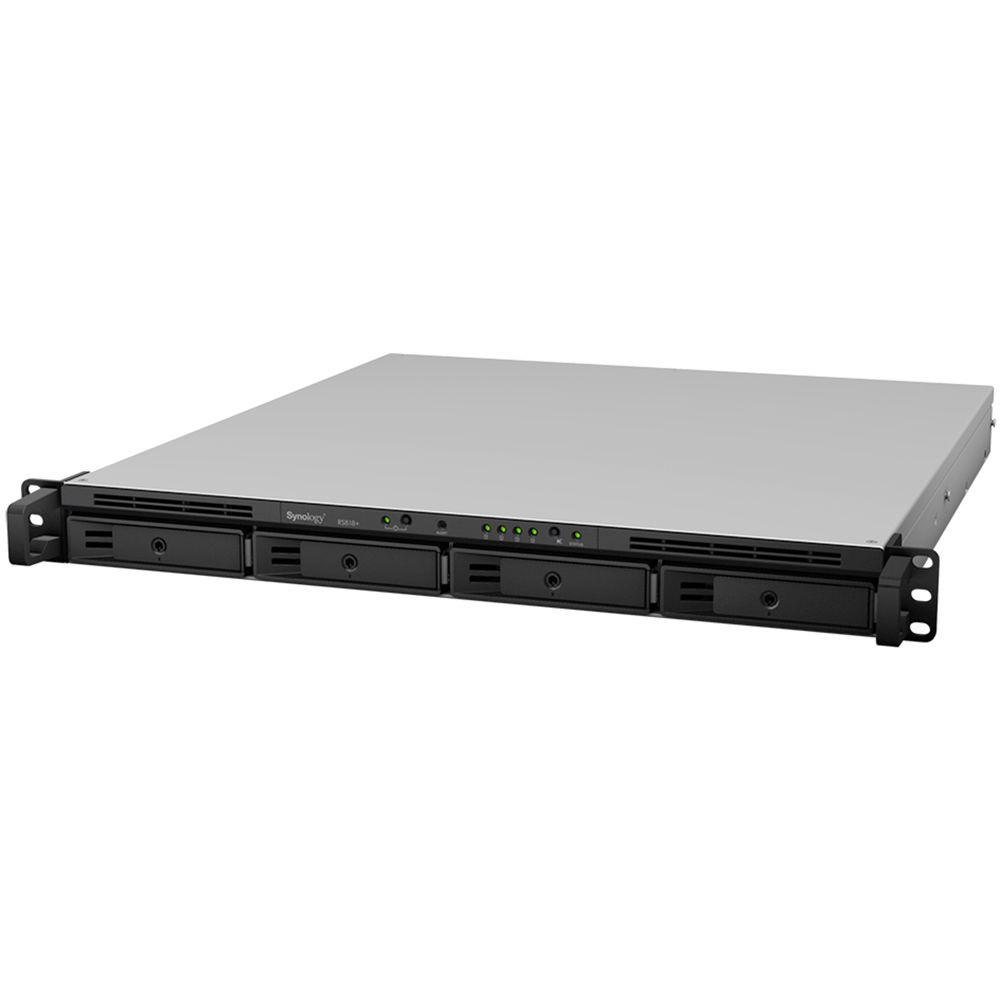

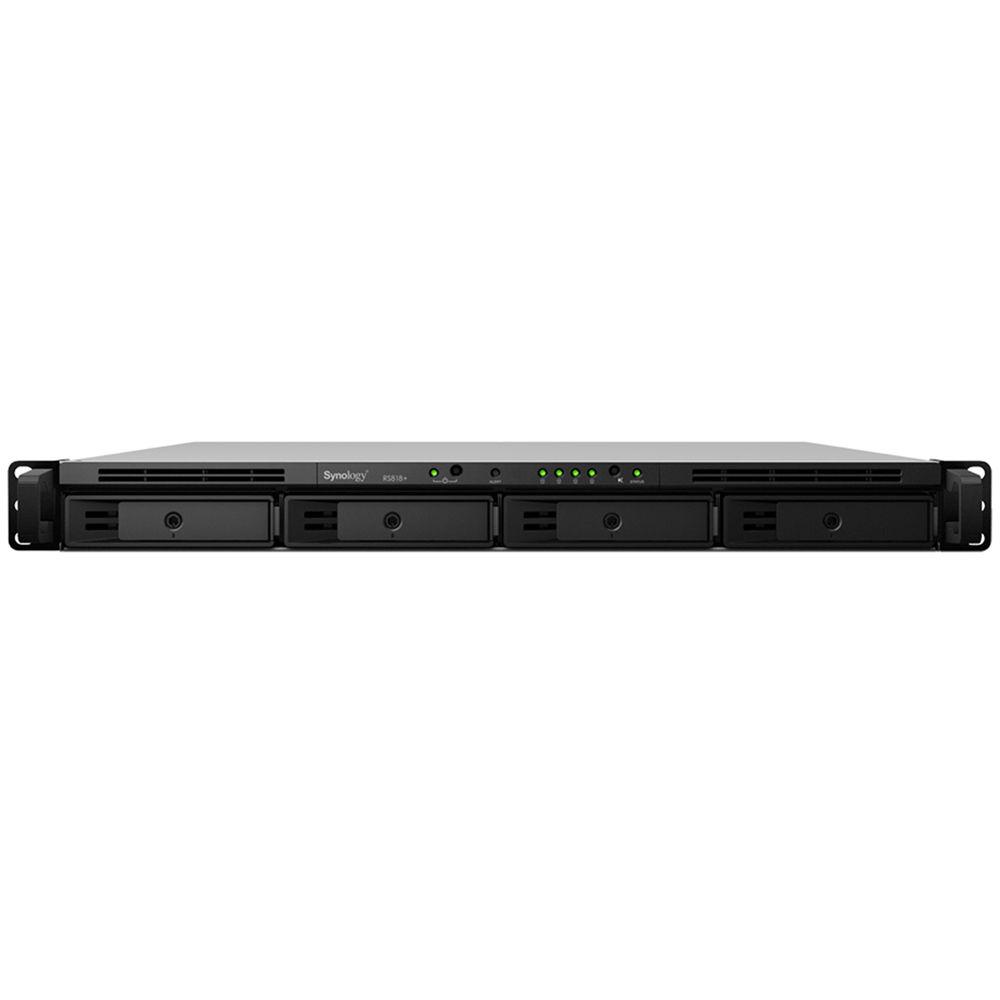

Product description The RackStation RS818+ 4-Bay NAS Server from Synology is a reliable, high performance 1 RU network attached storage solution for SMB environments seeking strong performance and scalable storage for sharing files across different platforms, centralizing data backups, and protecting critical assets. This unit has four drive bays, each of which natively supports 3.5" SATA hard drives, as well as and 2.5" SATA hard drives and SSDs with sequential read speeds of over 1099 MB/s. Should users need to expand the overall capacity of their RS818+, the optional RX418 expansion unit offers an additional four drive bays that are identical to those offered by the RS818+.
The RackStation RS818+ is powered by a 2.4 GHz Intel Atom C2538 Quad-Core processor, which will allow you to run multiple functions simultaneously. The built-in 2GB of DDR3 RAM will allow quick access to frequently-used files and programs and may also be upgraded to a total of 16GB by installing an 8GB module into the available memory slot. Also featured are two USB 3.0 Type-A ports and one eSATA port, which allow it to be connected to your Windows or Mac system, or the RX418 expansion unit. Network connectivity is achieved via the four Gigabit Ethernet ports with failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation, powered by four LAN ports, helps to increase connection speeds beyond the limits of a single network port or cable.
The RackStation RS818+ runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The RackStation RS818+ is engineered to be energy efficient. Not only does it offer two 40 x 40mm fans to help keep the system running cool, its noise dampening design makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The RackStation RS818+ operates on 100-240 VAC at 50/60 Hz and includes an accessory pack and an AC power cord. General Features - Powerful & Scalable Storage Solution
- Synology RackStation RS818+ comes with a 2.4 GHz Intel Atom C2538 Quad-Core processor with an AES-NI hardware encryption engine, four Gigabit LAN ports, and support for an optional 10GbE network adapter for bandwidth-intensive environments. It provides both strong performance and a scalable storage solution for sharing files across different platforms, centralizing data backups, and protecting critical assets.
- Speedier Performance
- The RS818+ allows network and memory upgrades to help boost system performance, with an optional 10GbE network adapter for bandwidth-intensive environments and up to 16GB (2 x 8GB) of dual-channel DDR3 RAM.
- High Service Reliability
- The RS818+ comes with four Gigabit LAN ports that support Link Aggregation and failover. Synology High Availability support helps provide a reliable active/passive serve cluster, keeping data and services online.
- Btrfs File System
- The Btrfs file system introduces storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder and User Quota System
Provides comprehensive quota control on all user accounts and shared folders.
Snapshot Replication
Provides schedulable and storage capacity-saving data protection with 1024 shared folder backups and 65,000 system-wide snapshots.
File- or Folder-Level Data Restoration
Helps make data recovery user-friendly and flexible.
Automatic File Self-Healing
Detects and recovers corrupted files without user intervention. - Real-Time Private Cloud Collaboration
- Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
- Fully Certified Storage Virtualization Solutions
- Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with a user-friendly management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
- Powered by Synology DSM
- Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Windows, Mac, and mobile devices.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
DSM UI
Synology's operating system has an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.
All-in-One Server
Save additional investment by integrating various network services, web/mail services, and management applications into your NAS. UPC: 846504002917 In the Box Synology RackStation RS818+ 4-Bay NAS Server Accessory Pack AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RackStation RS818 4-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RackStation RS818+ Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 48 TB
96 TB (with Expansion) | | Connections | 1 x eSATA
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))

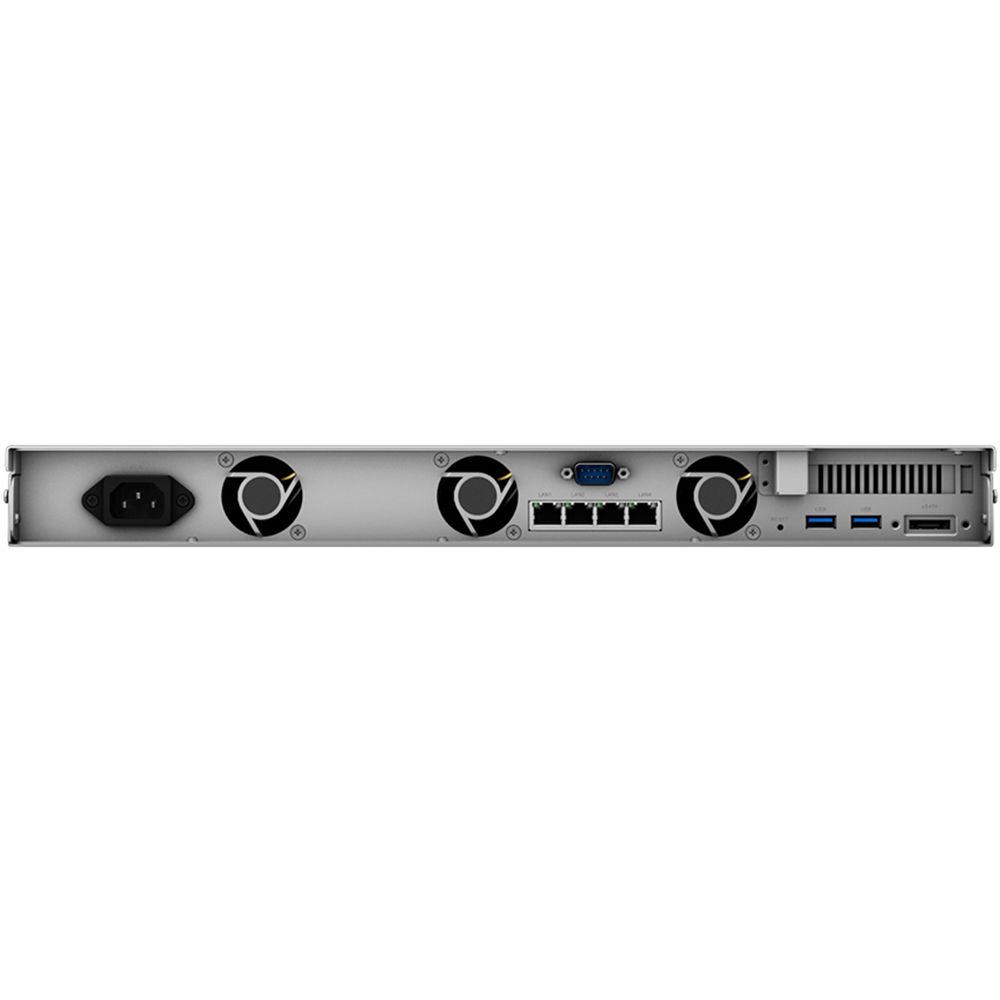

4 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA | | Hot-Swap Support | Yes | | Expansion Slots | 1 x PCIe 2.0 x8 (x4 mode) | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Atom C2538 Quad-Core | | Clock Speed | Base: 2.4GHz | | Total Installed Memory | 2 GB DDR3 | | User-Replaceable Memory | 1 x 2 GB | | Total Memory Slots | 2 | | Maximum Memory Capacity | 16 GB | | | | Supported Protocols | AFP
CIFS
CalDAV
FTP
NFS
OpenVPN
PPTP
SNMP
SSH
Telnet
WebDAV
iSCSI | | | | OS Compatibility | Windows 7
Windows 8.1
Windows 10
macOS 10.11 or Later | | File System Formats Supported | External: Btrfs, EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: Btrfs, EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 45.28 W (Typical)
20.81 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cooling | 2 x 40 mm Fans | | Noise Level | 28.5 dBA | | Dimensions | 1.7 x 18.9 x 19.4" / 44.0 x 480.0 x 492.6 mm | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 21.2 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 8.0" |
